Lab Tabletop Slot Die Coater for High Precision Thin Film Coating

The TMAX-TMJ-180C desktop continuous coating machine is a small roll to rolling coating machine for lab research, it is assembled by high high precision coating device, suitable for institutions, university and factory pilot scale battery research work.

Laboratory Desktop Precision Flat Slot Die Coater W/ Heating Vacuum Chunk

The TMAX-TMJ-180C desktop continuous coating machine is a small roll to rolling coating machine for lab research, it is assembled by high high precision coating device, suitable for institutions, university and factory pilot scale battery research work.

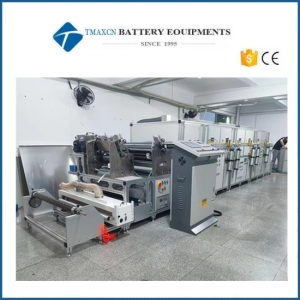

Roll to Roll Automatic Coating Machine for Battery Production Line

Roll to Roll Automatic Coating Machine for Battery Production Line This is a automatic and faster roll to roll coating system for battery electrode with 15m/minute max coating speed . It is perfect for prototypes of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience.  Model Type Slot die coater Reverse comma coater Separator/Microconcave coating machine Industrial adaptability Lithium battery electrode coating Lithium battery separator coating Coating method Continuous coating/gap coating Continuous coating Rewinding and unwinding configuration Single-axis/dual-axis manual roll change, automatic roll change Single-axis/dual-axis manual roll change, dual-axis automatic roll change Single-axis/double-axis manual change Substrate processing / Preheat oven / ironing roller (surface leveling) Heating function Electric/steam/oil heating Drying oven configuration Active roller + suspension oven, length optional 1. Active climbing + passive passing roller, length optional 2. Active climbing + passive passing roller + active downhill, length optional 3. Active climbing + floating oven, length optional Curved active roller, length optional Mechanical speed Coating speed +10% Coating speed 15-30m/min(it depends on model type) 1-15m/min(it depends on model type) 50m/min 80m/min 100m/min(it depends on model type) Coating width 500mm/650mm 500mm/600mm/650mm 700mm/900mm/1200mm Coating thickness 50-150um 60-150um 1-5um Thickness accuracy ±0.5um(when coating thickness >1um) Advantages 1.The close cooperation between the feeding system and the control system realizes stable and high-precision coating with a weight error of plus or minus 1%; 2.Stable structure, suitable for mass production; 3.Easy to operate, touch screen interface design; 4.Online area density detection system (optional), online CCD visual inspection system (optional), bad section identification system (optional) 1.The installation structure of steel roller, rubber roller and scraper is simple, which is convenient for maintenance; 2.The control system is convenient and simple to operate, and the touch screen interface is simple and easy to understand; 3.With head and tail thickness adjustment function, automatic closed-loop adjustment of the blade gap, closed-loop tension control system coating length measurement function (optional), front and back alignment system, oven over-temperature protection system, online defect inspection system (optional) 1.The control system is convenient and simple to operate, and the touch screen interface is simple and easy to understand; 2.Swing roller structure + closed-loop tension control system to achieve low tension operation; 3.Treat the unevenness of the substrate through the preheating oven to improve the scope of equipment use; 4.The closed feeding cavity developed and produced by our company has uniform scraping and easy cleaning and replacement.

Intermittent Slot Die Coating Coater Machine With Drying Oven And Winding&Unwinding System

Intermittent Slot Die Coating Coater Machine With Drying Oven And Winding&Unwinding System Equipment Specifications 1. Thickness of substrate: aluminum foil: 0.010--0.030mm copper foil: 0.006-0.030mm 2. Width of substrate: aluminum foil: 100-320mm copper foil: 100-320mm 3. Maximum coating wet film thickness: 80--400µm (under the conditions of paste viscosity) 4. The maximum width of coating: 360mm, 5. Maximum width of coating roll surface (steel roll): 450mm 6. Mechanical transport speed: 0.5—7M/min (maximum speed) 7. Coating speed: 0.1-1.0M/min is the best (depending on the drying conditions, the speed is different depending on the slurry) (the supercapacitor coating is faster, usually it can be set to about 1M/min). 8. Oven length: 1 section of oven × 1.5 m/section = 1.5 m Equipment performance 1. Coating method: extrusion coating Intermittent coating distance: 5-8000mm±1mm (adjustable according to battery specifications). 2. Coating accuracy: 2.1. Accuracy error of dry thickness: single-sided positive electrode: ±2.5µm negative electrode ±2.5µm (4-5 points for cross-section measurement, and 100mm for vertical section measurement distance). 2.2. Alignment error of front and back coating: ≤±1.0mm 2.3. Average length error: ≤±1.0mm 2.4. Average width error: ≤±1.0mm Note: The above indexes 1 and 2 should work best when the slurry conditions (viscosity, particle size, uniformity, etc.) match the settings of various parameters of the equipment. 3. Core inner diameter: 3 inches with air shaft 4. Tension control: Swing arm tension PID control 5. Correction controller accuracy: ±0.01mm; Correction accuracy: ±1mm 6. The operator operates the coating mechanism from the front 7. Drying form: (1) Hot air drying: hot air circulation (upward air supply); or upper and lower air supply; (2) Heating method: electric heating 5.0KW×1 section=5.0KW; (3) heater; 8. Oven length: 1 section of oven × 1.0 m/section = 1.0 m 9. Oven material: both inside and outside are made of stainless steel 10. Oven temperature: room temperature--150℃ adjustable, temperature control accuracy <±5℃; Process flow The electrode sheet base material placed on the unwinding device enters the swing arm tension system after automatic deviation correction. After adjusting the unwinding tension, it enters the coating head, and the electrode slurry is coated according to the setting procedure of the coating system. The coated wet electrode sheet enters the oven for drying by hot air. The tension of the dried electrode sheet is adjusted by the tension system, and the winding speed is controlled at the same time, so that it is synchronized with the coating speed. The electrode sheet is automatically corrected by the correction system to keep it in the center position, and is wound by the winding device. Device 1. Unwinding mechanism (with automatic deviation correction device) The device is composed of servo unwinding, unwinding shaft with tension control, automatic deviation correction system, etc. The coil is pulled out and enters the swing arm tension device after automatic deviation correction. The device transmits the tension change during operation to the tension controller through the sensor, so as to achieve constant tension. 2. Swing arm tension mechanism The mechanism consists of rollers, position sensors, etc. The swing arm tension system absorbs the temporary changes in the storage space due to acceleration, deceleration, unwinding and starting the reel, and space fluctuations during the coating interval, so that the impact on the coating is minimized. The tension of the substrate is adjusted by the position of the swing arm, so that the substrate maintains a constant tension during the coating process, and the unwinding speed and the coating speed are controlled to keep synchronization. 3. Coating mechanism This machine is controlled by PLC and is equipped with high-tech automation equipment of precision machinery and opto-mechanical integration. It consists of extrusion die, coating roller, drive motor, optical fiber sensor, precision bearing and high-performance pneumatic components. Among them, the drive motor, reducer, pneumatic control, and the bearing of the coating roller are precision bearings. The man-machine interface, PLC, etc. constitute an intermittent coating system, and the coating program is designed according to the user's process size. The coating method has two working modes: continuous coating and intermittent coating. For intermittent coating, the coating length and intermittent spacing of the first side and the back side can be set respectively, and two coating lengths can be set separately for each side. and intermittent distance to meet the special requirements of users. The set parameters can be continuously adjusted according to the specifications of the battery (single pulse) with a resolution accuracy of 0.01mm. After the back coating is automatically positioned by the optical fiber sensor tracking the first surface, the coating is carried out according to the parameters set on the back. Applicator roll and back roll speed indicators are set and displayed on the touch screen. 4. Drying system The drying system consists of heater, fan, exhaust duct and air hole, insulation box, inspection door, etc. The insulation box has a 1.0-meter section, a total of one section. The inner and outer parts of the box are made of stainless steel poles. The box body is a thermal insulation structure to prevent heat loss and safe operation. After the coated wet pole pieces enter the drying box, the box adopts the upper air drying method for efficient drying For drying, the dry air is sent by the fan to be heated by the hot air heater, and then sent to the inside of the oven, and is evenly blown to the wet coating by the air hole, and the dried air is discharged to the outdoors by the exhaust fan. 5. Take-up mechanism This device is composed of oven outlet, swing arm tension mechanism, belt drive device and winding tension sensor system. The tempo stays in sync. 6. Rewinding mechanism The device consists of a servo motor, a winding shaft, and an automatic deviation correction system. During the winding process, the device can make the winding shaft track the position of the pole piece, so that the edge of the winding pole piece can be kept neat. 7. Coating and drying automatic control system (1) Coating control system: This system consists of PLC, servo motor, touch screen and optical fiber sensor. As a human-machine interface, the touch screen has a friendly picture, intuitive display and convenient operation. During the coating process of this machine, the line speed of the coating roller, the coating speed and the number of coated sheets are automatically displayed on the touch screen, and the parameters set can be finely revised at any time according to the requirements of the production process. (2) Temperature and control: This system is composed of temperature regulator, thermocouple, heater, relay, etc. It measures and automatically controls the internal temperature of each section of drying oven Main configuration The machine control system and structure system is a highly integrated closed-loop control system, the main configuration is as follows: No. Name Details Content 1 Rack structure   Integrated vertical plate structure, embracing processing, plus precise positioning pins to ensure position accuracy and stability 2 Unwinding part Correction form Photoelectric edge patrol, motor drive, overall movement correction     Correction stroke ±50mm     Unwinding form Automatic unwinding of motor speed reducer     Roll up method 3" air shaft     Maximum roll diameter φ300 3 Coating roller Size φ210*360     Material carbon steel, chrome plated     Drive mode Servo motor + reducer 4 Coating mode Extrusion head Effective width 300mm, material: stainless steel plated carbide     Extrusion head position control system Cylinder push, mechanical adjustment, precise adjustment of the mechanism     Extrusion head membrane tibial pressure High precision pressure gauge 0-1MPa 5 Feeding system Screw pump Bingshen pump HEISHIN servo control feeding     Transfer tank 5L, constant temperature control, liquid level control, pneumatic stirring, filter     Coating valve Pneumatic single valve     Pipeline system Sanitary piping system, no dead ends 6 Tension Control System Structure type Swing arm tension, low friction cylinder 7 Guide Roller (Over Roller) Control mode Speed PID control     Tension (N) 30-80N       Aluminum alloy roll, width 340mm, hard anodized 8 Operation panel Touch screen Operate according to the function interface 9 Operating platform Button Some functions are the same as button operation   1. Automatic control of front and rear tension: 1.1 Fully integrated Panasonic system; 1.2 Unwinding mechanism; 1.3 Rewinding device; 1.4 Motor unwinding. 2. Front and rear automatic correction system: 2.1 Correction controller: Aibo correction system; 2.2 Detection head: photoelectric detection 3. Main control system: 3.1 Operation interface: touch screen; 3.2 Coating shaft and steel roller: Yaskawa servo motor; 3.3 Extrusion die: driven by cylinder; 3.4 Program controller: Panasonic PLC and control module; 3.5 Heating tube: domestic; 3.6 Temperature control probe: thermocouple. 4. Oven: 4.1 Material inside and outside the box: stainless steel: (SS304 stainless steel) 4.2 Box insulation: the thickness of the insulation layer is 50mm; 4.3 Fan: domestic; 4.4 Air duct: stainless steel; 4.5 Rack: carbon steel parts + paint 5. Machine head and unwinding integrated parts Machine tail and receiving parts 5.1 Worktable: nickel-plated surface; 5.2 Large bearing seat: nickel-plated surface; 5.3 Coating roller: carbon steel with chrome plating on the surface; 5.4 Rubber roller: corrosion-resistant rubber; 5.5 Aluminum roller: aluminum alloy (surface anodized hard anodized) 5.6 Inflatable shaft: chrome plating on the surface

Large Lithium Battery Electrode Slot Die Coating Coater Machine With 1m Length Drying Oven

Large Lithium Battery Electrode Slot Die Coating Coater Machine With 1m Length Drying Oven Equipment Specifications 1. Thickness of substrate: aluminum foil: 0.010--0.030mm copper foil: 0.006-0.030mm 2. Width of substrate: aluminum foil: 100-320mm copper foil: 100-320mm 3. Maximum coating wet film thickness: 80--400µm (under the conditions of paste viscosity) 4. The maximum width of coating: 300mm, 5. Maximum width of coating roll surface (steel roll): 360mm 6. Mechanical transport speed: 0.5—7M/min (maximum speed) 7. Coating speed: 0.1-1.0M/min is the best (depending on the drying conditions, the speed is different depending on the slurry) (the supercapacitor coating is faster, usually it can be set to about 1M/min). 8. Oven length: 1 section of oven × 1m/section = 1m Equipment performance 1. Coating method: slot die coating Intermittent coating distance: 5-8000mm±1mm (adjustable according to battery specifications). 2. Coating accuracy: 2.1. Accuracy error of dry thickness: single-sided positive electrode: ±2.5µm negative electrode ±2.5µm (4-5 points for cross-section measurement, and 100mm for vertical section measurement distance). 2.2. Alignment error of front and back coating: ≤±1.0mm 2.3. Average length error: ≤±1.0mm 2.4. Average width error: ≤±1.0mm Note: The above indexes 1 and 2 should work best when the slurry conditions (viscosity, particle size, uniformity, etc.) match the settings of various parameters of the equipment. 3. Core inner diameter: 3 inches with air shaft 4. Tension control: Swing arm tension PID control 5. Correction controller accuracy: ±0.01mm; Correction accuracy: ±1mm 6. The operator operates the coating mechanism from the front 7. Drying form: (1) Hot air drying: hot air circulation (upward air supply); or upper and lower air supply; (2) Heating method: electric heating 5.0KW×1 section=5.0KW; (3) heater; 8. Oven length: 1 section of oven × 1.0 m/section = 1.0 m 9. Oven material: both inside and outside are made of stainless steel 10. Oven temperature: room temperature--150℃ adjustable, temperature control accuracy <±5℃; Process flow The electrode sheet base material placed on the unwinding device enters the swing arm tension system after automatic deviation correction. After adjusting the unwinding tension, it enters the coating head, and the electrode slurry is coated according to the setting procedure of the coating system. The coated wet electrode sheet enters the oven for drying by hot air. The tension of the dried electrode sheet is adjusted by the tension system, and the winding speed is controlled at the same time, so that it is synchronized with the coating speed. The electrode sheet is automatically corrected by the correction system to keep it in the center position, and is wound by the winding device. Device 1. Unwinding mechanism (with automatic deviation correction device) The device is composed of servo unwinding, unwinding shaft with tension control, automatic deviation correction system, etc. The coil is pulled out and enters the swing arm tension device after automatic deviation correction. The device transmits the tension change during operation to the tension controller through the sensor, so as to achieve constant tension. 2. Swing arm tension mechanism The mechanism consists of rollers, position sensors, etc. The swing arm tension system absorbs the temporary changes in the storage space due to acceleration, deceleration, unwinding and starting the reel, and space fluctuations during the coating interval, so that the impact on the coating is minimized. The tension of the substrate is adjusted by the position of the swing arm, so that the substrate maintains a constant tension during the coating process, and the unwinding speed and the coating speed are controlled to keep synchronization. 3. Coating mechanism This machine is controlled by PLC and is equipped with high-tech automation equipment of precision machinery and opto-mechanical integration. It consists of extrusion die, coating roller, drive motor, optical fiber sensor, precision bearing and high-performance pneumatic components. Among them, the drive motor, reducer, pneumatic control, and the bearing of the coating roller are precision bearings. The man-machine interface, PLC, etc. constitute an intermittent coating system, and the coating program is designed according to the user's process size. The coating method has two working modes: continuous coating and intermittent coating. For intermittent coating, the coating length and intermittent spacing of the first side and the back side can be set respectively, and two coating lengths can be set separately for each side. and intermittent distance to meet the special requirements of users. The set parameters can be continuously adjusted according to the specifications of the battery (single pulse) with a resolution accuracy of 0.01mm. After the back coating is automatically positioned by the optical fiber sensor tracking the first surface, the coating is carried out according to the parameters set on the back. Applicator roll and back roll speed indicators are set and displayed on the touch screen. 4. Drying system The drying system consists of heater, fan, exhaust duct and air hole, insulation box, inspection door, etc. The insulation box has a 1.0-meter section, a total of one section. The inner and outer parts of the box are made of stainless steel poles. The box body is a thermal insulation structure to prevent heat loss and safe operation. After the coated wet pole pieces enter the drying box, the box adopts the upper air drying method for efficient drying For drying, the dry air is sent by the fan to be heated by the hot air heater, and then sent to the inside of the oven, and is evenly blown to the wet coating by the air hole, and the dried air is discharged to the outdoors by the exhaust fan. 5. Take-up mechanism This device is composed of oven outlet, swing arm tension mechanism, belt drive device and winding tension sensor system. The tempo stays in sync. 6. Rewinding mechanism The device consists of a servo motor, a winding shaft, and an automatic deviation correction system. During the winding process, the device can make the winding shaft track the position of the pole piece, so that the edge of the winding pole piece can be kept neat. 7. Coating and drying automatic control system (1) Coating control system: This system consists of PLC, servo motor, touch screen and optical fiber sensor. As a human-machine interface, the touch screen has a friendly picture, intuitive display and convenient operation. During the coating process of this machine, the line speed of the coating roller, the coating speed and the number of coated sheets are automatically displayed on the touch screen, and the parameters set can be finely revised at any time according to the requirements of the production process. (2) Temperature and control: This system is composed of temperature regulator, thermocouple, heater, relay, etc. It measures and automatically controls the internal temperature of each section of drying oven Main configuration The machine control system and structure system is a highly integrated closed-loop control system, the main configuration is as follows: No. Name Details Content 1 Rack structure   Integrated vertical plate structure, embracing processing, plus precise positioning pins to ensure position accuracy and stability 2 Unwinding part Correction form Photoelectric edge patrol, motor drive, overall movement correction     Correction stroke ±50mm     Unwinding form Automatic unwinding of motor speed reducer     Roll up method 3" air shaft     Maximum roll diameter φ300 3 Coating roller Size φ210*360     Material carbon steel, chrome plated     Drive mode Servo motor + reducer 4 Coating mode Extrusion head Effective width 300mm, material: stainless steel plated carbide     Extrusion head position control system Cylinder push, mechanical adjustment, precise adjustment of the mechanism     Extrusion head membrane tibial pressure High precision pressure gauge 0-1MPa 5 Feeding system Screw pump Bingshen pump HEISHIN servo control feeding     Transfer tank 5L, constant temperature control, liquid level control, pneumatic stirring, filter     Coating valve Pneumatic single valve     Pipeline system Sanitary piping system, no dead ends 6 Tension Control System Structure type Swing arm tension, low friction cylinder 7 Guide Roller (Over Roller) Control mode Speed PID control     Tension (N) 30-80N       Aluminum alloy roll, width 340mm, hard anodized 8 Operation panel Touch screen Operate according to the function interface 9 Operating platform Button Some functions are the same as button operation   1. Automatic control of front and rear tension: 1.1 Fully integrated Panasonic system; 1.2 Unwinding mechanism; 1.3 Rewinding device; 1.4 Motor unwinding. 2. Front and rear automatic correction system: 2.1 Correction controller: Aibo correction system; 2.2 Detection head: photoelectric detection 3. Main control system: 3.1 Operation interface: touch screen; 3.2 Coating shaft and steel roller: Yaskawa servo motor; 3.3 Extrusion die: driven by cylinder; 3.4 Program controller: Panasonic PLC and control module; 3.5 Heating tube: domestic; 3.6 Temperature control probe: thermocouple. 4. Oven: 4.1 Material inside and outside the box: stainless steel: (SS304 stainless steel) 4.2 Box insulation: the thickness of the insulation layer is 50mm; 4.3 Fan: domestic; 4.4 Air duct: stainless steel; 4.5 Rack: carbon steel parts + paint 5. Machine head and unwinding integrated parts Machine tail and receiving parts 5.1 Worktable: nickel-plated surface; 5.2 Large bearing seat: nickel-plated surface; 5.3 Coating roller: carbon steel with chrome plating on the surface; 5.4 Rubber roller: corrosion-resistant rubber; 5.5 Aluminum roller: aluminum alloy (surface anodized hard anodized) 5.6 Inflatable shaft: chrome plating on the surface

Lab High Temperature Desktop Slot Die Coater Machine of Adjustable Coating Width Used in Perovskite Films

Sales Manager: Gia Email: Gia@tmaxlaboratory.com Wechat: Dingqiuna Whatsapp：+86 131 7450 6016 Skype: gia@tmaxcn.com

Customizable Extrusion Coater Slot Die Coating Machine

Customizable Extrusion Coater Slot Die Coating Machine The extrusion coating machine is a device that uses a narrow extrusion coating die to non-contact coating the substrate. This equipment can achieve two types of coating functions: continuous coating and stripe coating through the combination of slot die narrow extrusion coating die, precision metering feeding system, and feeding valve. The equipment has high coating accuracy, good consistency and stability, and is widely used in the lithium commercial battery, FCCL, optical film, high adhesive tape, and various functional film industries. Specification Control system  independently developed Coating width  200mm-1500mm Coating method  Slot die Coating thickness  0.005-5MM (uniformity ± 3%) Thickness adjustment  digital micrometer Heating channel  drying channel 2-20 meters (1 meter per section) (customizable) Heating control  thermocouple sensor Tension control  Adjustable tension Deviation correction device  fully automatic deviation correction for feeding/receiving Drying duct fan  adjustable speed Oven insulation  asbestos insulation layer Collecting and discharging diameter  Collecting and discharging material diameter 300mm (customizable) Rear lamination  finished lamination (steel pipe+rubber hose) Wind speed control  with wind filtering at the outlet of the drying tunnel (uniform wind speed) Coating speed  1-30 meters/minute (adjustable according to the drying condition of the adhesive) Drying passage roller  304 stainless steel Drying channel material  304 stainless steel (box) Heating method  stainless steel heating tube Oven temperature  room temperature -160 degrees (can be kept at a constant temperature) Drying track structure  tiled Waste heat recovery  with automatic waste heat collector Glue supply method  pressure bucket Expansion axis  3-inch gas expansion axis Drying channel lifting  cylinder lifting Exhaust system  centrifugal fan (external interface 100MM) Equipment power supply  380V Control AC24V Equipment power  12KW (peak)
