Lab High Temperature Desktop Slot Die Coater Machine of Adjustable Coating Width Used in Perovskite Films
Model Number:
TMAX-SC-SD-IDimension(L*W*H):
(360 mm x 280 mm x 190 mm)Compliance:
CE CertifiedWarranty:
One year limited warranty with lifetime technical supportPlace of Origin:
ChinaPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Plant Heat Roll Press Calender Machine Used for the Growth And Synthesis of PerovskitesNext:
Vacuum Glue Baking Machine or Dryer with 10 Sections N Group Formula Using in Perovskite Synthesis

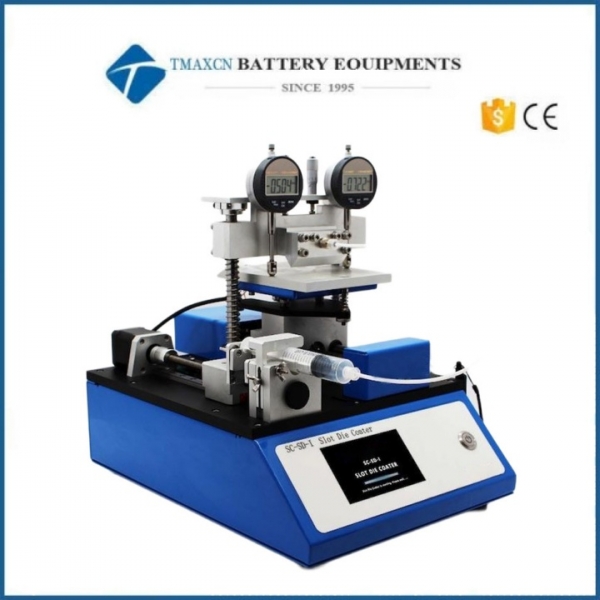

Lab High Temperature Desktop Slot Die Coater Machine of Adjustable Coating Width Used in Perovskite Films
Key Features：
1. The stage can be heated, and the coating width is adjustable. Heating range: room temperature -200°C, width: 25-50mm.
2. Designed by the American team and assembled in China, it is cost-effective.
3. Product quality assurance, there are multiple after-sales centers around the world, including the United States, Hong Kong and Beijing.
Slot Die Coater Specifications （SC-SD-I）
Brand |
TMAXCN |
Origin |
R&D by American team, production and assembly in Beijing |
Slot-Die Head Coating Width |
50 mm (maximum) |
Slot-Die Shim Thickness |
100 μm |
Hotplate Temperature |
200°C (maximum) |
Stage Travel Length |
100 mm (maximum) |
Coating thickness range |
1-1000 μm |
Minimum Stage Speed |
100 μm.s-1 |
Maximum Stage Speed |
50 mm s-1 |
Minimum Syringe Speed |
12 μm.s-1 |
Maximum Syringe Speed |
5 mm.s-1 |
Maximum Head to Substrate Travel Distance |
13 mm |
Power Supply |
DC 24 V, 6.2 A, via 100-240v 50/60Hz power adapter |
Dimensions |
Depth x Width x Height (360 mm x 280 mm x 190 mm) |
Shipping Weight |
＜10kg |
Ambient temperature |
0-40℃ |
Relative humidity |
＜85% |
Installation method |
Place on a horizontal desktop |
Warranty |
1 year |
