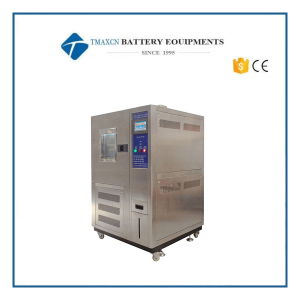

Battery Thermal Shock Test Chamber  I. Product Overview: The Battery Thermal Shock Test Chamber is designed to achieve a specified test temperature within a set time and maintain it for a defined duration, using a hot air circulation system to ensure uniform temperature distribution throughout the chamber. II. Compliance Standards: UL 2054 UL 1642 SJ/T 11169 SJ/T 11170 IEC 62133 GB/T 18287 QC/T 743 QC/T 744  III. Product Parameters Temperature Range Room temperature to 200°C Temperature Display Accuracy 0.1°C Temperature Stability ±1.0°C Temperature Uniformity ±2°C Heating Rate (5 ± 2)°C/min Temperature Controller Button-style controller or TEMI880 temperature controller Internal Chamber Material Stainless steel plate External Chamber Material Cold-rolled steel plate with powder coating Insulation Material High-efficiency compressed glass wool Safety Features Over-temperature alarm, MCCB overload protection Exhaust Vent Blade-type (adjustable airflow) Air Circulation System Convection-style air circulation Internal Chamber Dimensions 400 x 400 x 450 mm (L x W x H) External Chamber Dimensions 650 x 530 x 920 mm (L x W x H) Weight Approximately 80 kg Power Supply AC 220V, 50/60 Hz
