Laboratory Low Temperature Test Chamber for Lithium-ion Battery R&D
Model Number:
TMAX-DWCSCompliance:
CE CertifiedWarranty:
One year limited with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Battery Hydraulic Nail Penetration&Crushing Safety Tester Test BoxNext:
Laboratory Battery Washing Tester Machine for Lithium-ion Battery R&D

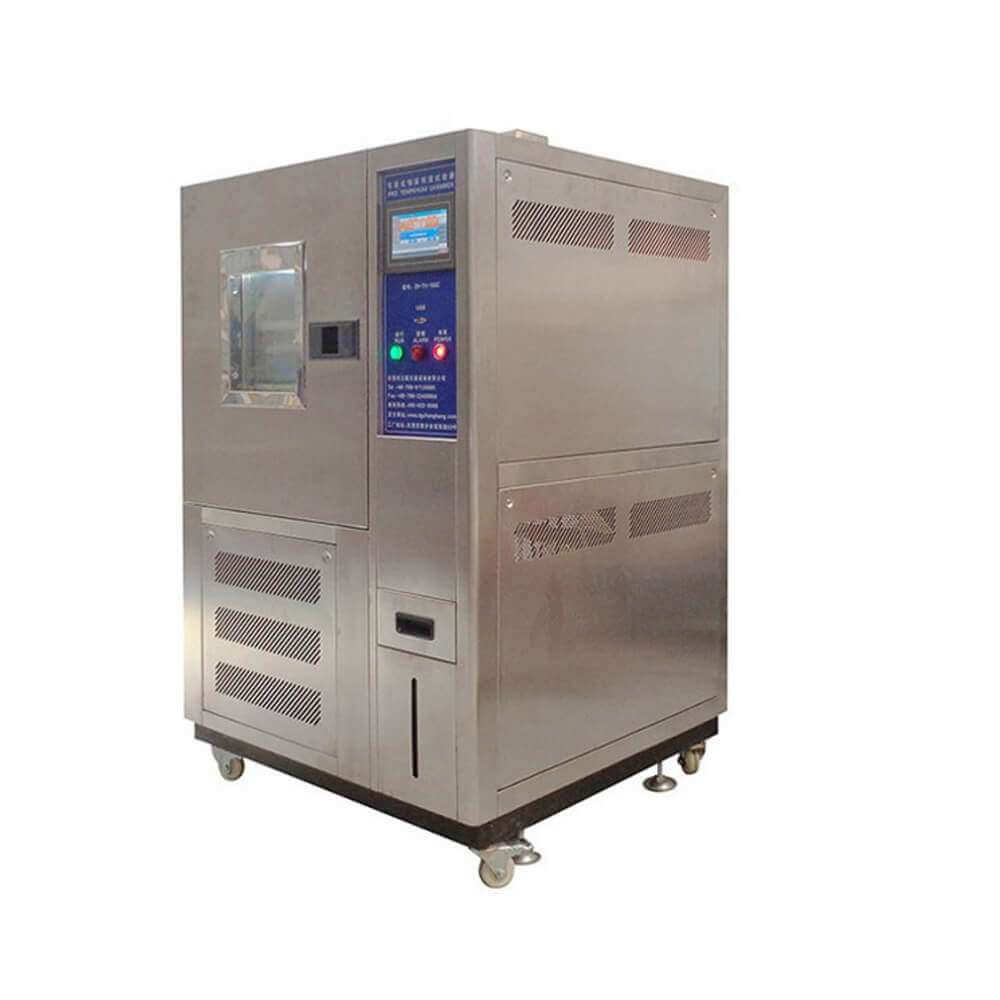

Laboratory Low Temperature Test Chamber for Lithium-ion Battery R&D
Introduction
This constant temperature and humidity environment test chamber can simulate various temperature and humidity environments, and is suitable for testing electronics, electrical appliances, food, automobiles, rubber, plastics, metals and other products, and meets the reliability of GB/T2423, GJB150A1/4 in various harsh environments The parameters such as the stability of the sex machine will provide you with a basis for predicting and improving product quality and reliability.
Technical parameters
Working dimensions |
600*500*750(D*W*H) |
Dimensions |
1100*1070*1800(D*W*H) |
Temperature range |
-40°C to +150°C |
Temperature fluctuation |
≤±0.5℃ |
Temperature uniformity |
≤±2℃ |
Temperature deviation |
≤±2℃ |
Temperature rise and fall rate |
Heating rate: 4℃-7℃/min (from normal temperature to the highest temperature, non-linear no-load) Cooling rate: 0.7℃-1.5℃/min (from normal temperature to the lowest temperature, non-linear no-load) |
Humidity range |
20%―98%R.H (AT+25℃~+85℃) |
Humidity error |
+2/-3%R.H (above 75%R.H), ±5% R.H (below 75%R.H) |
Wind speed |
1.7~2.5m/s |
Power |
About 5Kw |
Power supply |
110V±10%V; 50Hz |
Note: The above indicators are tested and measured in a space within 1/6 of the inner wall of the box under the conditions of ambient temperature ≤25℃, normal pressure, no-load and no-load conditions;

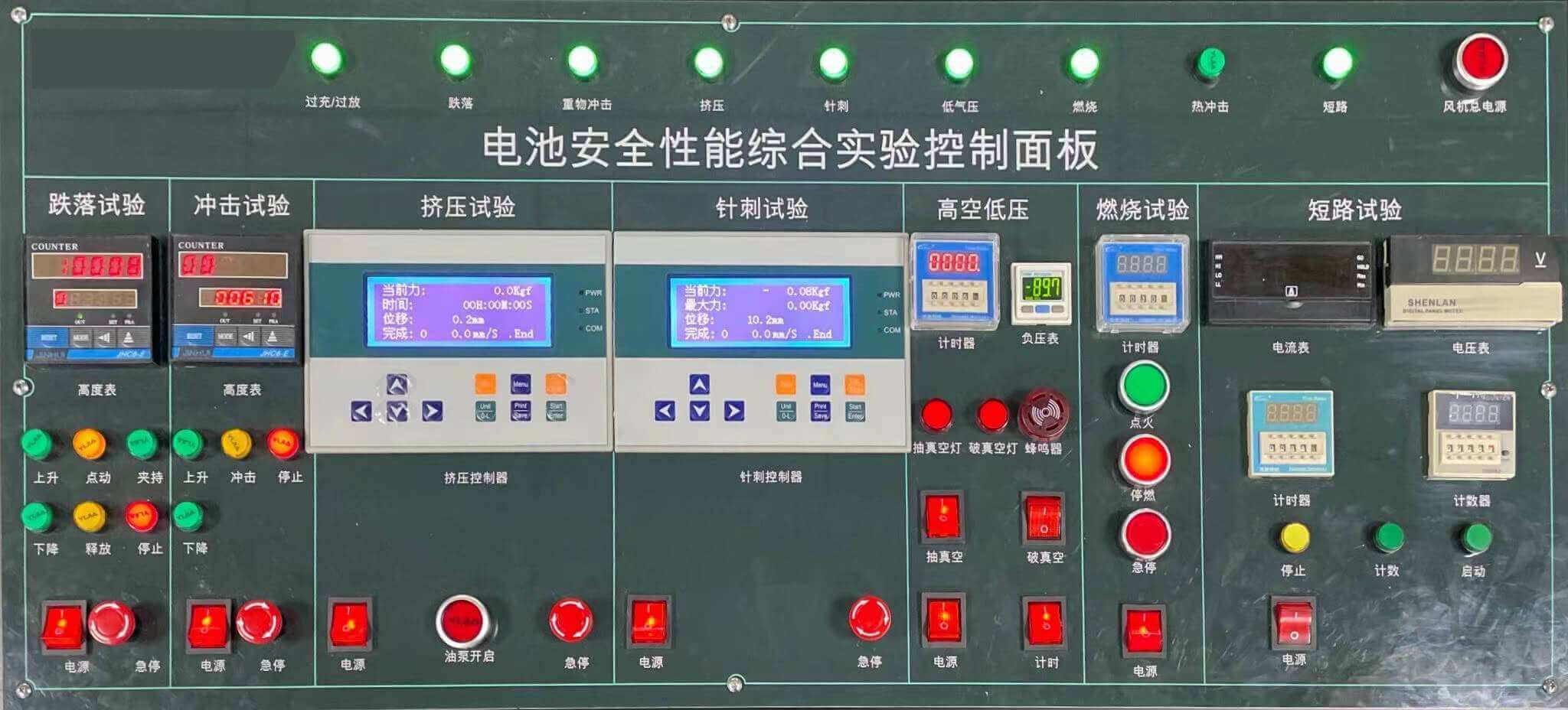

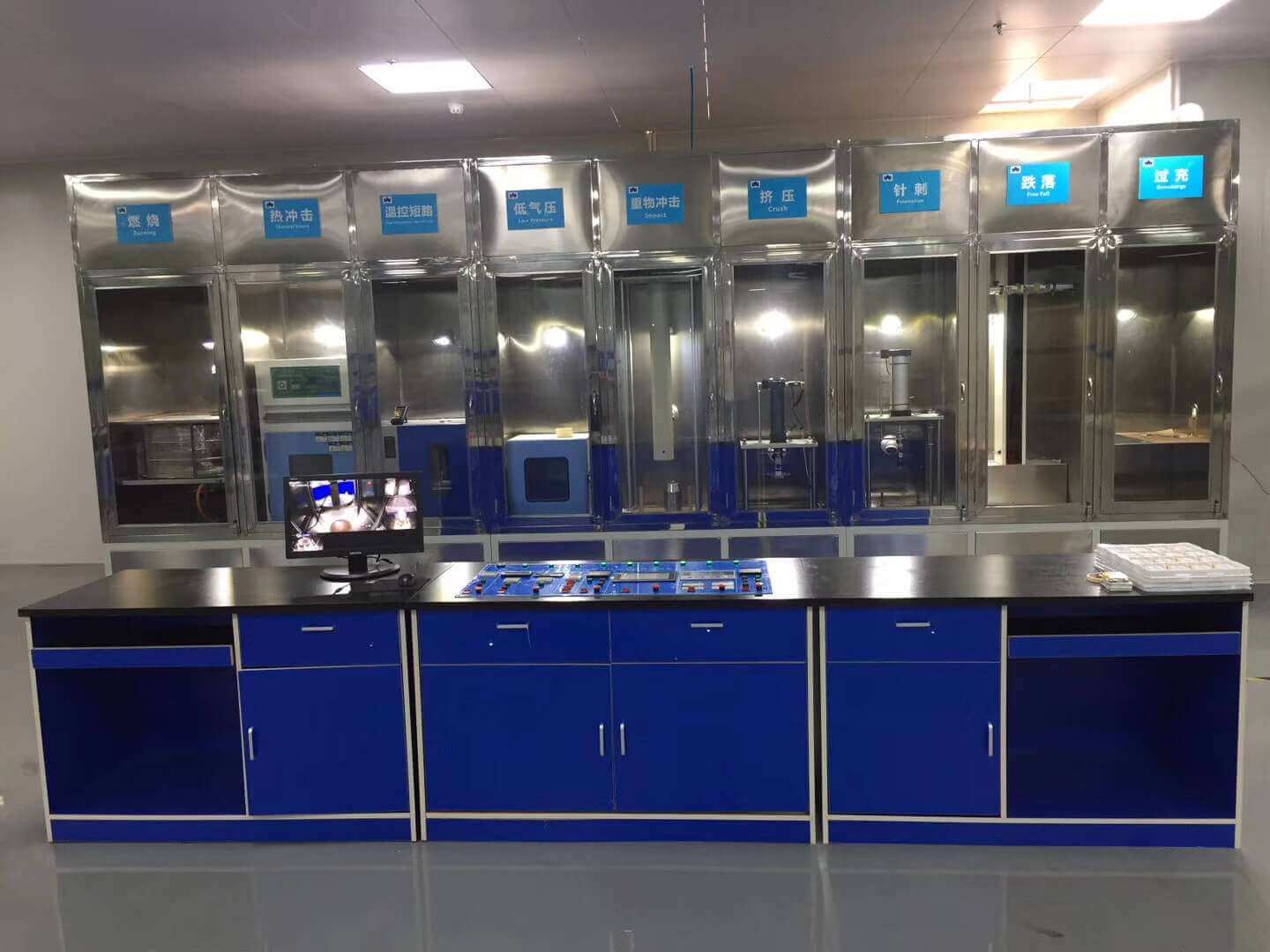

If you customize more than six machines, you can integrate the machines into a comprehensive console
