Thermal Shock Tester

Battery Thermal Shock Test Chamber

  • Model Number:

    TMAX-ZS-1010
  • Compliance:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

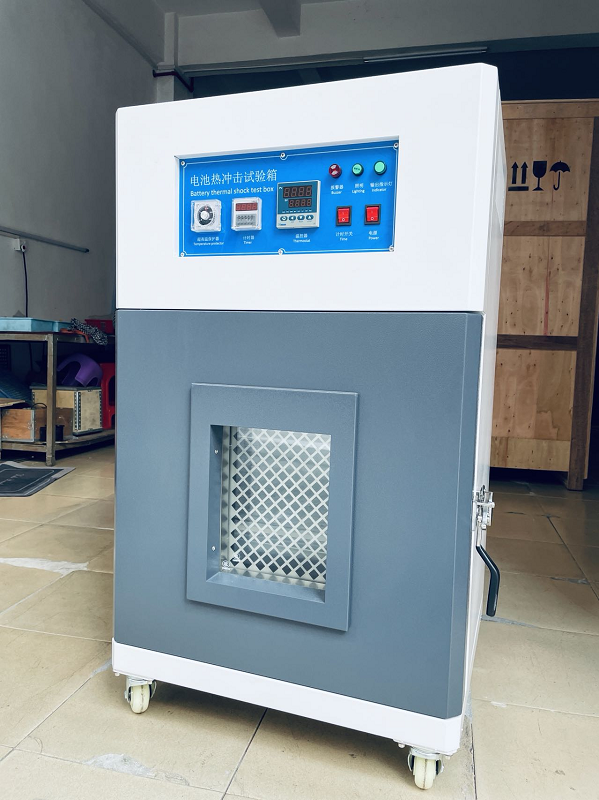

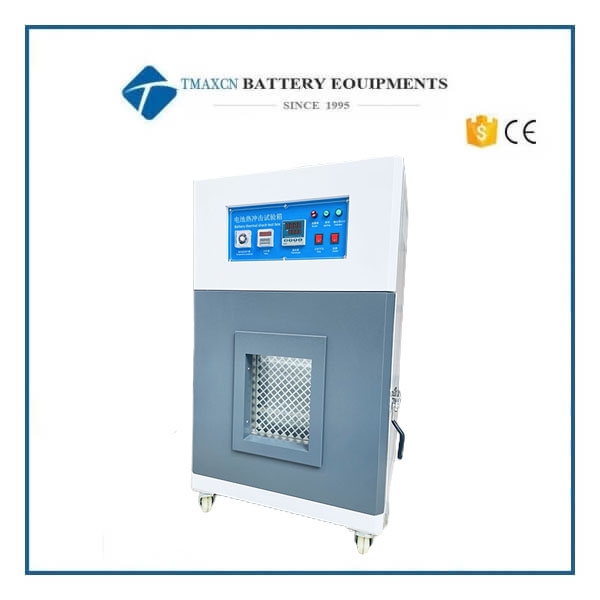

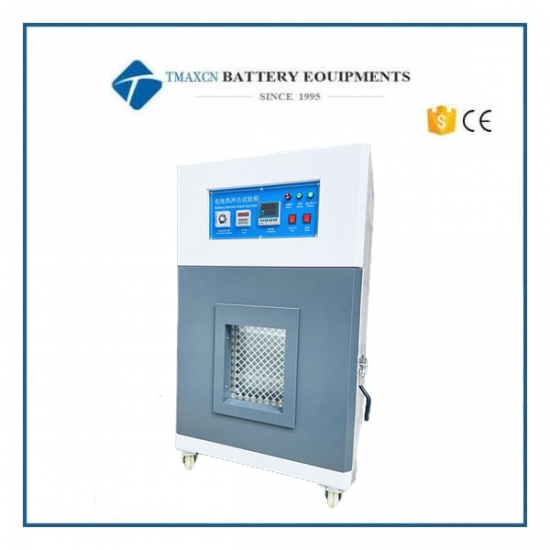

Battery Thermal Shock Test Chamber


I. Product Overview:

The Battery Thermal Shock Test Chamber is designed to achieve a specified test temperature within a set time and maintain it for a defined duration, using a hot air circulation system to ensure uniform temperature distribution throughout the chamber.


II. Compliance Standards:

UL 2054

UL 1642

SJ/T 11169

SJ/T 11170

IEC 62133

GB/T 18287

QC/T 743

QC/T 744


 III. Product Parameters

Temperature Range

Room temperature to 200°C

Temperature Display Accuracy

0.1°C

Temperature Stability

±1.0°C

Temperature Uniformity

±2°C

Heating Rate

(5 ± 2)°C/min

Temperature Controller

Button-style controller or TEMI880 temperature controller

Internal Chamber Material

Stainless steel plate

External Chamber Material

Cold-rolled steel plate with powder coating

Insulation Material

High-efficiency compressed glass wool

Safety Features

Over-temperature alarm, MCCB overload protection

Exhaust Vent

Blade-type (adjustable airflow)

Air Circulation System

Convection-style air circulation

Internal Chamber Dimensions

400 x 400 x 450 mm (L x W x H)

External Chamber Dimensions

650 x 530 x 920 mm (L x W x H)

Weight

Approximately 80 kg

Power Supply

AC 220V, 50/60 Hz
