Pouch Cell Automatic Layer by Layer Stacker Stacking Machine
Model Number:
TMAX-111A-ENet Weight:
500 kgCompliance:
CE CertifiedWarranty:
1 yearPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Winding Machine for Supercapacitor and Cylindrical Cell Production LineNext:
Semi-auto Lamination Stacker Stacking Machine For Lithium ion Battery

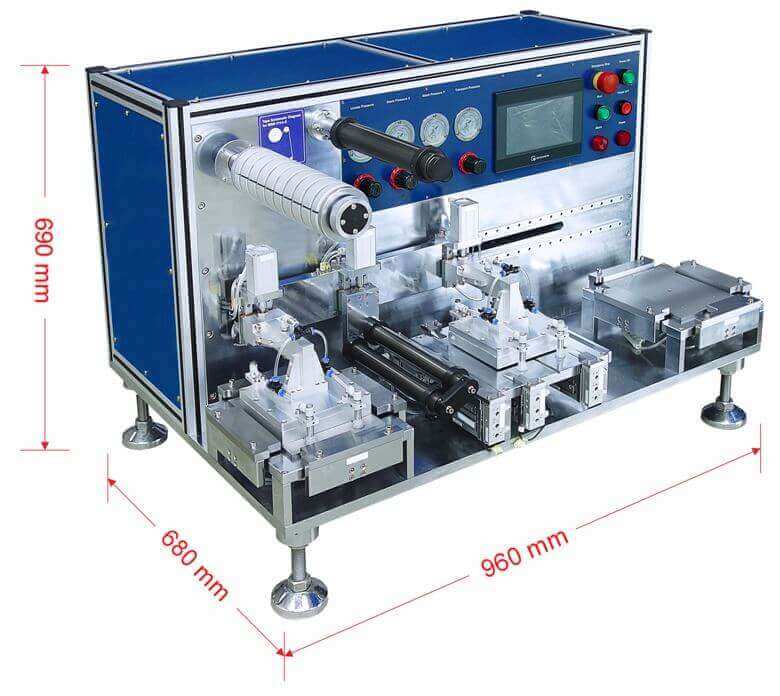

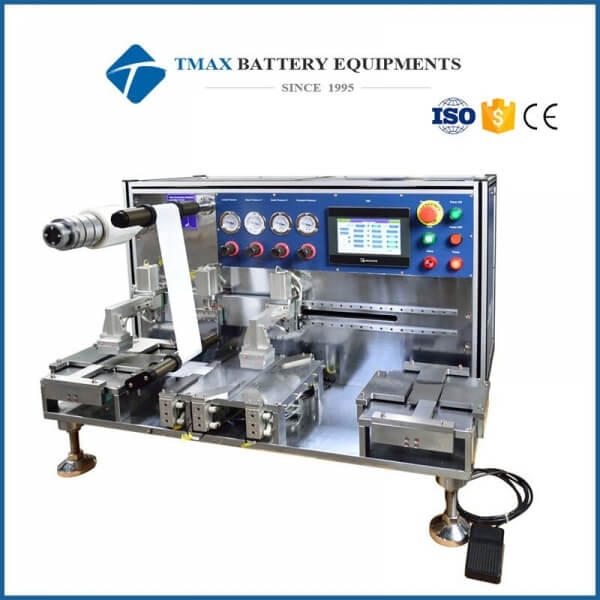

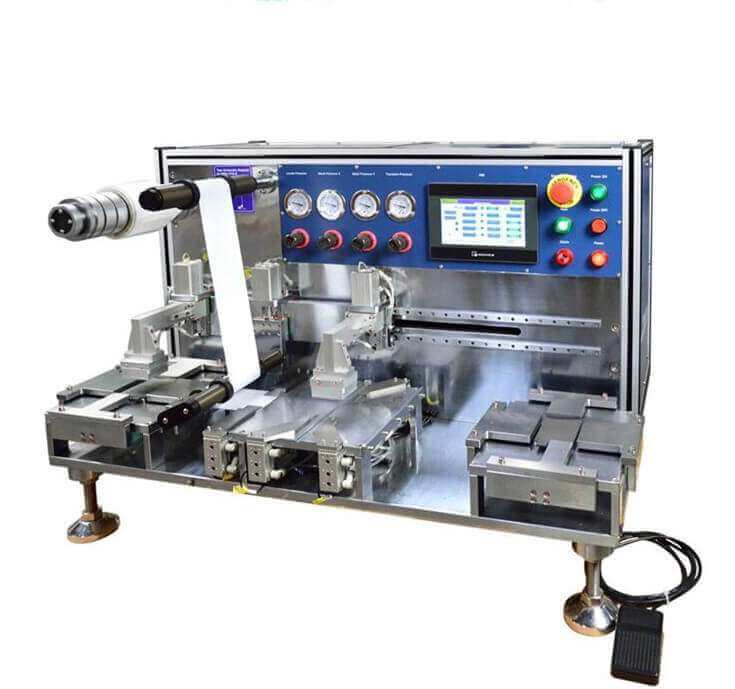

Pouch Cell Automatic Layer by Layer Stacking Machine
TMAX-111A-E is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.
Features

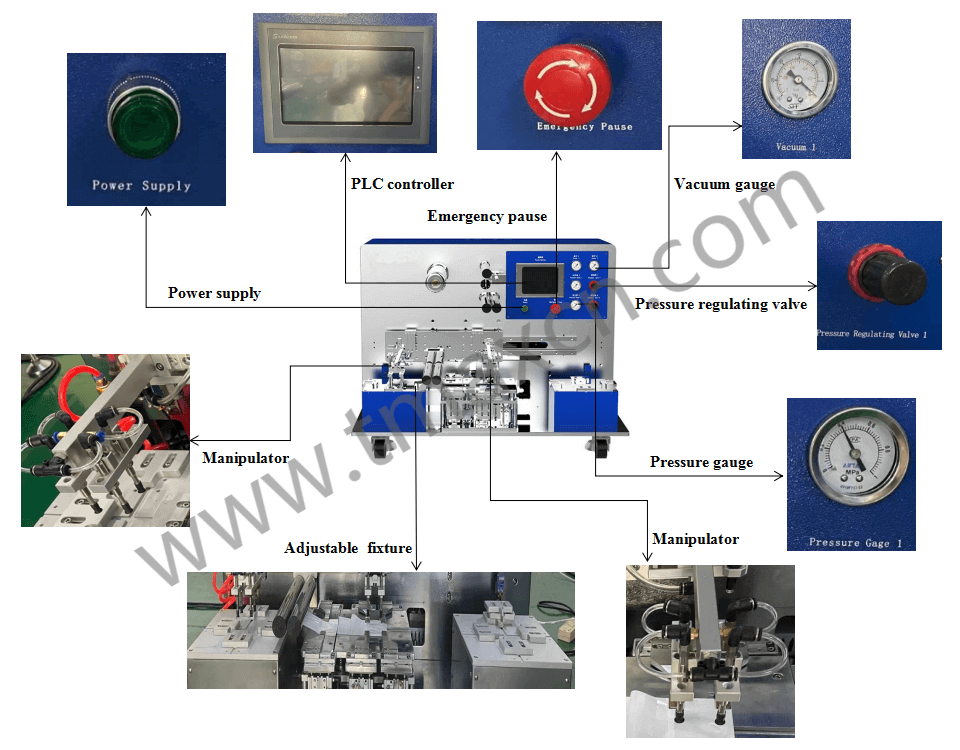

1. PLC Touch Screen Control allows easy condition setting
2. Continuous "Z" fashion stacking with a separator

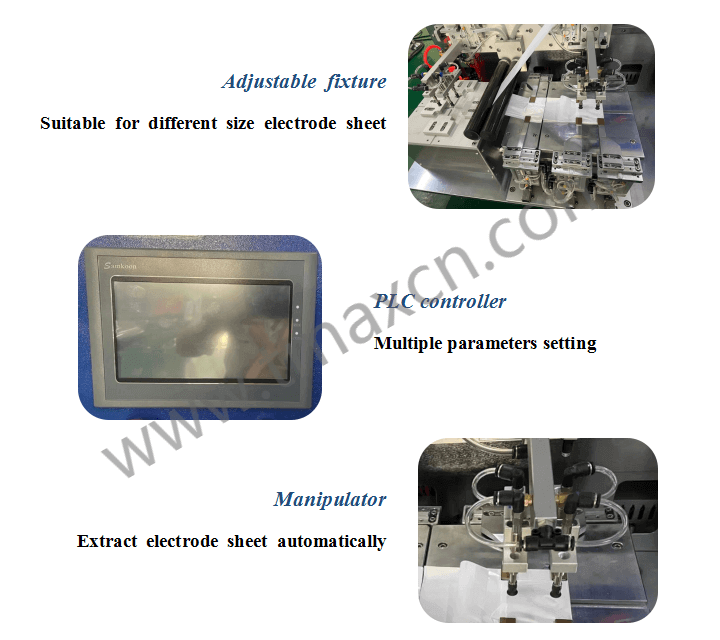

3. Auto electrode pick-up & stacking via vacuum suction manipulator
4. Adjustable mechanical fixture for accurate electrodes positioning

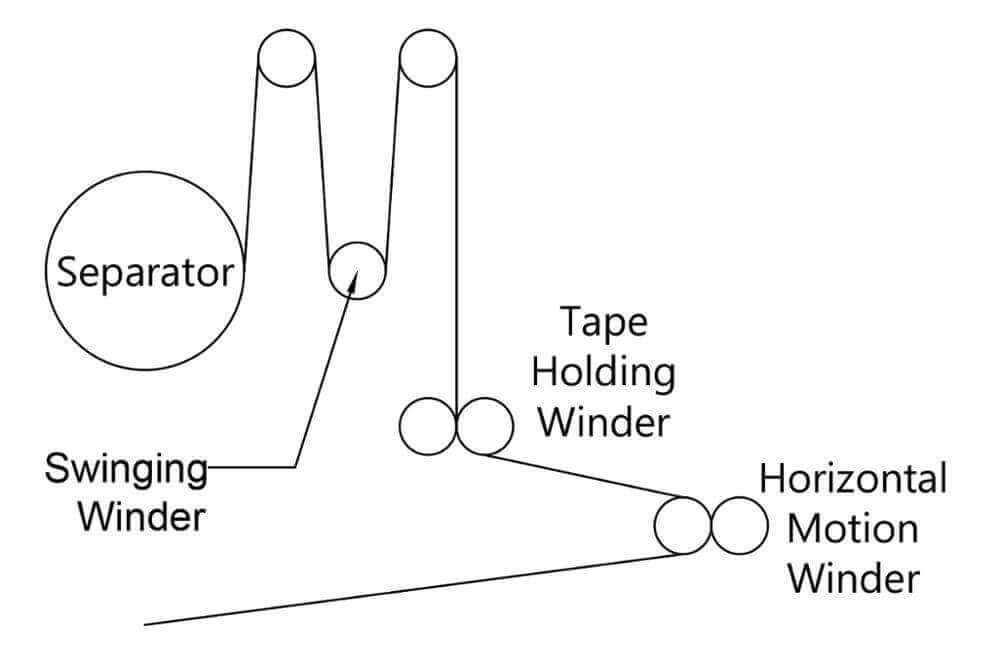

5. Unreeling rotors for separator film feeding
6. Auto-tension control for separator film delivery
7. One set of 80x50mm stocking die fixture is included for immediate use.
Specifications
Working Voltage |
AC220V 50/60Hz |
Power |
1KW |
Stackable Size |
200x150mm |
Stackable Layers |
Upto 500 layers |
Max. Electrode Thickness |
Piled up thickness < 30 mm |
Aligning Accuracy |
±0.5 mm for stacked electrodes |
Acceptable Separator Roll Size |
I.D>3'' (76mm) |
Stacking Fixture |
One customized stacking die fixture is included for immediate use. |
Vacuum Pump |
An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator. |
Suggested Air Pressure |
0.5 - 0.8 MPa (Air compressor is not included in the standard package. |
Product Dimensions |
960 mm L x 680 mm W x 690 mm H |
Weight |
500 kg |
Compliance |
CE Certified |
Warranty |
One year limited warranty with lifetime support |
Cindy@tmaxcn.com
David@tmaxcn.com
+86 13003860308
18659217588
