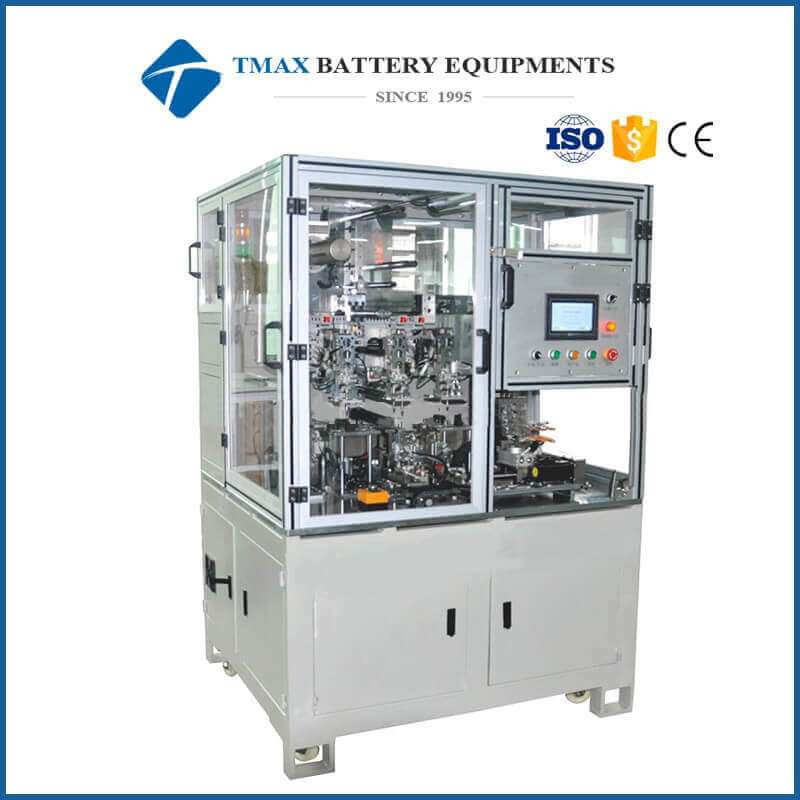

Semi-auto Lamination Stacker Stacking Machine For Lithium ion Battery
Model Number:
TMAX-DP-150Input Power:
4KWDimension(L*W*H):
1250*1150*1850mmNet Weight:
800kgCompliance:
CE CertifiedWarranty:
One Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Pouch Cell Automatic Layer by Layer Stacker Stacking MachineNext:
Automatic Layer by Layer Stacking Machine for Pouch Cell Electrode
Semi-auto Lamination Stacker Stacking Machine For Lithium ion Battery
TMAX-DP-150
is a high-accuracy Semi-auto
stacking machine with many
advanced features to ensure a stable, repeatable and precise electrode
stacking. It adopts "Z" glyph laminated.
Advanced
Features:
1 PLC
Touch Screen Control with easy condition setting.
2
Continuous "Z" fashion stacking with a separator .
3 Auto
electrode pick-up & stacking via vacuum suction manipulator.
4 Through
four manipulator to remove electrode from material box placed second para
platform, after calibration then place on lamination platform, laminated with
automatic clamping device on stage.
5
Unreeling rotors for separator film feeding.
6
Auto-tension control for separator film delivery.
Model |
Semi auto
stacking machine TMAX-DP-150 |
|
Suitable battery
size |
Thickness H (mm) |
5-20 |
Width W (mm) |
30-90 |
|
Length L (mm) |
80-150 |
|
Tab length Q (mm) |
Q≤20 |
|
Tab width (mm) |
≤20 |
|
Technology
parameter |
Stacking speed |
1.3-1.5s/pcs |
Registration accuracy |
±0.5mm |
|
Stacking quantity |
Can be set |
|
Percent of pass |
≥98% |
|
Power |
4kw |
|
Weight |
800kg |
|
Dimension (L*W*H) |
1250*1150*1850mm |
|
Materials size |
Electrode |
Length : 80-150mm Width : 30-90mm Thickness : 0.07-0.25mm |
Tab |
Length : ≤20mm Width : 8-20mm |
|
Separator |
Length : in roll Width : 90-150mm Thickness : 0.02-0.04mm Inner diameter : φ76.2mm Max out diameter : φ300 |
|
