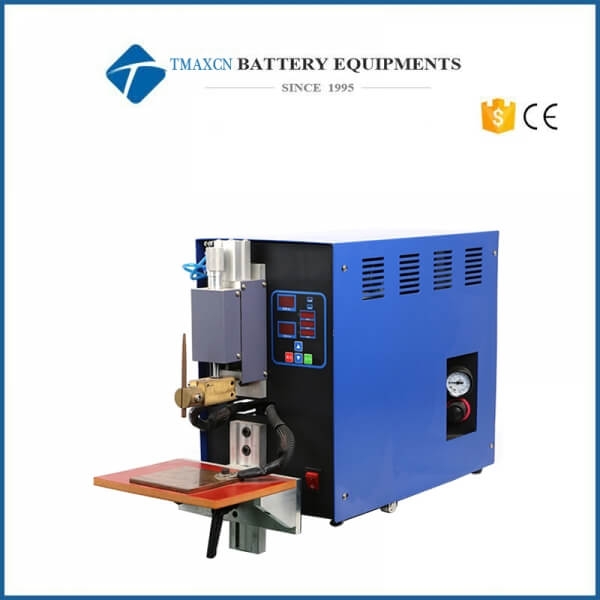

Manual Single Welding Needle DC Spot Welding Machine For Li-ion Battery Research
Model Number:
TMAX-W728Input Power:
10KWNet Weight:
50kgCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Energy Storage Spot Welding MachineNext:
18650 Desk-Top Capacitive Discharge Spot Welding Machine
Manual Single Welding Needle DC Spot Welding Machine For Li-ion Battery Research
FEATURE
1 . TMAX-W728 DC spot welding machine has two kinds type to choose, pneumatic
spot welding machine with smaller shipping weight and volume, but need to
connect air compressor. Foot spot welding machine without air supply but need
with desk shipping together.
2 . This DC double needle spot welding machine is specifically
designed for professional Li-ion Battery Research. It is mainly used for
Welding pcb for mobile phone battery pack and EV battery pack for battery and
Nickle tab weld.
SPECIFICATIONS
Model |
DC spot welding machine TMAX-W728 |
Power Supply |
110V-240V with transformer, Single Phase 50/60Hz |
Max output power |
10KVA |
Warranty |
One year limited with lifetime support |
Advantages |
1 Double pulse welding - pre welding and welding 2 Microcomputer control precision, Guarantee the evenness of each welding effect 3 Automatic count |
Pre-welding current |
0-99A |
Welding time |
0-30S |
Welding current |
0-99A |
Welding stroke |
25mm, the welding height can be adjusted |
Operating |
Foot switch and pneumatic model can be chosen |
Control |
The microcomputer chip control, LCD liquid crystal display, simple and precision |
Welding thickness |
0.03-0.5 mm Ni weld on Ni or metals |
Weight |
50kg |
Dimension(L*W*H) |
Foot switch model with desk : 800*580*1100mm Pneumatic model : 400*370*220mm |
