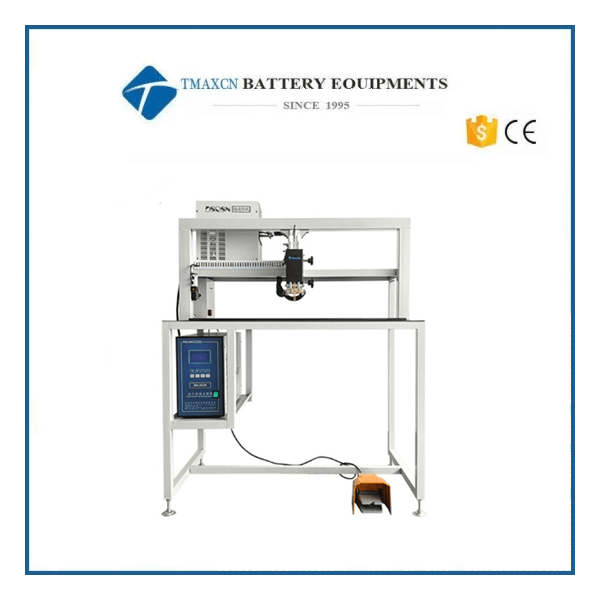

Energy Storage Spot Welding Machine

Model Number:
TMAX-DH-2018B
Input Power:
30KVA
Dimension(L*W*H):
1000x600x1310mm
Net Weight:
100KG
Compliance:
CE Certified
Warranty:
One years limited warranty with lifetime technical support
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

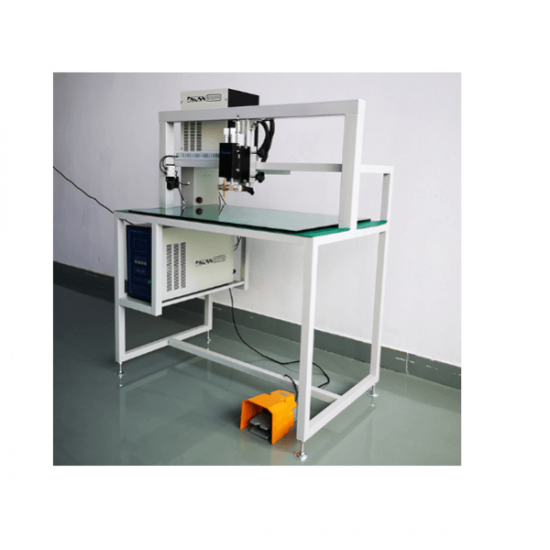

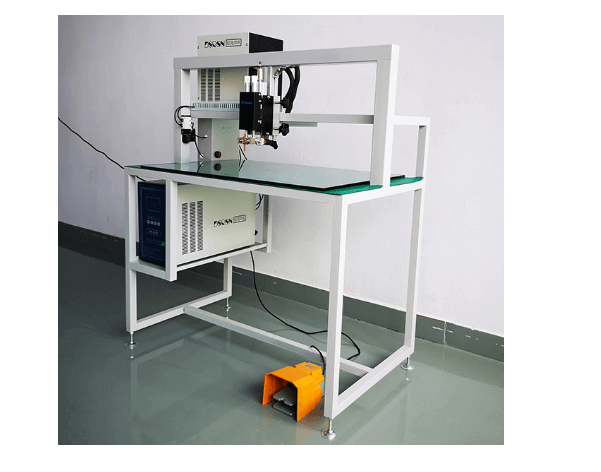

Energy Storage Spot Welding Machine

Features:

1. Digital welding parameters operation is simple and clear convenient and quick.

2. Acousto-optic alarm for abnormal current to prevent false welding.

3. Optional single point for welding mode.

4. Solder joints do not change color.

Specification:

Input voltage	AC220V±10%50/60Hz, power:300W
Size（L×W×H）	1000x600x1310mm
Overall weight	100KG
Maximum power of transformer	30KVA
Maximum short circuit output current	5000A
Rated capacity	250J
Welding voltage adjustment	50-350VDC
Welding time	1.0ms-20.0ms ; accuracy:0.1ms
Welding pulse	Secondary

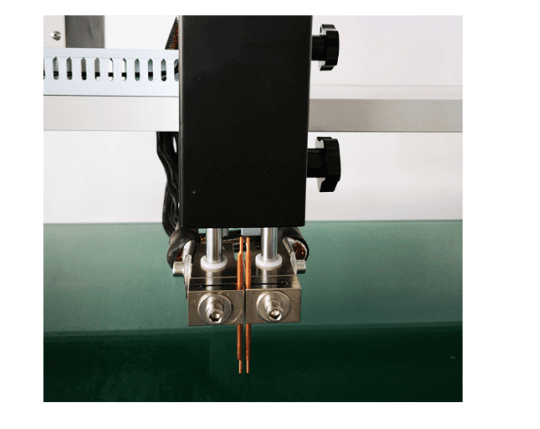

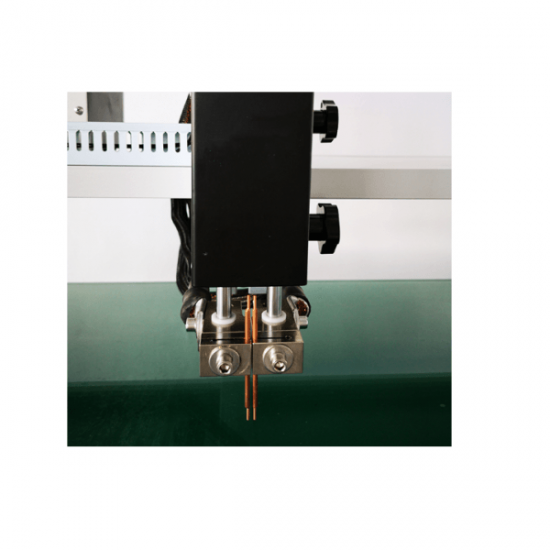

Welding pin configuration	1.6mm;3mm;6mm optional
Devugging spacing of welding needles	0-20mm
Welding speed	0.8-1.2S/pcs
Planar nickel sheet thickness	0.08-0.2mm(rigid nickel plating)
Effective travel of working platform	800mm*500mm
Parameter store	Ten group
Adjustment mode	Constant voltage

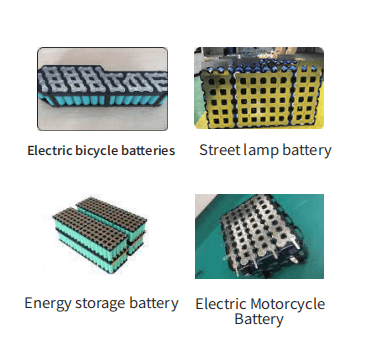

Scope Range:
