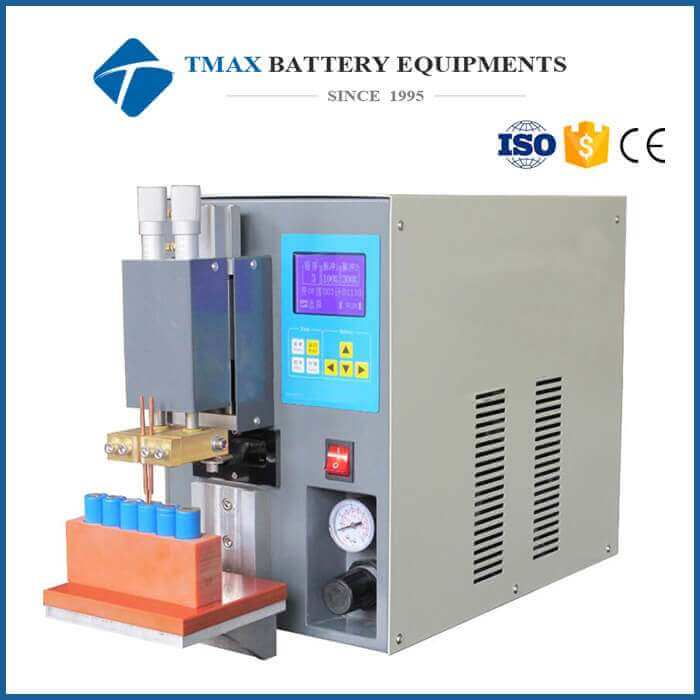

18650 Desk-Top Capacitive Discharge Spot Welding Machine
Model Number:
TMAX-PS250Input Power:
10KWDimension(L*W*H):
750(L)*650(W)*550(H)mmNet Weight:
50kgCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Manual Single Welding Needle DC Spot Welding Machine For Li-ion Battery ResearchNext:
Precise Micro Spot Welder/ Battery Tab Spot Welding Machine for 18650 Cylindrical Battery
18650 Desk-Top Capacitive Discharge Spot Welding Machine
INTRODUCTION
It is the most popular capacitive discharge spot welder driven by compressed air. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with more reliable and consistent welding than AC pulse.
SPECIFICATION
Working Voltage |
110V or 240V AC, 50/60Hz |
Output Power |
10KW |
Input Air Pressure |
0.1 - 0.8 MPa (Air Compressor is not included. Please click here to order) |
Welding Current |
0-99% Adjustable |
Welding probes |
· Allow independent adjustment for pressure · Ensure consistent welding pressure · Fully eliminates the phenomenon of low voltage or condensation occurred to lithium batteries after welding · Homogeneous welding spot, small spark, and no black spots |
Welding Switch |
Built in optoelectronic welding switch, which can eliminate the need of changing switches for similar welding machines |
Controller |
· Single chip control · Digital LCD control panel for setting all parameters |
Tab Thickness Applicable |
0.03 - 0.5mm tab (10 pcs 0.2mm Tab will be provided in the package for customer's practice) |
Warranty |
· One year limited warranty with lifetime support · Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
Product Dimensions |
750(L)*650(W)*550(H)mm |
Application Notes |
· Please click here to learn the basic knowledge of Capacitive Discharge Spot Welder · Avoid touching weld spots immediately after the weld has been performed as they will be hot · Always wear safety glasses when working with spot welders and weld heads · Be careful not to pinch fingers in moving weld head parts or between welding electrodes · Remove hand jewelries before welding |
Net Weight |
50 kg (110 lbs) |
