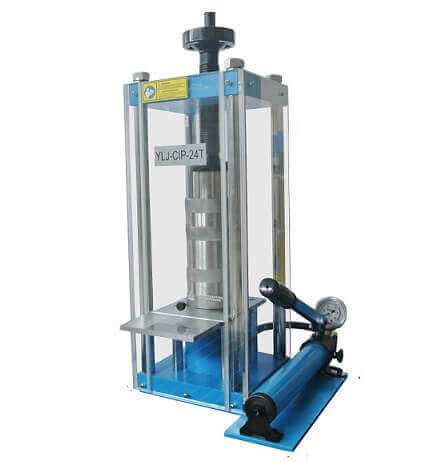

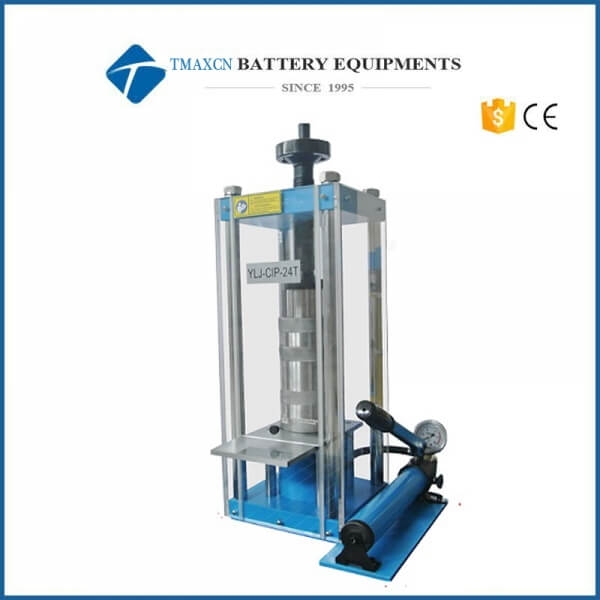

Manual CIP (Cold Isostatic Pressing) Press Machine with 30mm ID Vessel

  • Model Number:

    YLJ-CIP-20B
  • Net Weight:

    100 kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Manual CIP (Cold Isostatic Pressing) Press Machine with 30mm ID Vessel

YLJ-CIP-20B is a CE Certified compact cold isostatic press (CIP).  It has a 30mm ID x110mm hydraulic chamber made by ultra strength alloy, which can provide isostatic hydraulic pressure up to 278MPa via a 20T manual  hydraulic press.  It is an excellent tool for the material research lab to prepare high-density compound sample at easy. YLJ-CIP-20A has a small footprint, can be placed in glove-box to prepare air-sensitive materials. A plastic protection cover is included.



Specifications:

Pressure Vessel Size

  • 30mm Dia. x 110mm Height (pressing die cavity)
  • Max sample height: 60mm
  • Hydraulic oil volume (with sample loaded): 40mm distance to the top edge.
  • Made of high strength alloy with stainless steel protective jacket
  • Spare CIP die is available at extra cost for existing customer

   Max. Hydraulic Pressure in    Chamber

  • 278 Mpa ( 43500 PSI)

Gauge Pressure Value to Force Conversion


Gauge Displayed Pressure Value (Mpa)

5

10

15

20

25

30

33.4

Actual Force Applied on the Hydraulic Cylinder (Ton)

3

6

9

12

15

18

20

CIP Die Pressure (Mpa)

42

83

125

167

208

250

278

    • The actual force applied on the Vessel Cylinder (Ton) equal to the force applied to your working piece
    • For calculating the actual pressure (Mpa) applied on your working piece, please follow the equations in below:

          P = T/πr^2 x g x 10

  • P: Pressure (Mpa) applied on your working piece
  • T: Force (metric ton) Applied on the Pressure Vessel Cylinder
  • g: Standard gravity. g ≈ 9.8 m/s2
  • π: ~3.14
  • r: Radius (cm) of the Pressure Vessel ( 1.5 cm)
  • *1000 Kg = 1 Metric Tone; 1 Mpa = 10 Kg/cm2

Hydraulic Machine

  •  24T Max.
  •  Pump is separated from cylinder for safe operation

Operation Temperature

10 - 40°C

Bottom Cylinder Traveling Distance

20 mm maximum. The bottom cylinder (piston) is shown in the illustration in dimension section.

Dimension of Working Space



D1: 100mm
D2: 100mm
D3: 140mm
H1: 370mm
H2: 340mm

Overall Dimension  (including 20T Presser)

 470 L x 325W x 700H, mm

Net Weight

100 kg

Shipping Weight & Dimension

260 lbs; 48"x40"x40"

Compliance

CE Certified

Warranty

  • One year limited warranty with lifetime support
  • Seal O-ring is consumable, not covered by warranty

Accessories in Standard package

Spare O-ring  and accessories are included

Warning

  • Never let the press holding the target pressure for more than 8 minutes,

  • Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing

  • Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (20mm)



Packing List:

Name

Qty

1

Main machine (20T hydraulic pressing machine)

1 unit

2

CIP pressing die

1 set

3

Seal kit

1 set

4

Black Rubber Rings O.D (30mm)

5 pcs

5

Pressing oil

1 bottle

6

Hex-socket wrench (for top pressing die and degassing)

1 pc
