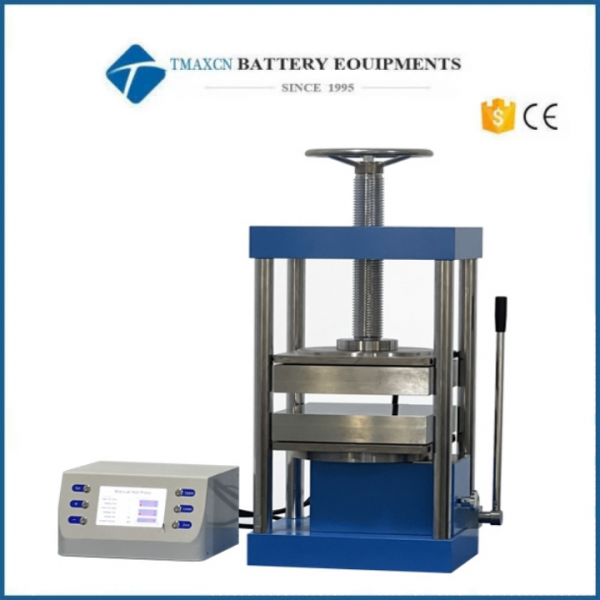

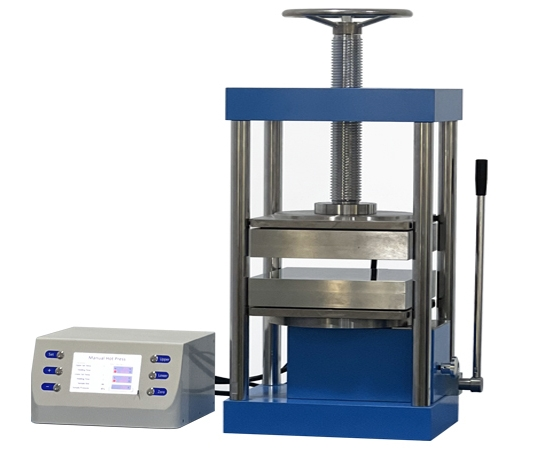

Lab 40T 500C Double Heating Plate Manual Hot Press Optional Water Cooler
Model Number:
TMAX-PCH-600FCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab 60T Programmable Automatic Powder Tablet PressNext:
Manual CIP (Cold Isostatic Pressing) Press Machine with 30mm ID Vessel
Lab 40T 500C Double Heating Plate Manual Hot Press Optional Water Cooler

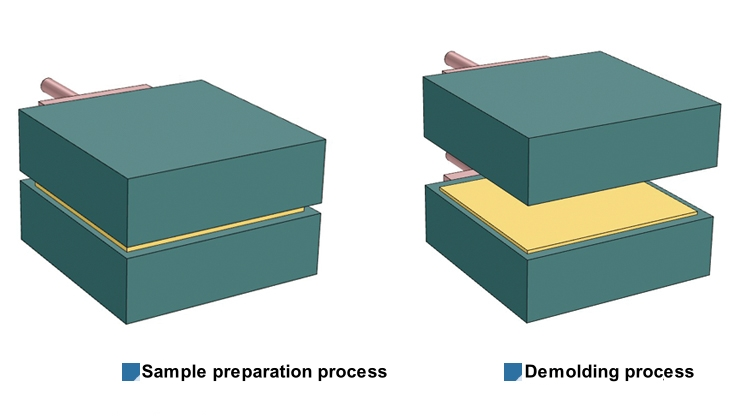

Mold operation diagram

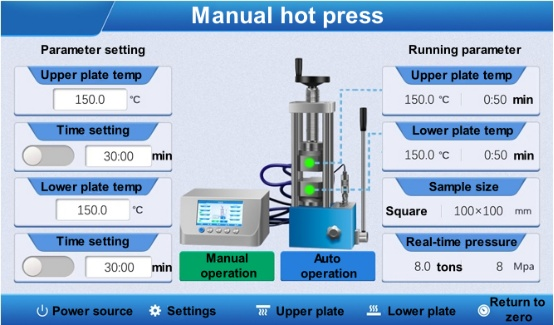

Operation interface (Manual mode)
Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.
Return to zero button:Calibrate the pressure to zero.
Upper plate button: Heat the upper heating plate.
Lower plate button: Heat the lower heating plate.
Timing switch: The timing function can be turned on and off.
Operation interface (Automatic mode)
Start button: It can be pressurized according to the multi-stage pressurization program.
Stop button:Press the stop button to stop the heating process.
List/Curve: The current display state can be switched between list and curve
Setting interface
Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.
Program Settings:Multi-stage pressure procedures and pressure holding times can be set.
Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.
Data management: Previously saved data records can be invoked and modified..
System Settings: Administrators can set various parameters, enter the password "666"
Setting interface
Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.
Invoke button: Invoke the set parameters to the automatic operation interface for pressure.
Save button: Save the set parameters to the database for later invocation.
Back button: Returns to the Settings screen

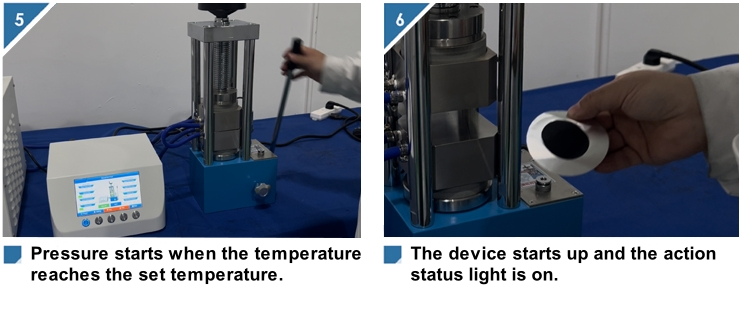

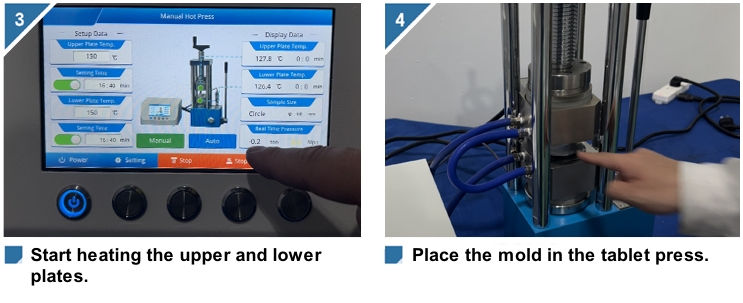

Operation procedure
Technical parameter
Instrument type |
PCH-600F |
Pressure range |
0-40.0 tons |
Piston diameter |
Chrome plated cylinder Φ130mm(d) |
Overall structure of subject |
The equipment has no sealed connection to reduce oil leakage points |
Mold heating temperature |
Room temperature -300.0℃ |
Constant temperature time |
1 s to ∞ s |
Temperature control accuracy |
0.1 ℃ |
Heat insulation method |
Imported heat shield |
Cooling method |
Water cooling rapid cooling [Water cooler selection] |
Mold size |
400x400mm(MXN) |
Main engine size |
500X480X650(KxPXH) |
Overall size |
850X480X650(LxWXH) |
Power source |
5000 W(220V/110V can be customized) |
Main engine weight |
460Kg |

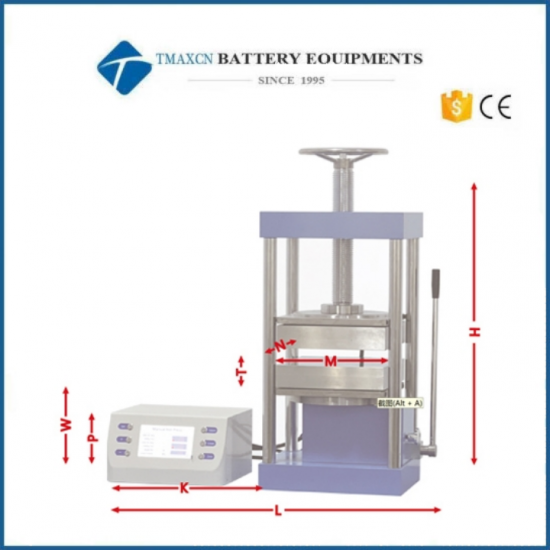

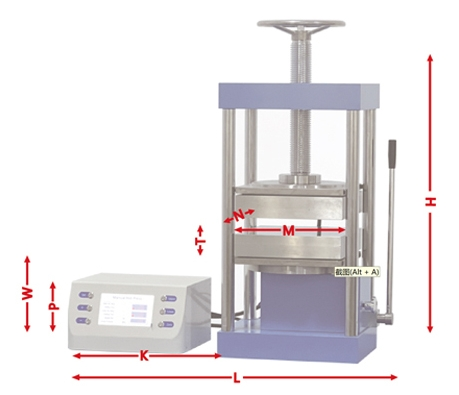

Powder tablet press size diagram |
