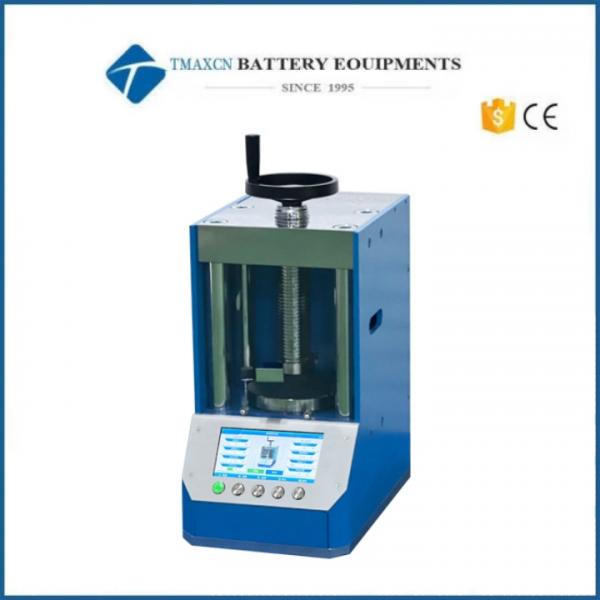

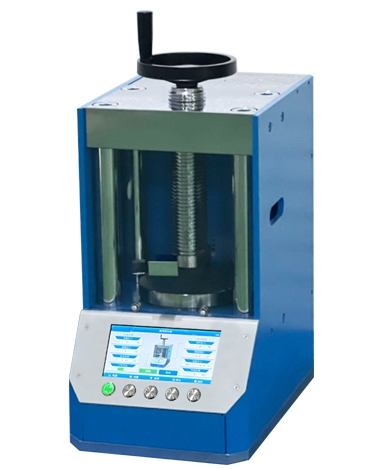

Lab 60T Programmable Automatic Powder Tablet Press

Lab 60T Programmable Automatic Powder Tablet Press

Application field

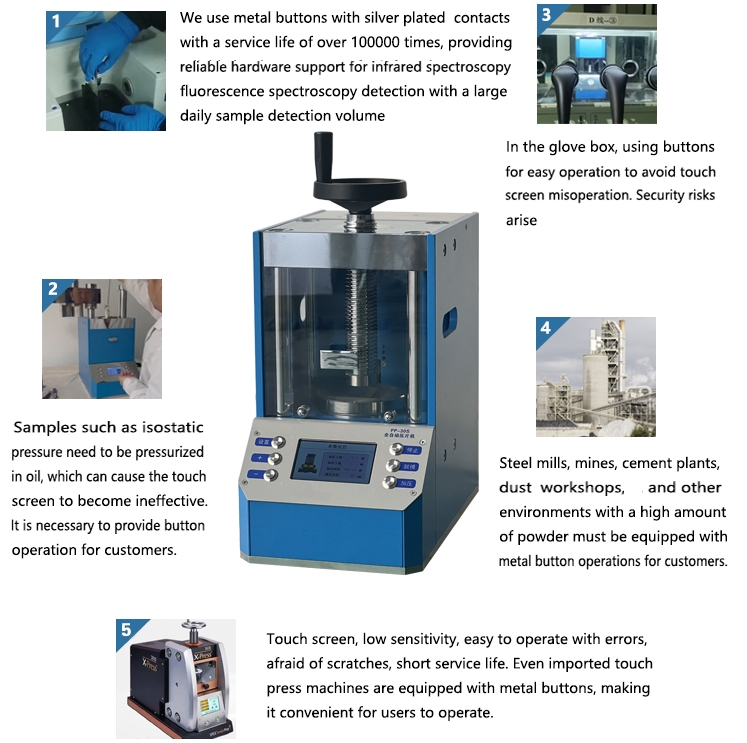

Advantages of metal button (service life > 100,000 times)

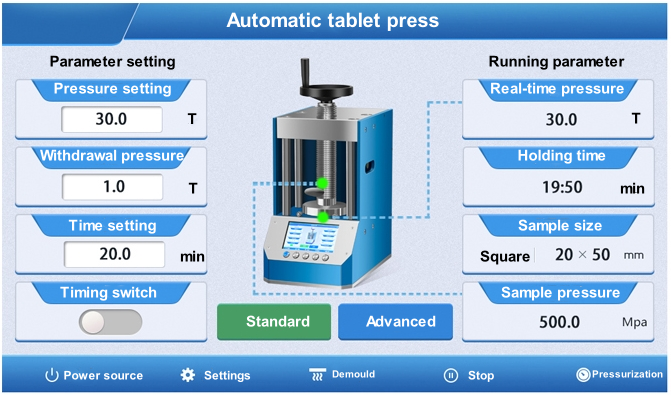

Operation interface (Manual mode)

Standard interface: you can set various parameters, pressure, die withdrawal, time, sample size, etc., in this interface alone

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.

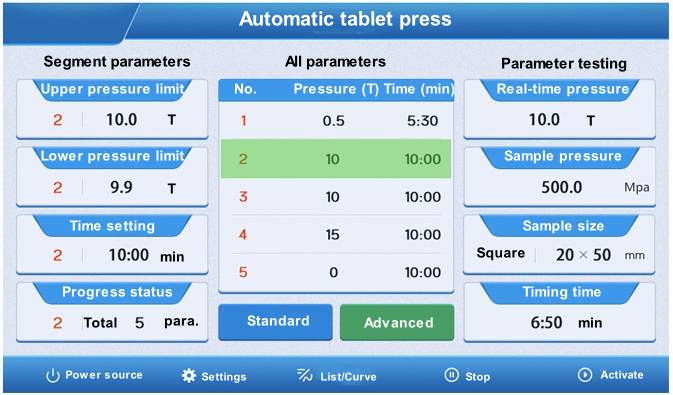

Operation interface (Automatic mode)

Activate button: Can be pressed according to the multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

List/Curve: The current display state can be switched between list and curve

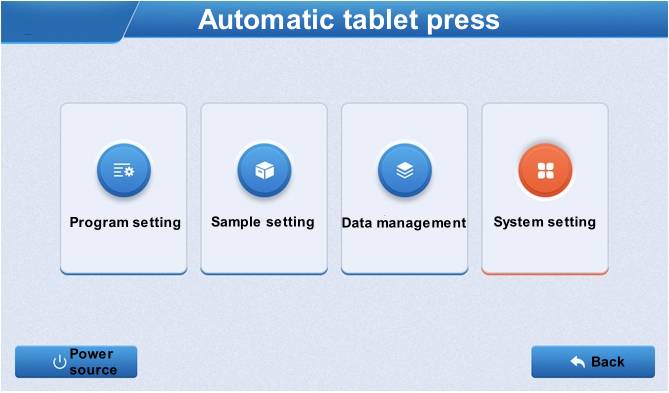

Setting interface

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings: you can set up multiple pressure procedures and pressure holding time.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

Setting interface

Multi-segment program Settings:Up to 5 segments of pressurized programs can be set.

Invoke button: Call the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

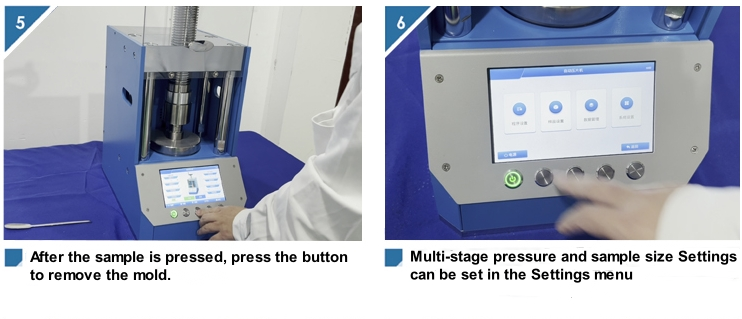

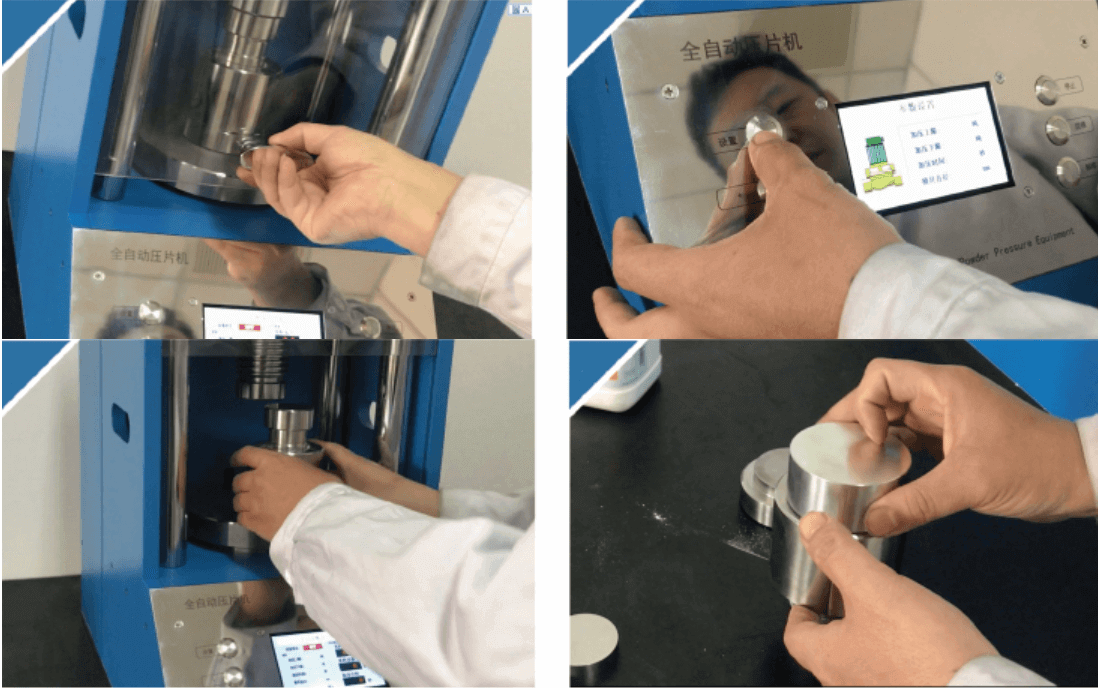

Operation procedure

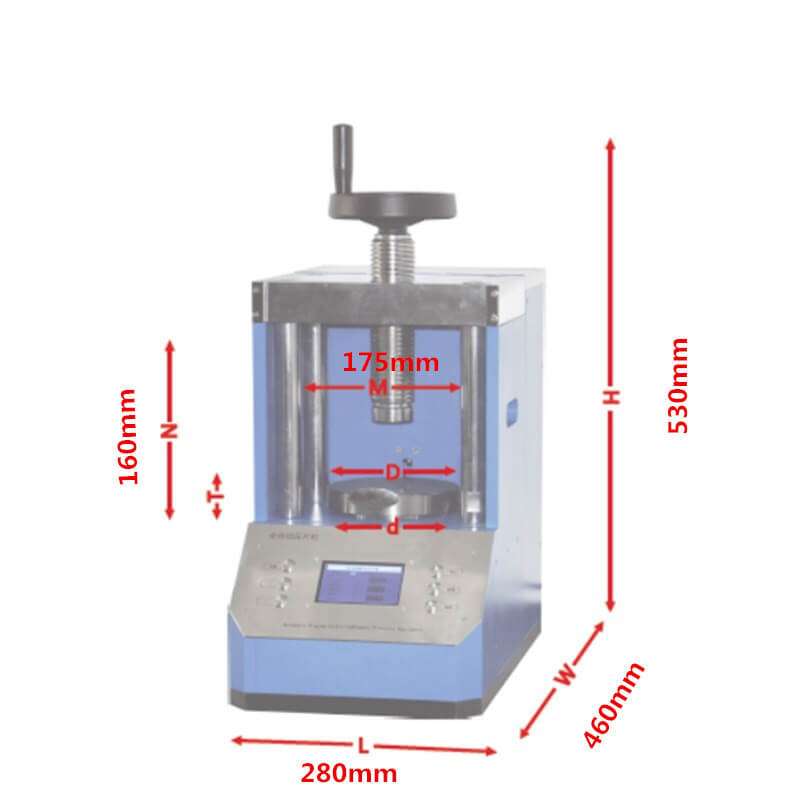

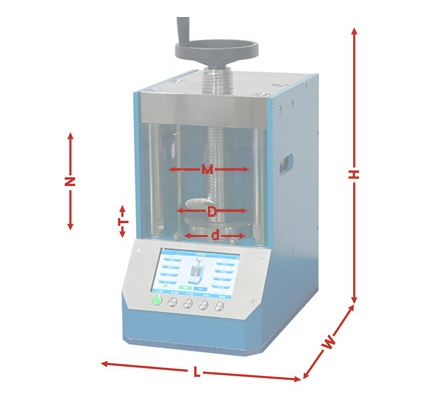

Technical parameter
