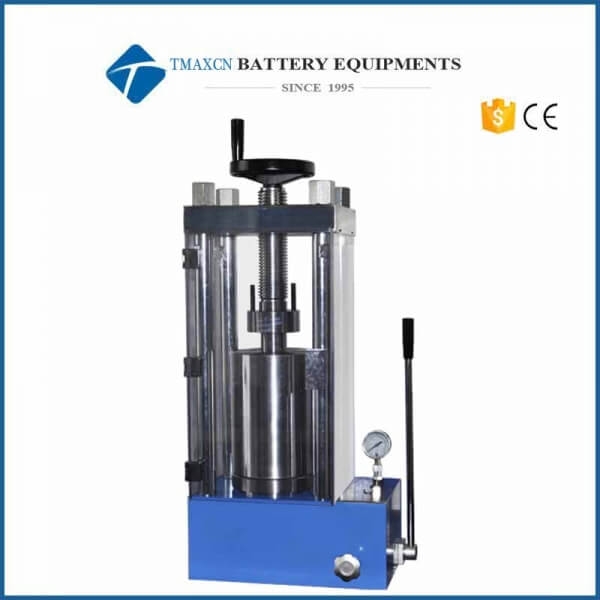

Laboratory Compact Cold Isostatic Press Manual Hydraulic CIP Pressing Machine
Model Number:
TMAX-CIP-40TType:
Laboratory PressNet Weight:
About 130kgCompliance:
CE CertifiedWarranty:
1 yearPlace of Origin:
Fujian, China (Mainland)MOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab Manual CIP (Cold Isostatic Pressing) Press machine with ID 22mm Stainless Steel Tank upto Max.300 Mpa 12TNext:
Lab 60T Programmable Automatic Powder Tablet Press
Laboratory Compact Cold Isostatic Press Manual Hydraulic CIP Pressing Machine
TMAX-CIP-40T is a CE Certified cold isostatic pressing (CIP) machine used for laboratory powder pressing. It has a 50mm ID hydraulic chamber made by ultra strength stainless steel, which can provide isostatic pressure up to 300 Mpa via a 40T manual hydraulic press. It is an excellent tool to prepare high-density compound pellet and small diameter rod. CIP-40J has the small footprint and can be placed in glove-box to prepare air-sensitive materials. A plastic protection cover is included.
Main Features
a).Small size, light weight,No oil, easy to carry.
b).High speed steel imported from Japan
c).Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
d).The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
e).Special plunger, special custom sealed structure, good sealing effect, no oil leakage
f).The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
g).One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
h).Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
i).The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage
40T cold isostatic Pressing machine |
|
Application |
Laboratory CIP Pressing |
Hydraulic pressing range |
0~40T(0-30MPa) |
Piston Diameter |
O.D130mm |
Structure |
oil tank,machine base No sealing connection, no oil leak point |
Pressure gauge |
Digital pressure gauge |
Maximum piston distance |
50mm |
Environment temperature |
10~40 degree |
CIP Pressure range |
0~300MPa |
CIP Tank dimension |
O.D40*150mm |
Outer dimension |
355*215*710mm |
Gross Weight |
130Kg |
Pressure conversion
Real Pressure |
System Pressure |
Tank inner pressure |
3.33T |
2.5MPa |
25MPa |
6.66T |
5MPa |
50MPa |
10T |
7.5MPa |
75MPa |
13.3T |
10MPa |
100MPa |
16.6T |
12.5MPa |
125MPa |
20T |
15MPa |
150MPa |
26.6T |
20MPa |
200MPa |
33.3T |
25MPa |
250MPa |
40T |
30MPa |
300MPa |

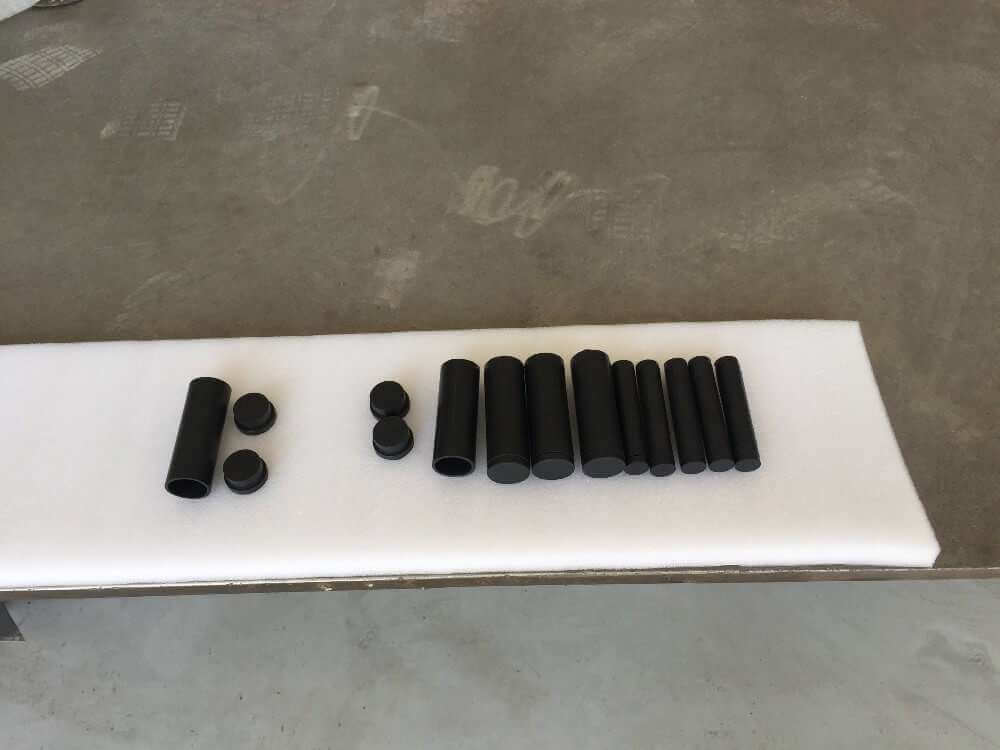

Machine Parts: Rubber Mold, can be used recycle

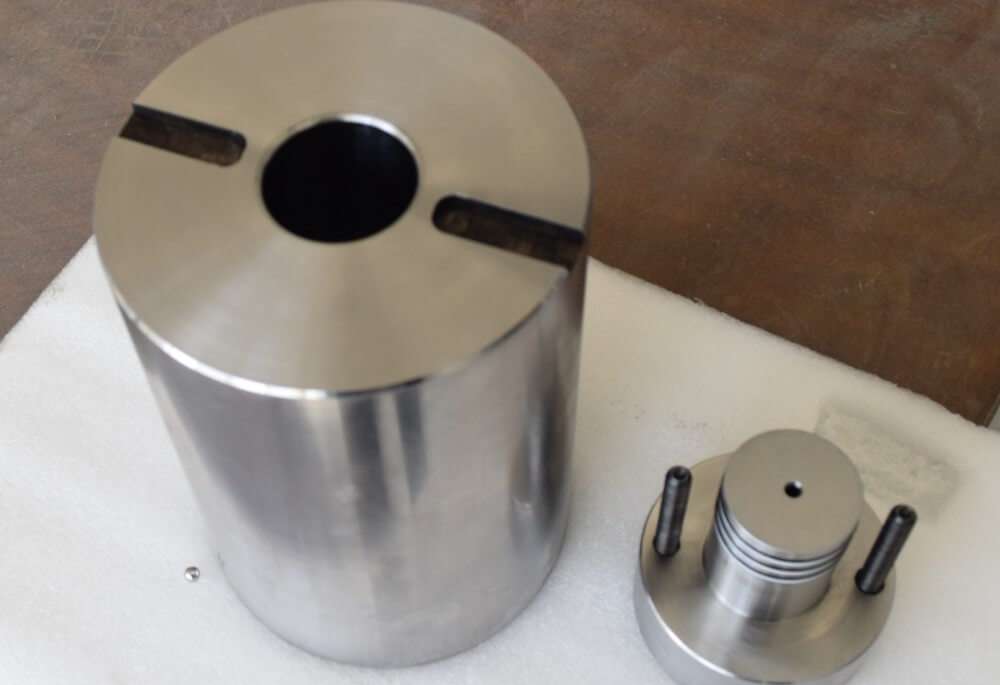

Main Features: CIP Stainless steel tank

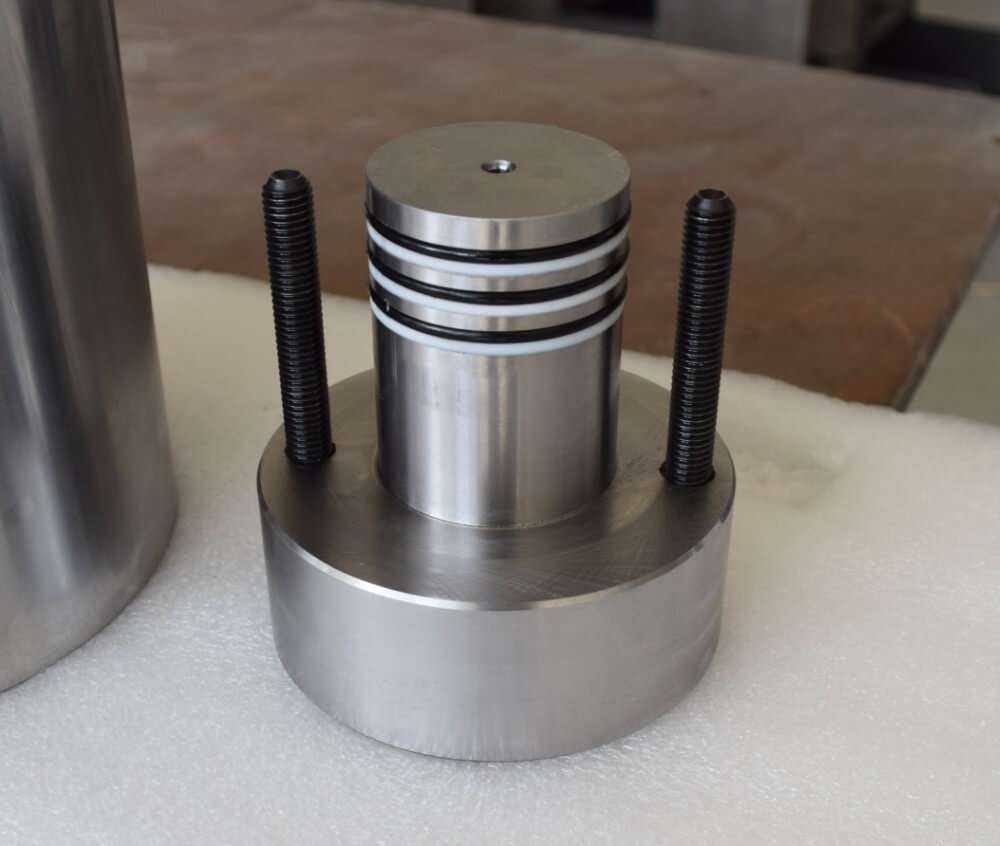

Machine Parts: Sealing cap
