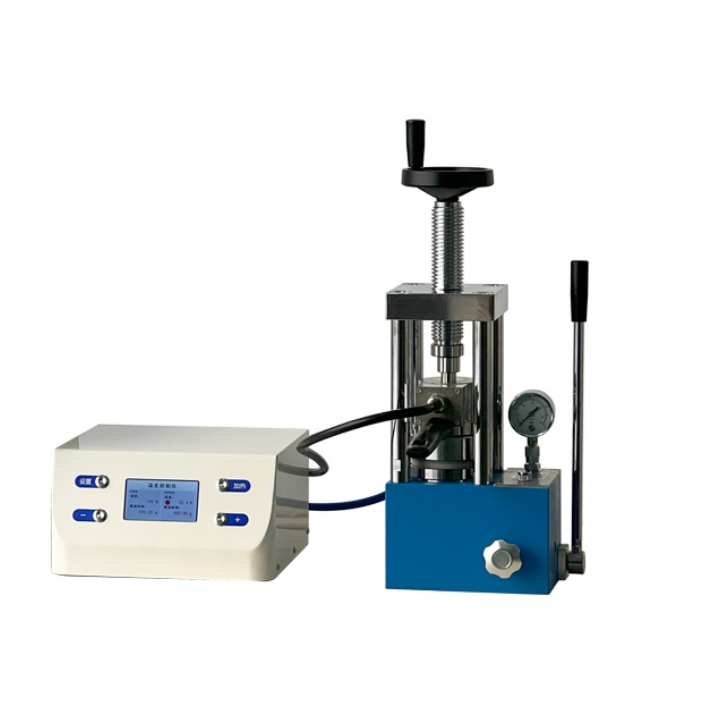

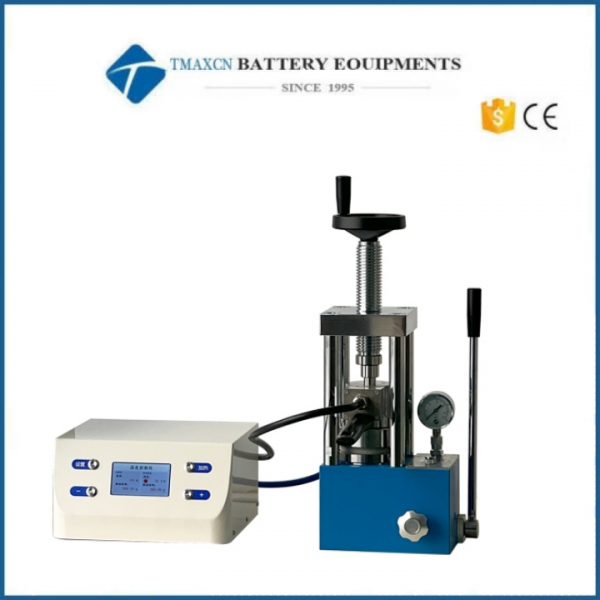

Lab High Temperature 15T Cylindrical Hot Press
Model Number:
TMAX-PHC-600ANet Weight:
400 lbsCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Manual CIP (Cold Isostatic Pressing) Press Machine with 30mm ID VesselNext:
100°C 6T Glove box Hydraulic Lamination Hot Press
Lab High Temperature 15T Cylindrical Hot Press
Technical parameter
Instrument type |
PCH-600A |
Pressure range |
0-15T(0-30MPa) |
Piston diameter |
Chrome plated cylinder φ80mm(d) |
Overall structure |
Main body integrated sealing structure |
Mold heating temperature |
Room temperature -300.0℃/500.0℃ |
Constant temperature time |
1 s to ∞ s |
Temperature control accuracy |
0.1 ℃ |
Heat insulation method |
Imported heat shield |
Cooling method |
Water cooling rapid cooling [Optional water cooler] |
Mold cavity size |
Inner hole <20mm[Larger size can also be customized] |
Main engine size |
245X175X415mm(KxPXH) |
Overall size |
800X470X415mm(LxWXH) |
Power source |
300W (220V/110V can be customized) |
Main engine weight |
60 Kg |

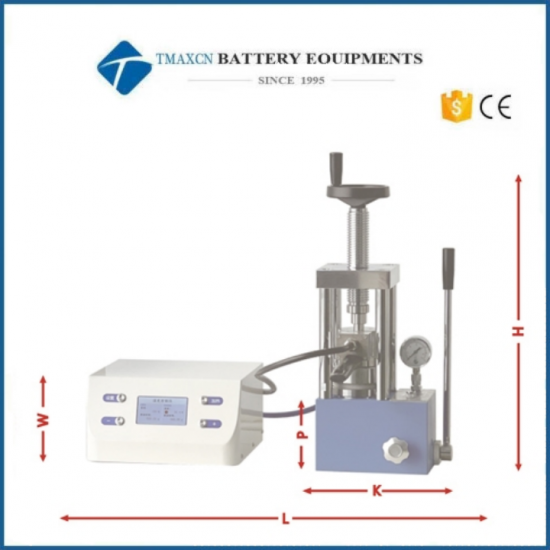

Size diagram of powder tablet press |
|
