Lamination Press

100°C 6T Glove box Hydraulic Lamination Hot Press

  • Model Number:

    YLJ-HP60-LD
  • Net Weight:

    120 lbs
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

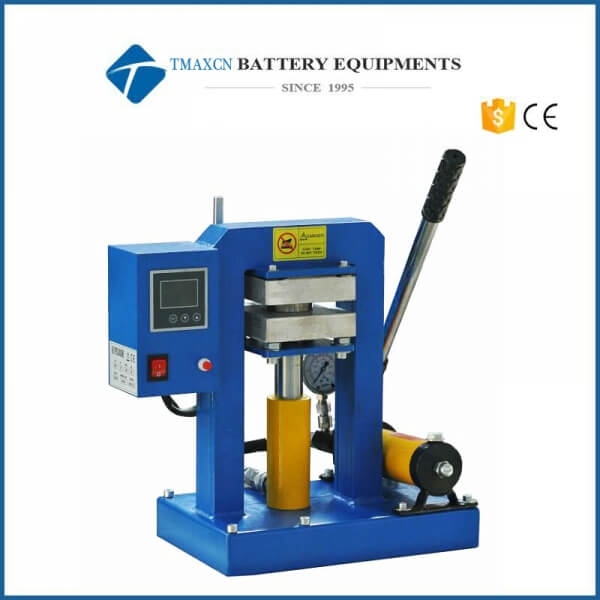

100°C 6T Glove box Hydraulic Lamination Hot Press

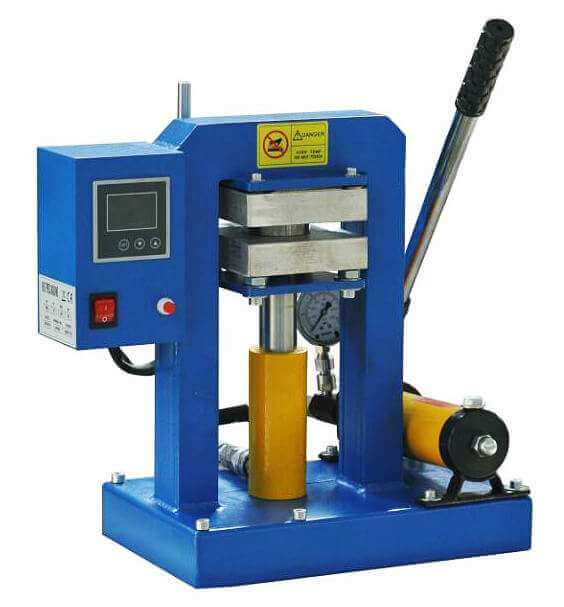

YLJ-HP60-LD is 100°C Max. compact lamination hot press consists of 6 metric ton hydraulic press with two heated platens (120x120mm area). The temperatures of the heated platens are controlled by digital temperature controller up to 100°C. The hot press is designed for preparing electrode & electrolyte of solid and flexible lithium battery.


Specifications:

Feature

  • Heated platens are controlled by two digital temperature controller up to 200°C

Heated Platen

  • Platen Area: 120mm x 120mm
  • Made of Aluminium alloy with inserted heating element
  • Warning: Please don't  press small area die directly against the soft Aluminium alloy surface.  You may add hard steel plate on top and bottom  if press small diameter  die

Max. Working Temperature

  • 100°C Max. (<30 minnutes)
  • 100°C continuous

Temperature Control

  • Digital controller is installed in the control cabinet with 30-segment programmable and auto-tune function
  • Temperature accuracy ±1°C.

Max. Working Pressure

  • 6 Metric Tone (Note: the machine base must be secured to an unmovable & solid table before operation)

Gauge Pressure Value to Force Conversion

Gauge Displayed Pressure Value (Mpa)

12.5

25

37.5

43

Actual Force Applied on the Hydraulic Cylinder (Ton)

1.75

3.5

5.25

6

  • Notes:
    • The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
    • For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:
      •           P = T/(πr^2) x g x 10
    • P: Pressure (MPa) applied on your working piece
    • T: Force (Ton) applied on the Hydraulic Cylinder
    • g: Standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2

Power Requirement

  • 110VAC or 220VAC +/-10%, 50/60Hz, single phase (please select the voltage in the selection bar)
  • 1200 W max,15A circuit breaker is required

Option

  • Optional: Upgrade to Digital Vacuum/Pressure Gauge (100Kp to 30Mp) with Max. Pressure Setting.
  • Optional: NIST certificate Load cell  Pressure Calibration Kit to measure the actual force

Compliance

  • CE Certified

Shipping  Size Weight

  • 120 lbs

Warranty

  • One year limited standard warranty

Application Notes

  • The testings of solid lithium battery requires the cell assembly to be compressed and pressure maintained in order to ensure the good conductivity between the electrode and solid electrolyte. The use of such hot press is ideal for maintaining a constant pressure for the cell, in addition, interface conductivity can be increased under the elevated temperature condition. Please view the pictures below to order the necessary materials for solid lithium battery tests.



Hot Press
