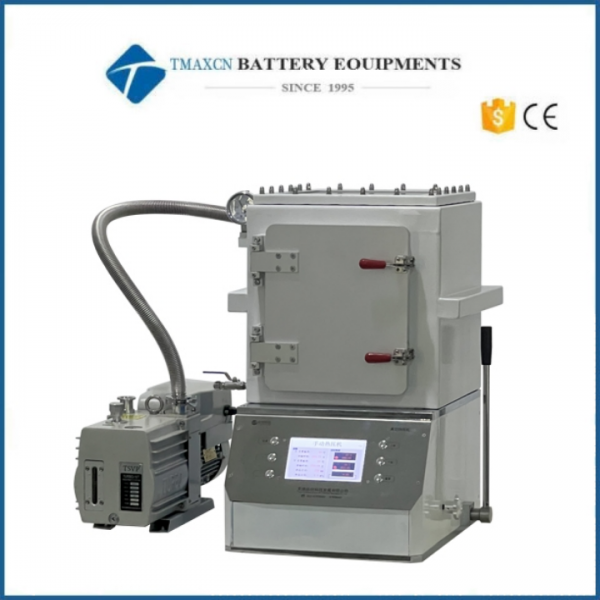

Lab High Temperature Manual Vacuum Hot Press Machine of 10T Pressure
Model Number:
TMAX-PC-600ZCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Lab 60T Automatic Fluorescent Tablet Press with 7-inch Touch ScreenNext:
60T Double Plate Manual Hot Press with Manual And Automatic Operation Interface
Lab High Temperature Manual Vacuum Hot Press Machine of 10T Pressure
A. Application field
Our press is small in size, large in pressure, high in pressure control precision, and has been applied to various industries such as scientific research, teaching, testing, catalysis, chemical industry, etc. In addition, this product can also be used with Fourier infrared spectrometer, fluorescence spectrum supporting sample preparation, can replace similar imported products.
B. Technical parameter
Instrument type |
PC-600Z |
Pressure range |
0-10.0 tons |
Pressurization process |
Manual pressure |
Holding time |
1 s to ∞ s |
Heating temperature |
Up to 500℃ |
Heating plate |
180x180mm,200x200mm |
Real empty box material |
SUS 304(Stainless steel) |
Studio size |
400x400x400mm |
Door dimension |
300x350mm |
Vacuum degree |
-0.1MPa |
Overall size |
450x550x850(LxWxH) |
Power source |
220V 50Hz(110V supported) |
Hot press size diagram |
|
C. Setting interface
Settings
Under the operation interface, press the setting button to enter the setting interface, press the setting button again, move the setting content, move to the mold diameter, press the setting button again to return to the operation interface. Note: When the time is set to "0", the setting time is infinite.
+
On the operation screen, press the + key to add the number.
-
On the operation screen, press _ to reduce the number of Settings.
D. Operating interface
Upper plate
Press the "Upper plate" button in the operation interface, and when the upper heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Upper plate" button again to stop heating the upper heating plate. During the heating process, all setting buttons are invalid.
Lower plate
Press the "Lower plate" button in the operation interface, and after the lower heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Lower plate" button again to stop heating the Lower heating plate. During the heating process, all setting buttons are invalid.
Zero setting
If the sample is not in contact, but the device has shown pressure, it may be the weight of the heating plate, we can press the "zero" button to clear the pressure. To make our samples more accurate.
E. Mold operation diagram
F. Operation procedure
![](https://www.lithmachine.com/js/htmledit/kindeditor/attached/20240708/20240708160650_29488.png)
