Fluorescent Tablet Press

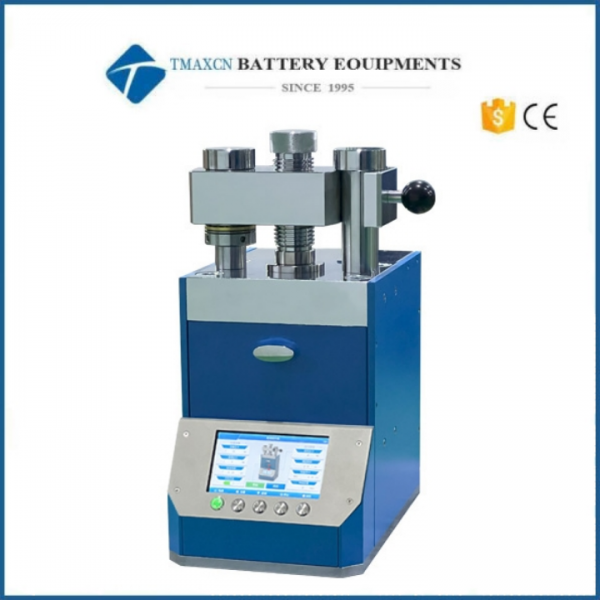

Lab 60T Automatic Fluorescent Tablet Press with 7-inch Touch Screen

  • Model Number:

    TMAX-PP-60X
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Lab 60T Automatic Fluorescent Tablet Press with 7-inch Touch Screen


Press



Operation interface (Manual mode)



Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.





Operation interface (Automatic mode)



Activate button: It can be pressurized according to a multi-stage pressurization program.

Stop button: During the pressurization process, you can stop the pressurization process.

List/Curve: The current display state can be switched between list and curve





Operation steps (Boric acid mold)















Operation Procedure (Steel ring mold)





Operation procedure(Plastic ring mold)





Technical parameter

Instrument type

PP-60X

Pressure range

0-60.0 tons

Pressurization process

Common or connected multi-section pressure and can display pressure curves

Holding time

1 s to ∞ s

Pressure conversion

Program automatically converts mold pressure

Liquid crystal display

7 inch (IPS HD) touch screen

Metal keying

Silver-plated contact, service life > 100,000 times

Built-in mold

Boric acid/steel ring/plastic ring mold (built-in 1 set of mold)

Sample size

Standard φ40mm

Mold material

440C mold steel

Demoulding mode

Automatic release

Overall dimension

300X520X580mm(LXWXH)

Equipment power supply

550W(220V/110 can be customized)

Equipment weight

180Kg

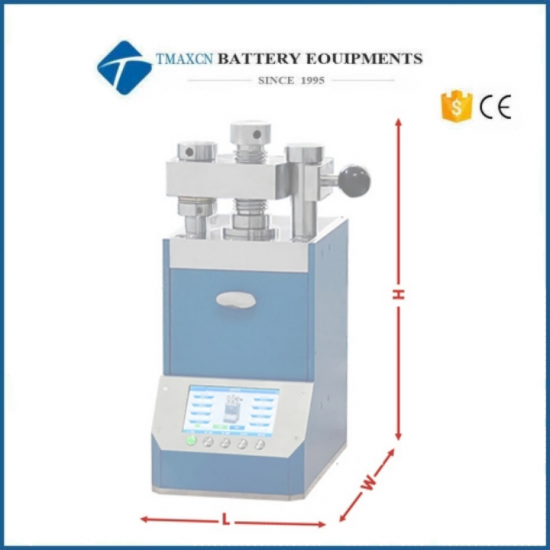

Powder tablet press size diagram
