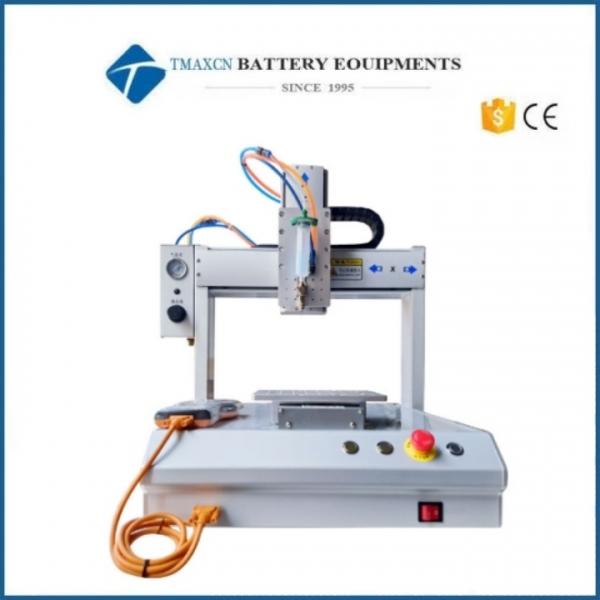

Lab 30ML Cartridge Dispensing Type Automatic Dispensing Machine with Diverse Movable Graphic Trajectory

Model name

KT-DJ331 automatic dispensing machine

Motion range X/Y/Z(mm)

300/300/100

Programming mode

Teach programming or graphic import

Movable graphic trajectory

Point, line, arc, circle, curve, multi-segment line, helix, ellipse

Maximum load

Z-axis 3kg/ Y-axis 5KG

Moving speed (mm/sec)

0-300.

Equipment repetition accuracy

±0.02mm

Dispensing type

30ML cartridge type

Control mode

Handheld instructional programming box

Glue repetition accuracy

±0.005% (depending on fluid consistency)

Number of program records

≤999 group

Fixed mode

Z-axis and Y-axis are equipped with multi-function plates

Motor type

Leiser drive/stepper motor

Transmission mode

Silver linear double guide + steel wire synchronous belt three-axis linkage

Input power supply

Full voltage AC110V ~ 220V

External control interface

RS232

Overall dimension

600*620*650

Weight (kg)

About 60KG
