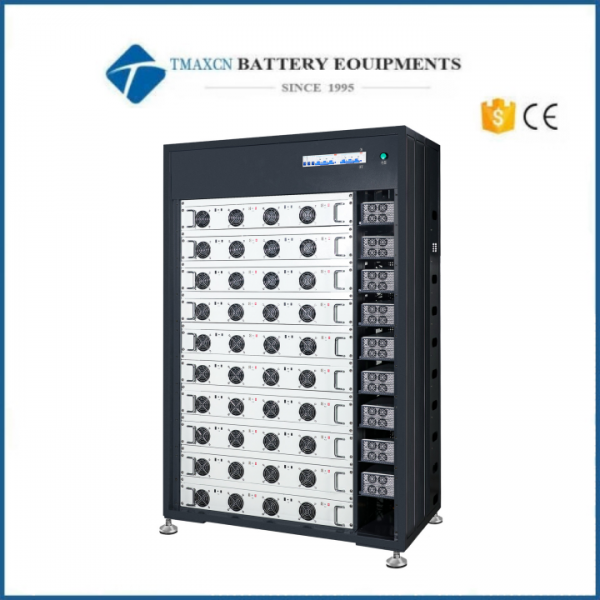

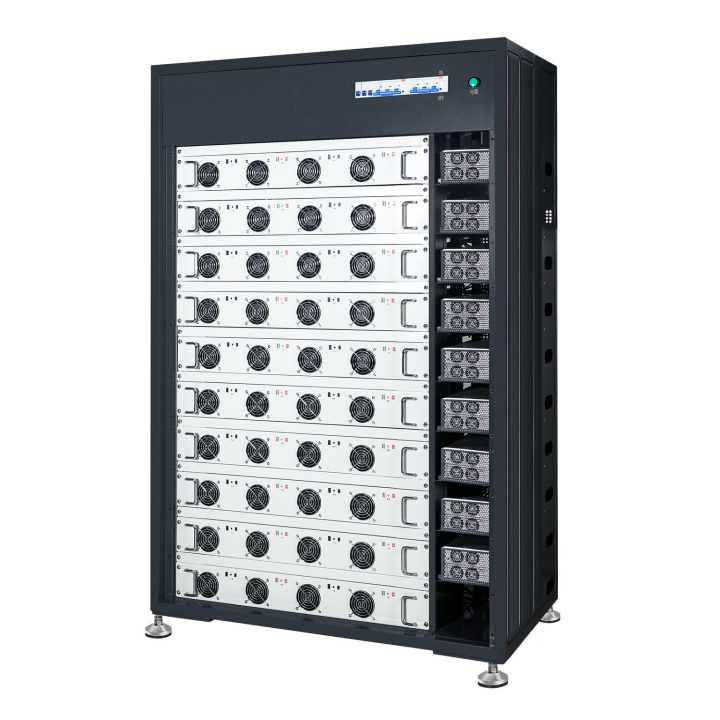

Energy Regenerative Type Battery Pack Aging Machine

Ⅰ、Application scope:

This device is suitable for:

Production inspection of battery modules in battery production enterprises.

High current charging and discharging detection of EV/HEV power battery system.

Perform battery simulation testing on actual road conditions

Daily maintenance of battery modules in battery factories and charging stations.

Research institutions conduct high current charging and discharging detection, as well as battery performance testing on battery modules.

Ⅱ、Product Features

Using a 32-bit ARM main control chip	Significantly improves execution speed and accurately records changes in battery voltage status
Scan the code to search for data	Accurate retrieval of battery aging parameters on the computer through barcode scanning
Protection and abnormal warning	Equipped with anti reverse connection function, voltage upper and lower limit protection setting protection, testing abnormal alarm prompt
Energy feedback	Energy feedback and bidirectional energy-saving of charging and discharging can save a lot of electricity costs, as well as save a lot of energy consumption and air conditioning electricity costs caused by heat generation
CCCV charging	During the charging process, there is no gap transition and no voltage or current surge. It can effectively prevent protection actions and secondary protection actions caused by islanding effects on PCBs, or overshoot caused by thermal concentration of electrode ears due to peak currents. Stable current and voltage sampling, high accuracy, and good long-term stability.
Voltage clamp	Voltage clamp is used to set the voltage to prevent damage to the battery or battery pack protection board during battery protection operations or equipment abnormalities during charging
Customizable	① Battery pack temperature sampling function; ② Single cell voltage sampling function of battery pack; ③ Frequency output function; ④ Switch action function; ⑤ Connect MES system functions

Ⅲ、Technical Parameter

Product name	Feedback type battery pack aging machine	Equipment operating temperature	0-35℃
Model	TMAX-8002 100V20A	Operating noise	≦65-75dB
Chassis size	H：1741mm，L：1092mm，W：600mm	Voltage range	0-100V
Equipment weight	≦353.5KG	Charging and discharging current	0.2-20A continuously adjustable
Operating ambient temperature	1-50°℃	Voltage and current resolution	0.1mV，0.1mA
Operating environment humidity	0-90%RH	Accuracy	±0.1%
Input power supply	220V/50Hz small power 380V/50Hz high-power	Paralleling	4 channels

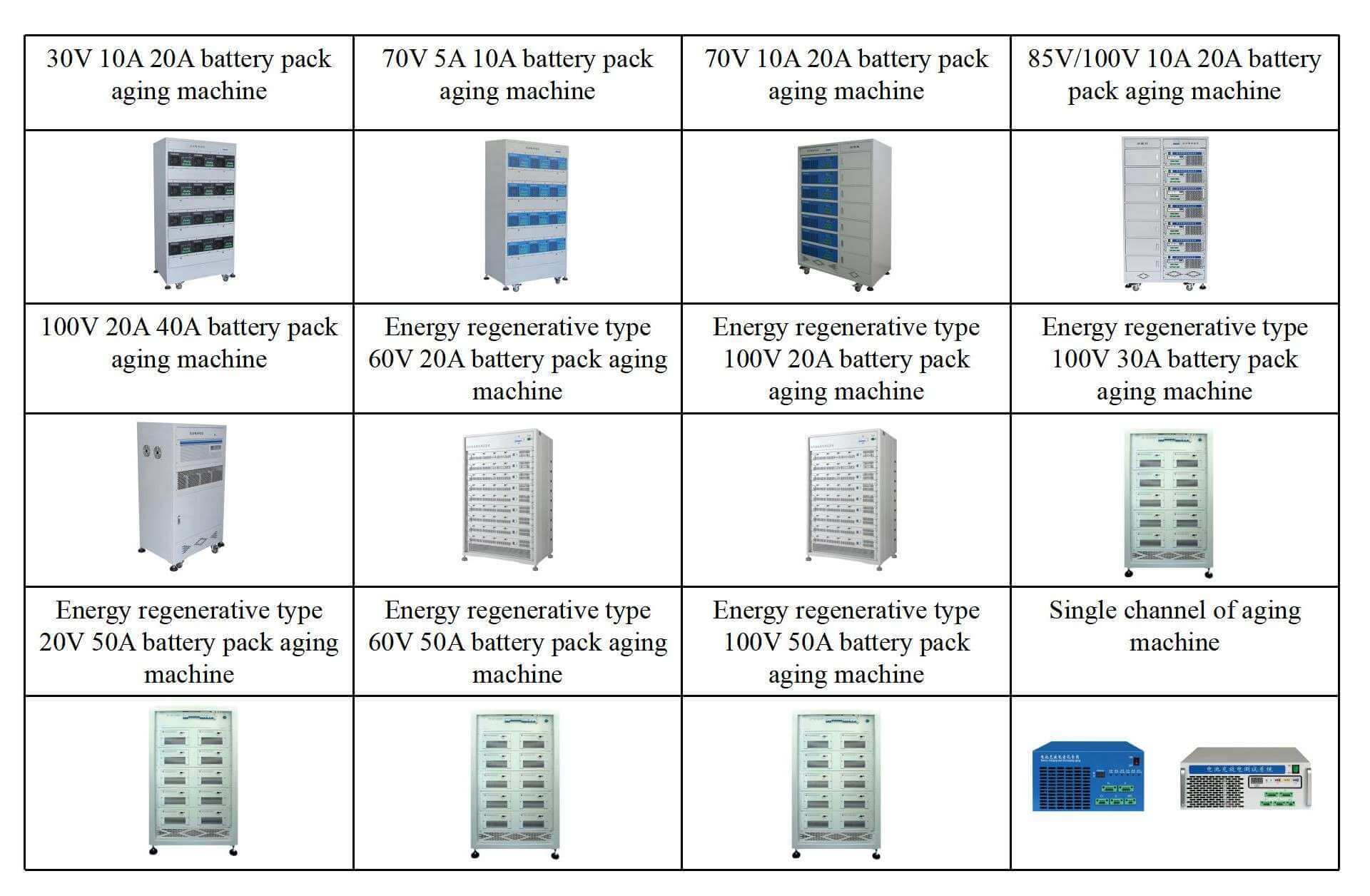

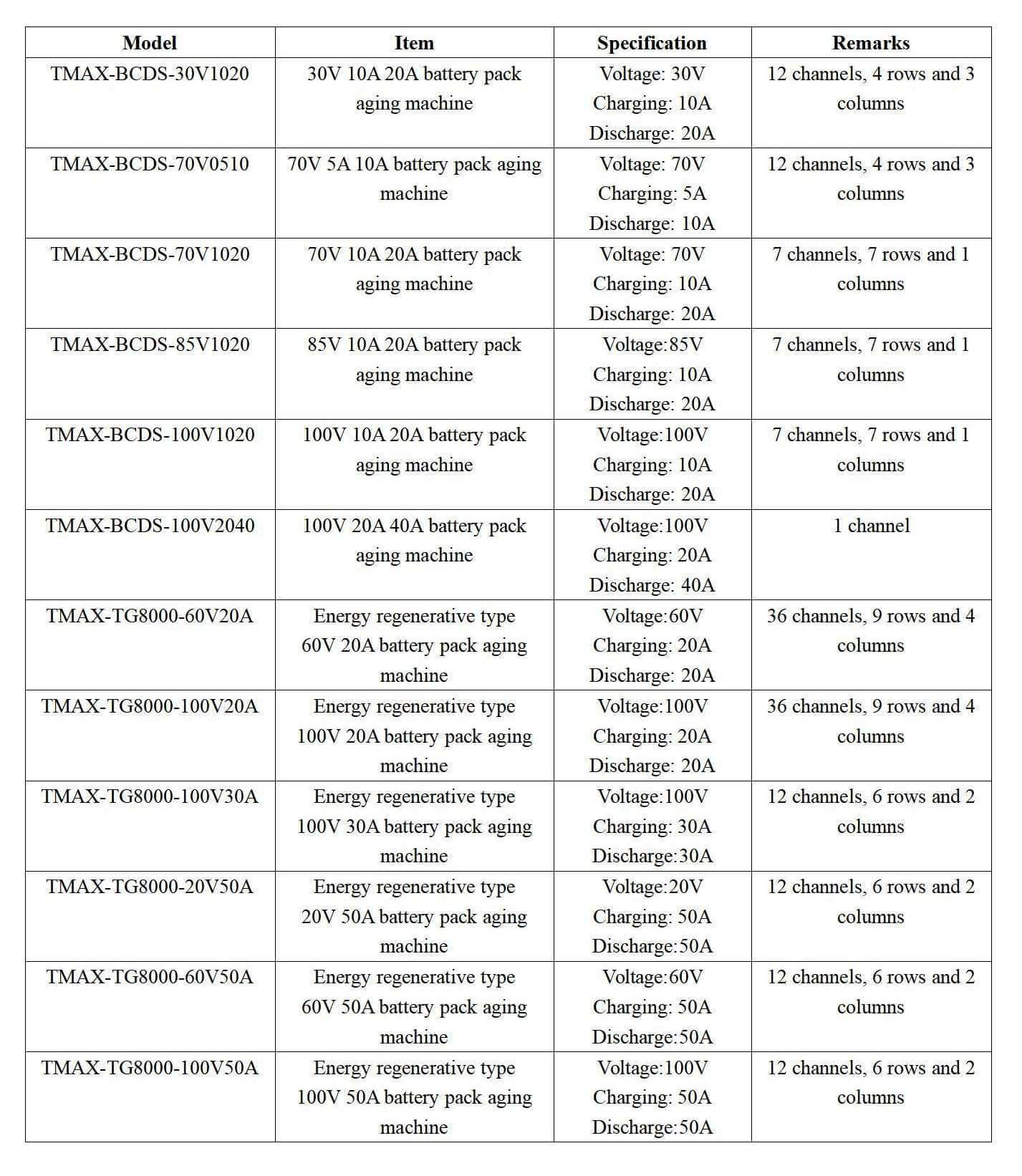

 Ⅳ、 Selection of battery pack charge and discharge aging machine:
