5V 10A Tester

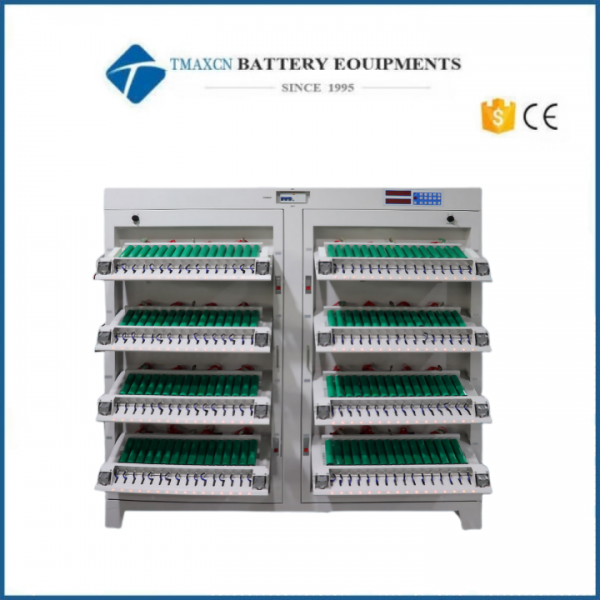

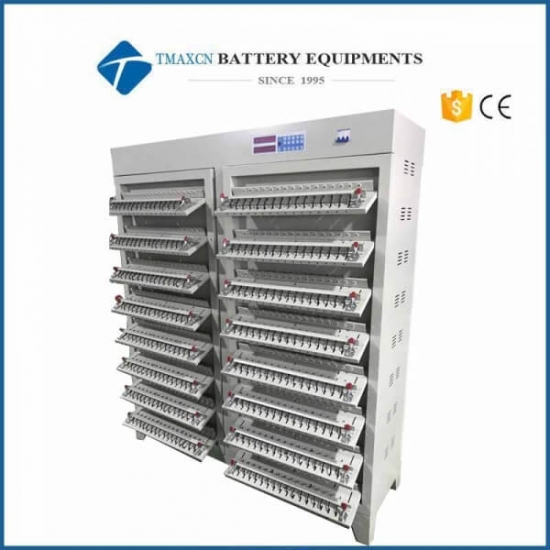

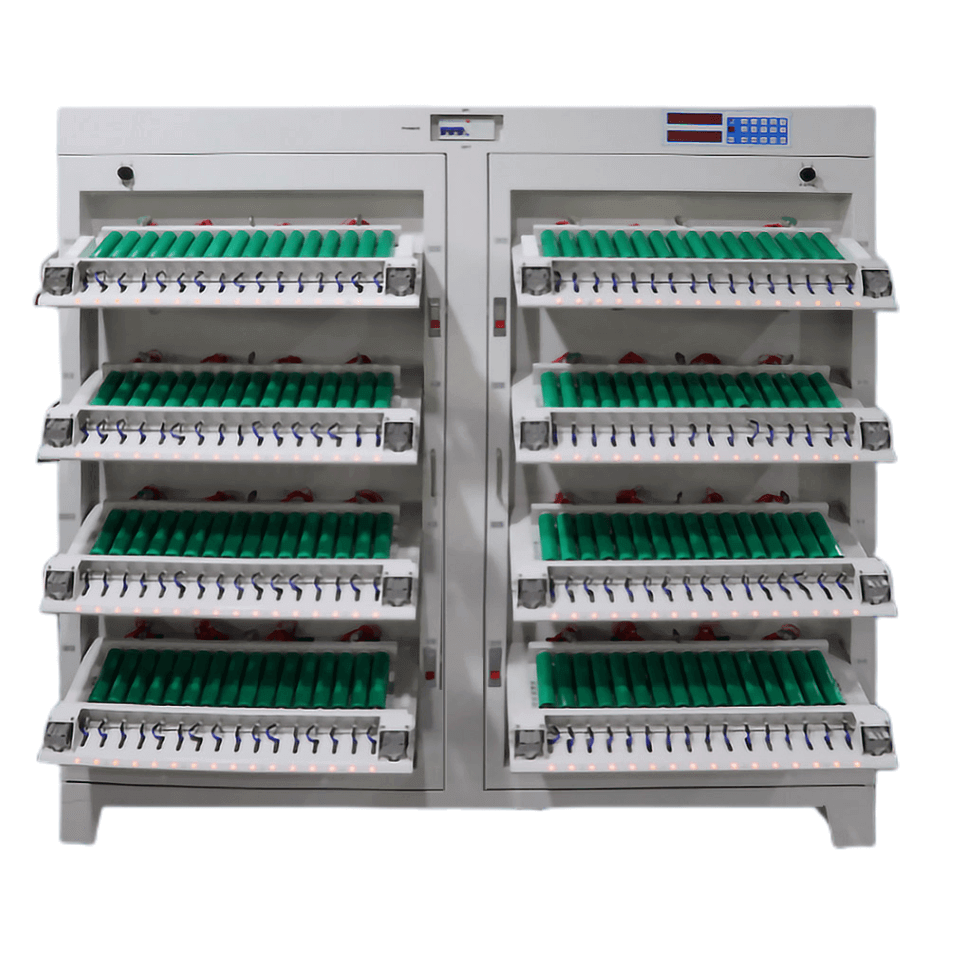

256 Channel 5V 10A Lithium Cell Tester with Horizontal Tray and Energy Regenative Function

  • Model Number:

    TMAX-S21-256/10A

  • Dimension(L*W*H):

    1440 L)× 500 W× 1840 H

  • Compliance:

    CE Certified

  • Warranty:

    2 Year limited warranty with lifetime support

  • Place of Origin:

    China

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details


256 Channel 5V 10A Lithium Cell Tester with Horizontal Tray and Energy Regenative Function


Ⅰ.Main Function

● Modular manufacturing is adopted, with strong universality and easy maintenance.

● Four wire method is adopted to improve the measurement accuracy.

● Each battery channel has a completely independent constant current and voltage source, which forms a loop and does not affect each other.

● The equipment adopts the control mode of whole machine process transmission.

● The sampling speed is fast, and the inspection time of the whole cabinet is ≤8s.

● Complete windows platform software with powerful functions, friendly man-machine interface and simple operation. The upper computer can set up to 64 work steps and 256 cycles.

Each formation step can be selected by four attributes: constant current charging, constant voltage charging, constant current discharge and sleep.

● Be able to draw the dynamic curve of each battery in real time,  including voltage / time curve, current / time curve, capacity / time curve, energy / time curve, capacity / voltage curve and other functional menus.

● LED indicator is used to indicate the working state of the battery.

● Communication mode: TCP / IP.

● Each upper computer can monitor up to 22 devices.

● It has the function of data power failure protection, and can continue to operate when there is an incoming call.

● The lower computer can work offline for a long time.

● The software has the functions of file editing and modification of chemical composition and volume separation process library, new    monitoring, opening and closing documents, printing and setting.


Ⅱ、Specification

Model

TMAX-S21-256/ 10A

Number of Device Channels

256 Channels

Charge/Discharge Current Range (mA)

20~10000

Current Measurement Accuracy (mA)

0. 1%FS

Current Resolution (mA)

1mA

Voltage Measurement Range (mV)

20~4950

Voltage Discharge Range (mV)

2000~4500

Voltage Measurement Accuracy (mV)

0. 1%FS

Voltage Resolution (mV)

0 1

Time Measurement Range and Accuracy

30000 min/work step;

Accuracy±0. 1%



Work Step Content

Constant current charging, constant  current constant voltage charging,    constant current discharge, standing.

Work Step End Condition

Current, voltage, time, capacity.

Maximum Set Number of Steps

64

Maximum Cycle Settings

256



Curve Display

Charge discharge current curve, charge discharge voltage curve, capacity

curve.





Volume Dividing Mode

Capacity capacity, time capacity,  capacity + curve capacity, time + curve capacity, capacity + voltage capacity,   fixed-point voltage capacity.



Protection Mode

Over current, under current,

over-voltage, under voltage, over capacity and leakage current, in which charging over-voltage / discharging under voltage are protected by      hardware and software.





Data Statistics

Open circuit voltage, average voltage, working time, current, capacity and platform capacity of each battery; Detailed curve and data of each work step; Count the number of batteries in each capacity segment, etc

Patrol Inspection Speed (s)

(Time for current and voltage

detection of all batteries)



8

Communication Mode

TCP/IP

Number of Devices that can be Controlled by Each Computer

1~22

Calibration Mode

Automatic calibration with calibration tooling

Battery Clamp

Four wire fixture

Compatible Battery Height

0~90mm

Battery Clamp Spacing

70mm

Distance Between Bottom Row and Ground



330mm

Equipment Size (mm) (Reference)

1440 (L)×500 (W)×1840 (H)

Total Power of Equipment (KW)

17











Power Efficiency

The charging and discharging power supply adopts energy-saving power  supply, and the battery discharge  energy is fed back to the power grid.

The maximum efficiency of power  charging output shall not be less than 70%, and the maximum efficiency of power recovery shall not be less than 65%

Equipment Stability

The equipment has good long-term operation stability. After precision  calibration, it shall not exceed the agreed precision control range within 6 months.

Working Power Supply

Three phase AC380V  ± 5% 50Hz


Ⅲ、AC / DC Bidirectional Power Supply

The equipment power supply adopts energy-saving AC / DC bidirectional power supply with high charging efficiency, and the battery discharge energy is fed back to the power grid.

Part of the battery discharge energy is used by the power supply itself, the other part is used by other charging equipment, and the rest is fed back to the power grid for other equipment.

5V 10A Cell Tester

Related Tags :

5V 10A cell tester 5V 10A Battery Tester 256 Channel 5V 10A Tester
