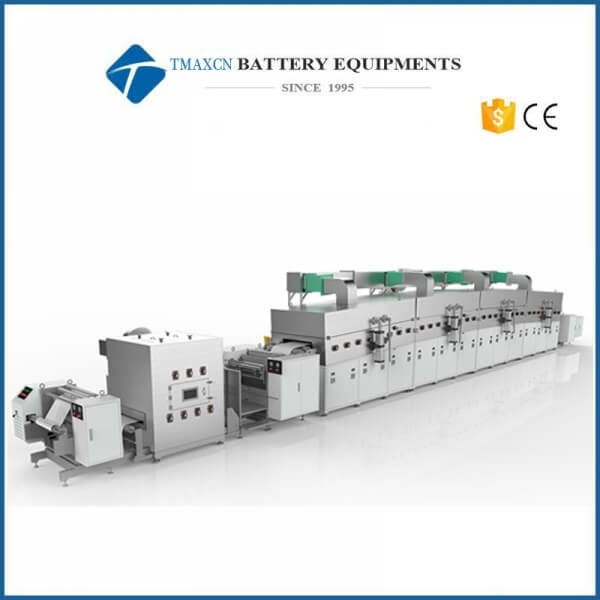

Diaphragm Coating Machine

Diaphragm Coating Machine For Production

  • Model Number:

    TMAX-Diaphragm3
  • Dimension(L*W*H):

    600mm、900mm、1200mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Diaphragm Coating Machine For Production



Diaphragm Coating Machine

NO.

Project

Technical Parameters

1

Process adaptability

Lithium battery separator coating

2

Coating method

Continuous coating

3

Rewinding volume configuration

Single-axis / dual-axis manual roll change

4

Substrate processing

Preheating oven/ironing roller (surface leveling)

5

heating method

Electric heating / steam heating / oil heating

6

Oven configuration

Curved active over roller, length optional

7

Mechanical speed

Coating speed +10%

8

Coating speed

50m/min, 80m/min, 100m/min (depending on the model)

9

Coating width

00mm900mm1200mm

10

Coating thickness

--

11

Thickness accuracy

±0.5μm (when the coating thickness is greater than 1um)



Advantage

1.      System controlling is make it easy to operate, and the touch screen interface is simple and easy to understand.

2.      Pendulum roller structure and closed loop tension control system to achieve low tension operation

3.      The problem of substrate irregularity can be treated by preheating oven, and the scope of use of equipment can be improved.

4.     The Fourth of company's research and production of closed cavity, scraping uniform, cleaning and replacement convenience.
