Automatic Vacuum Sealing Machine for Pouch Cell Battery
Model Number:
TMAX-VacuumsDimension(L*W*H):
700 mm(L) x 850 mm(W) x 1700 mm(H)Net Weight:
500kgCompliance:
CE CertifiedWarranty:
Two Years Limited Warranty With Lifetime SupportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Product Details

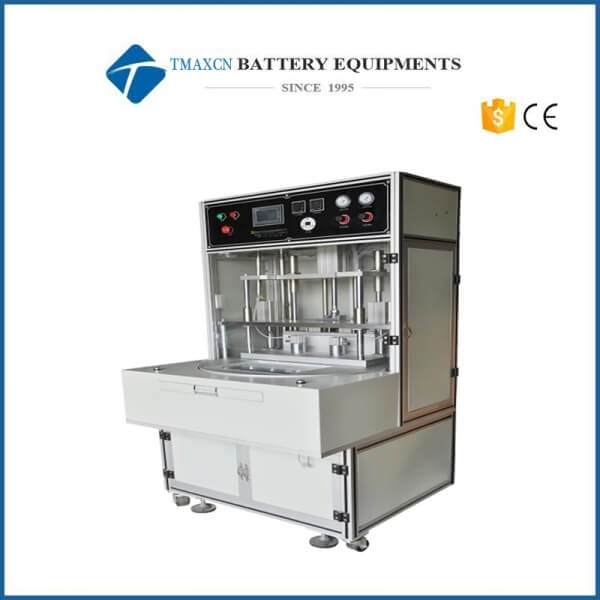

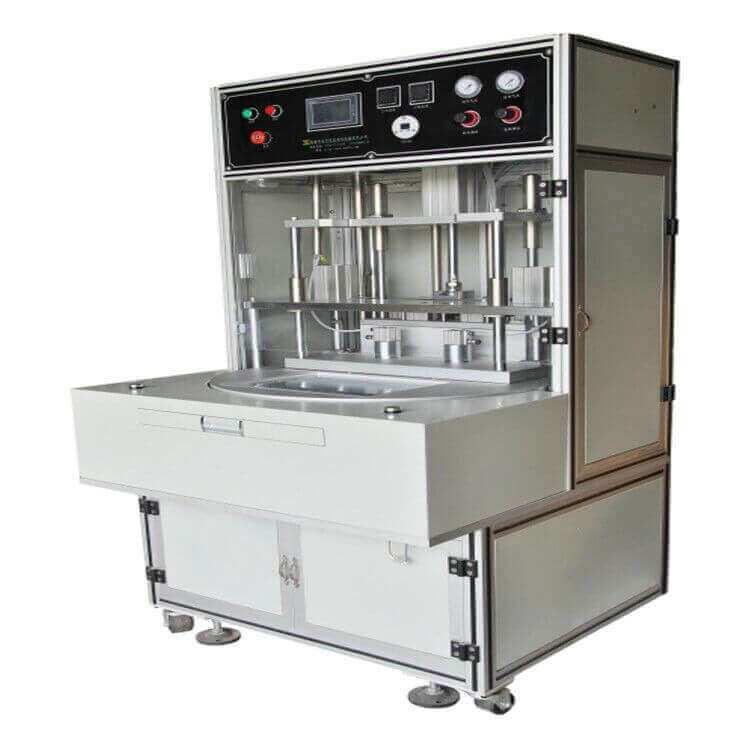

Automatic Vacuum Sealing Machine for Pouch Cell Battery
SPECIFICATIONS:
| Power Supply |
AC 220V 50/60Hz Single Phase |
| Max. Power |
1,500 W |
| Air Pressure |
0.5 ~ 0.8 MPa |
Sealing Temperature |
Max 250℃; Accuracy: 2.5℃ |
| Cell Size |
L 350 mm x W 180 mm x H 12 mm |
| Sealing Width |
6 mm |
| Sealing Length |
350 mm |
| Heating Time |
0 - 99 Seconds Adjustable |
| Sealing Blade |
With auto-piercing function |
| Vacuum Level |
Max. -95 Kpa |
| Warranty |
One Year limited warranty and lifetime
support |
| Product Dimensions |
700 mm(L) x 850 mm(W) x 1700 mm(H) |
| Net Weight |
500 kg |
