Gap Coating Machine

Vertical Plate Gap Coating Machine

  • Model Number:

    TMAX-Vertical-Plate3
  • Dimension(L*W*H):

    500mm/600mm /650mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Gap Coating Machine


Vertical plate gap coating machine


No.

Project

Technical Parameters

1

Process adaptability

Lithium battery pole piece coating

2

Coating method

Continuous coating / gap coating

3

Rewinding volume configuration

Single-axis/two-axis manual roll change, automatic roll change

4

Heating method

Electric heating / steam heating / oil heating

5

Oven configuration

Active over roller + suspension oven, length optional

6

Mechanical speed

Coating speed +10%

7

Coating speed

1~15m/min (depending on the model)

8

Coating width

500mm,600mm,650mm

9

Coating thickness

50um

10

Thickness accuracy

±0.5μm (when the coating thickness is greater than 1um)


Advantage

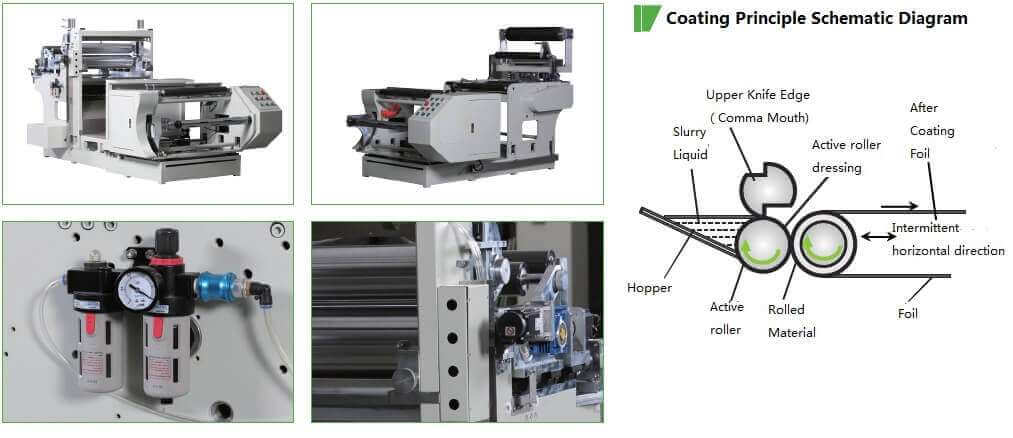

1.       Steel roller, rubber roller, scraper installation structure is simple, easy to maintain and maintain

2.        Control system is easy to operate, the touch screen interface is simple and easy to understand

3.       Having a thickness head and tail thickness adjustment, automatic knife gap adjustment closed loop tension control system applied length-measuring function (optional), and negative face of homogeneous systems, the oven temperature protection system, online defect inspection system (optional)
