Electrode Slitting Machine

Battery Electrode and Separator Slitter Slitting Machine

  • Model Number:

    MSK-300
  • Input Power:

    100W
  • Dimension(L*W*H):

    843 x 1010 x 480
  • Net Weight:

    110kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited warranty and lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

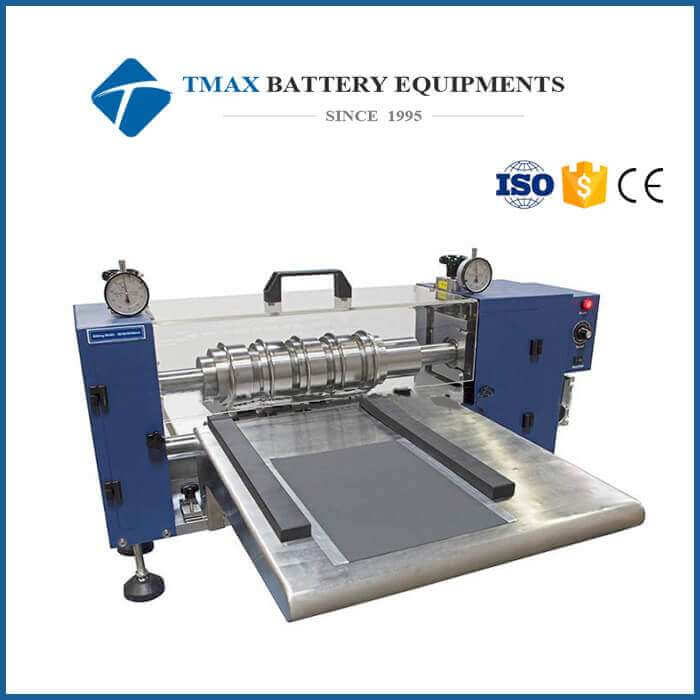

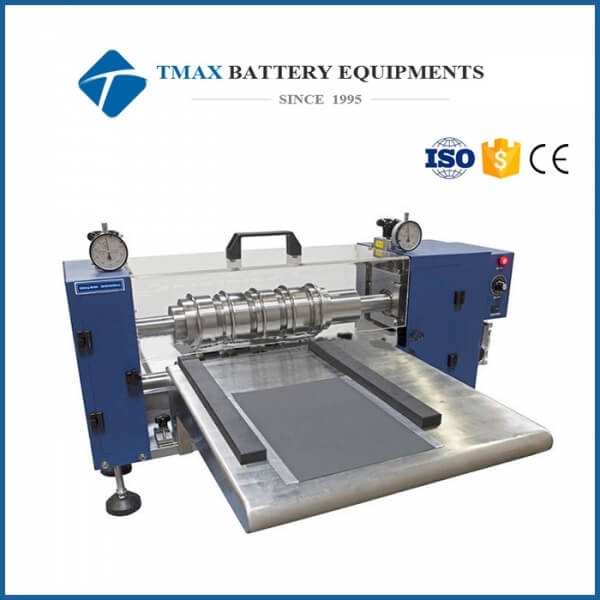

Battery Electrode and Separator Slitter Slitting Machine


The slitting machine MSK-300 is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.


SPECIFICATIONS:

Model

Semi Automatic slitting Machine MSK-300

Warranty

One year limited manufacture warranty with lifetime support

Working Voltage

Machine Input: 22-24V DC with 5mm barrel connector

Power Input: 110-240V AC , which can be used worldwide

Max. Power Consumption

100W

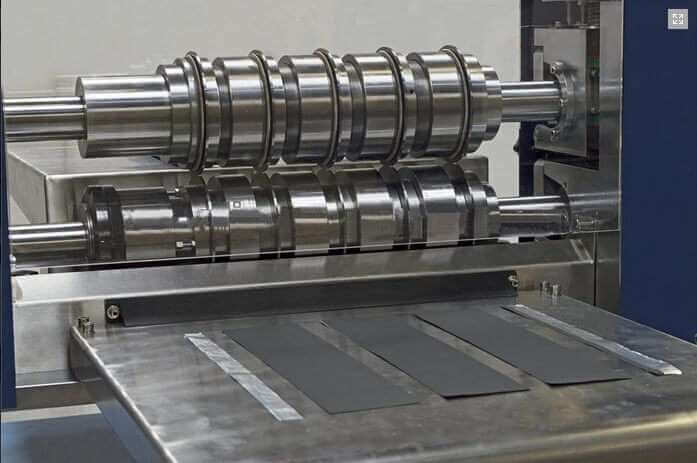

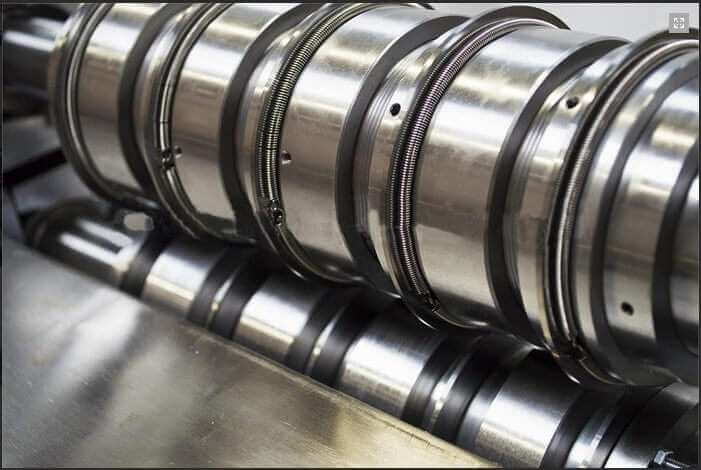

Cutting Method

Two round blades rolling to cut

Blade Materials: Tungsten alloys

Blade Diameter: 100mm

Cutting Width

A. 4 sets of slitting blades (two blades with slitting width of 58mm,

and another two with slitting width of 56 mm)

B. Customization: 25 - 250mm cutting width is available at extra cost,

please contact us for details.

Cutting Thickness

100 - 300 microns

Cutting Speed

0 - 4 meter / minute Adjustable

Product Dimensions

84.3cm(L) x 101cm(W) x 48cm(H)

Net Weight

110kg (250 lbs)
