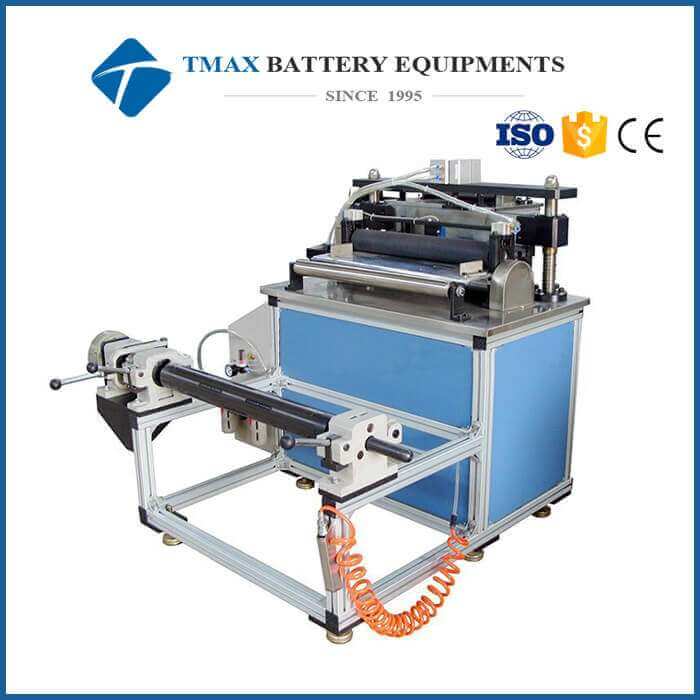

Pouch cell edge cutting and aluminum foil cutting machine
Model Number:
TMAX-DYG-140BInput Power:
500wDimension(L*W*H):
1450*1250*1050mmCompliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Roll to Roll Plastic Cutting Machine for Li-ion Battery Seperator SlittingNext:
Battery Electrode and Separator Slitter Slitting Machine
Pouch cell edge cutting and aluminum foil cutting machine
Product Application
1 The Automatic shear cutting machine is mainly used for lithium battery
big electrode cutting after coating process or after continuous rolling press
process. Cutted big electrode is more easy for slitting or punching to small
pieces for battery making.
2 TMAX-DYG-140B-500mm model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.
SPECIFICATIONS:
Model |
TMAX-DYG-140B-500mm |
Source voltage |
AC 220V/110V, 50HZ/60HZ |
Power |
500W |
Warranty |
One Year limited warranty with lifetime support |
Max electrode width |
500mm |
Cutting material |
Battery continuous or clearance cathode and anode electrode |
Cutting speed |
0-12m/min, adjustable |
Cutting accuracy |
≤±0.3mm |
Dimension(L*W*H) |
1450*1250*1050mm |
Advantage |
1 Driven by stepper motor feed, fixed-length precision is high 2 PLC control, set length, easy to operate, intuitive 3 With digital set fixed-length cutting, clearance trace length shearing 4 Pneumatic drive shear, little noise |
