5V20mA Lab Battery Tester for Coin Cell Battery Testing Equipment
Model Number:
TMAX-5V20mADimension(L*W*H):
250*200*60mmCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5V2A 256 channel cylindrical lithium battery tester machine for laboratory researchNext:
High Precision Tester Instrument For Mobile Phone

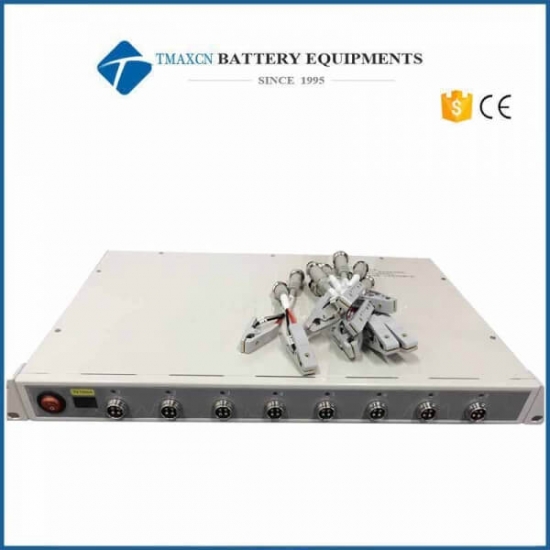

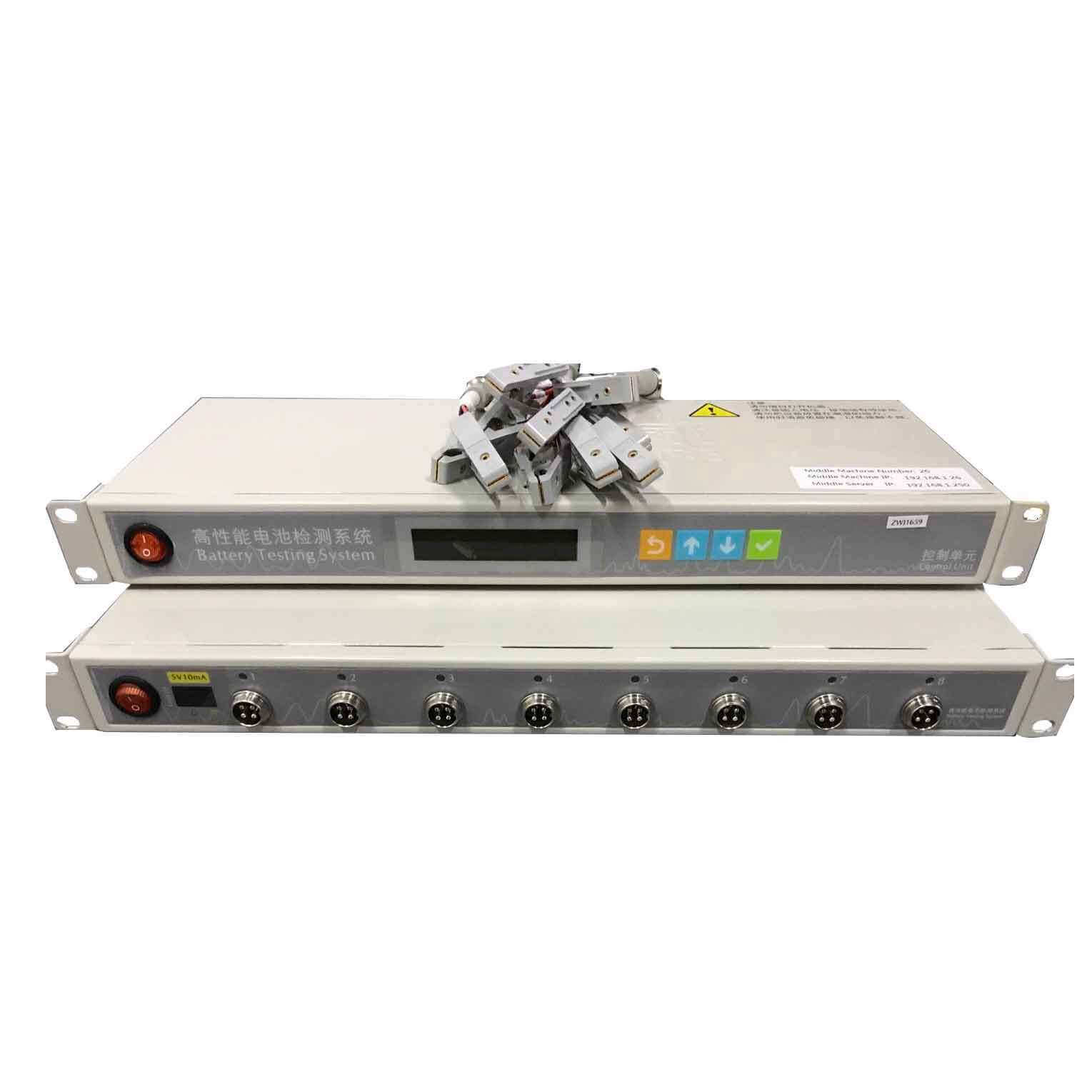

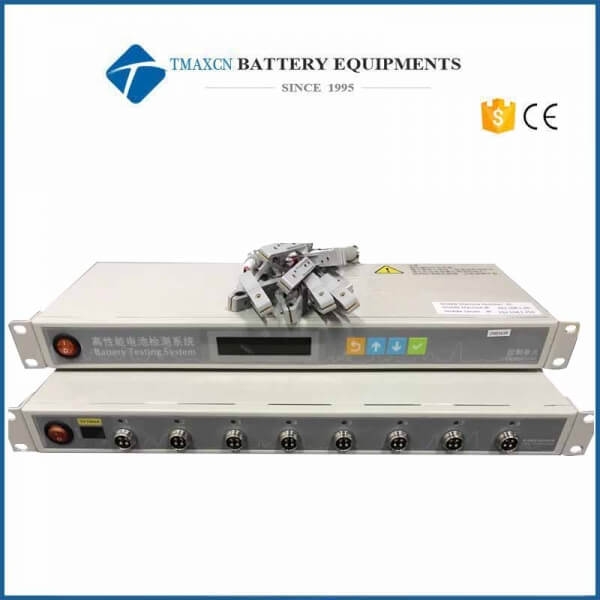

5V20mA Lab Battery Tester for Coin Cell Battery Testing Equipment
SPECIFICATIONS
1.TMAX-5V20mA Battery
analyzer is an eight-channel battery analyzer to analyze small coin cells with a range
current 0-20mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and
constant-voltage source, which can be programmed and controlled by computer software.
2.This coin cell tester system provides most applications in battery testing fields such as electrode materials
research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.
3.The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn
watch battery and so on.
Machine model |
8 Channels Battery Analyzer TMAX-5V20mA |
Source voltage |
110v to 220v 50/60HZ |
Power |
30W |
Current range |
0-20mA
0.05%RD±0.1%FS (control and measurement) |
Voltage range |
0-5V
0.1%RD±0.1%FS (control and measurement) |
Cycles |
9999cycles |
Contents of step |
Constant current c/d , constant voltage c/d, constant power discharge, constant resistance discharge, DCIR,rest |
Conditions of constraint |
Time, voltage, current, capacity, etc.20 kinds |
Protection modes |
Overvoltage, under voltage, over current, under current, over capacity, etc. |
Programming steps |
Unlimited (more than 200 steps) |
Channels |
Eight independent programmable channels Each channel can set different working modes and functions independently |
Output mode |
4 electrode (supporting reference electrode test) |
Software |
1 The software with calibration function is included to set various working modes for measuring capacity and life cycle for all types of rechargeable batteries 2 Working modes Include constant current discharge, constant current charge, constant voltage charge, rest, etc 3 Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc 4 With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently 5 The calibration software can be used to calibrate the analyzer |
Testing report and curves |
1 Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve,loops times-charge/ discharge capacity curve, loops times
charge/ discharge efficiency curve, etc) 2 Data reports are created by software. 3 User can easily compare the performance of the batteries tested in channels both visually and statistically |
Dimension |
250*200*60mm |
Weight |
12kg |

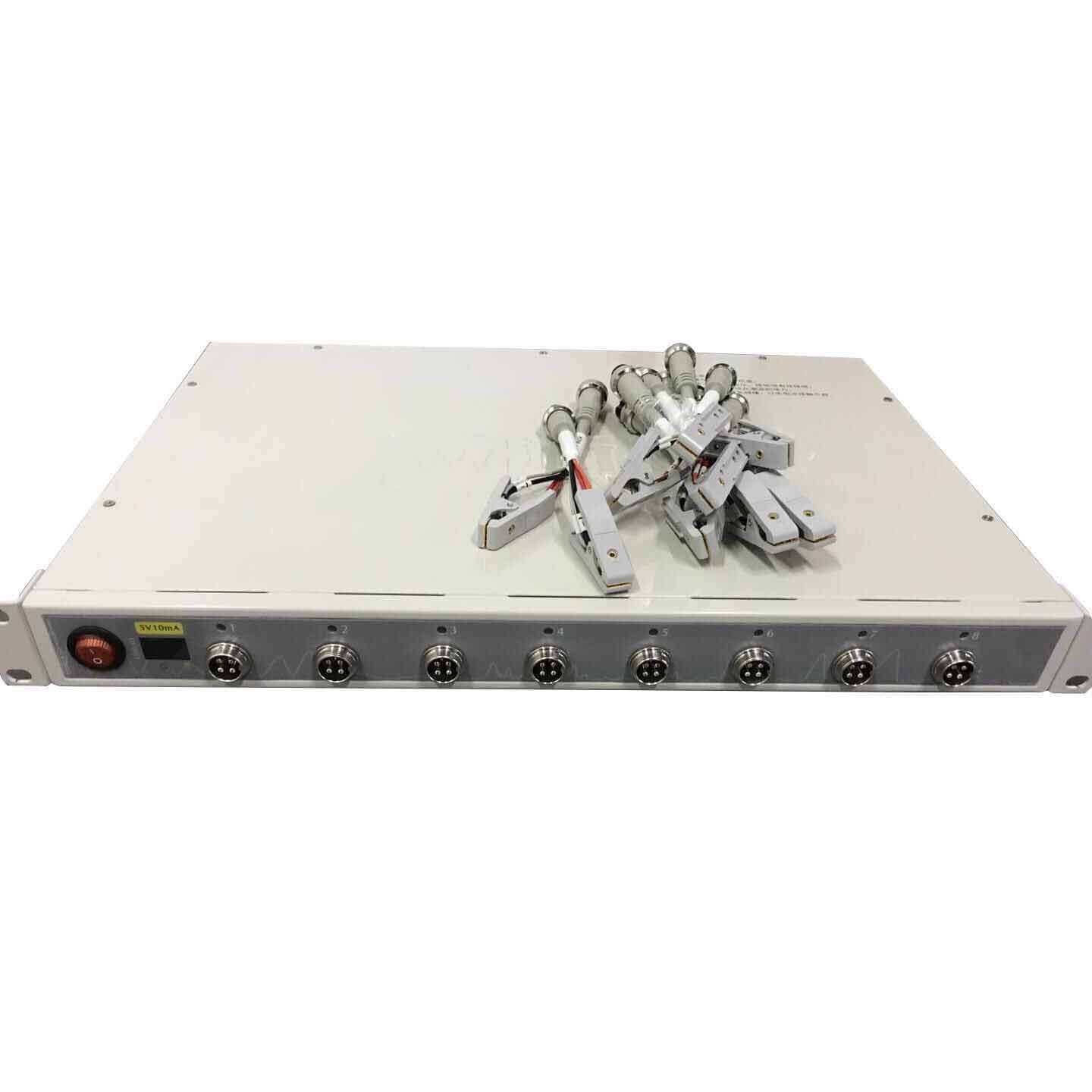

Testing clamps |
|

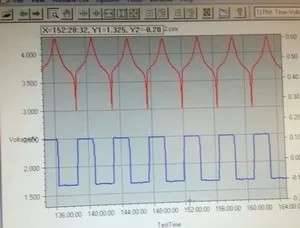

Testing result curves |
|

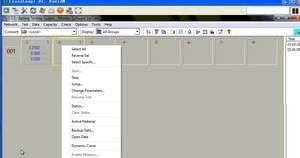

Setting menu |
|
