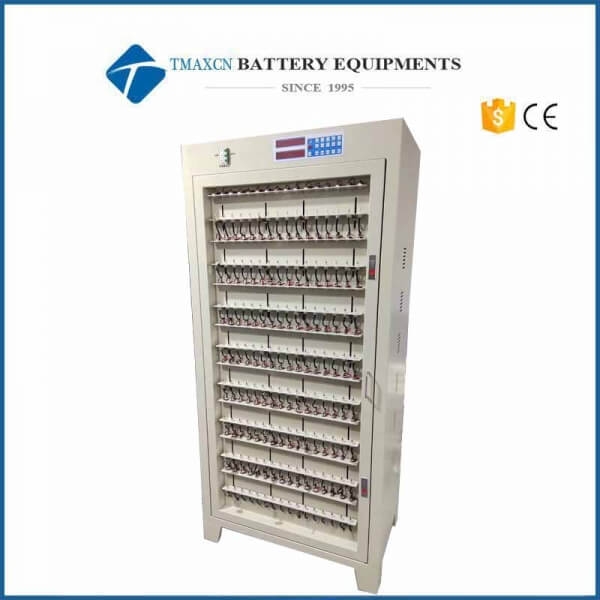

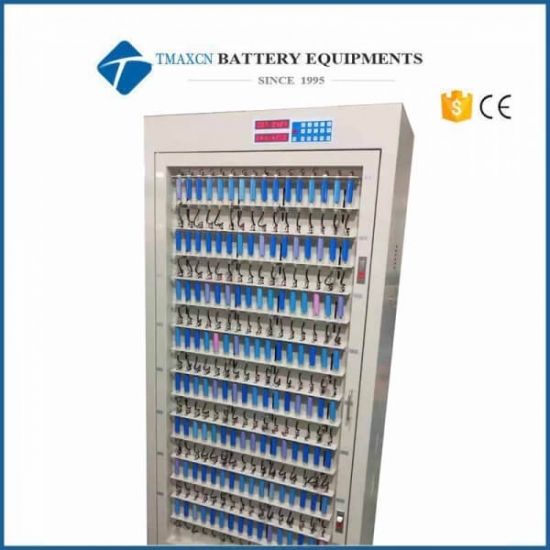

5V2A 256 channel cylindrical lithium battery tester machine for laboratory research
Model Number:
TMAX-BT0502-256-CDimension(L*W*H):
800*1500*1900mmCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
High Accuracy 18650 Battery Tester For 18650 Cylindrical CellNext:
5V20mA Lab Battery Tester for Coin Cell Battery Testing Equipment

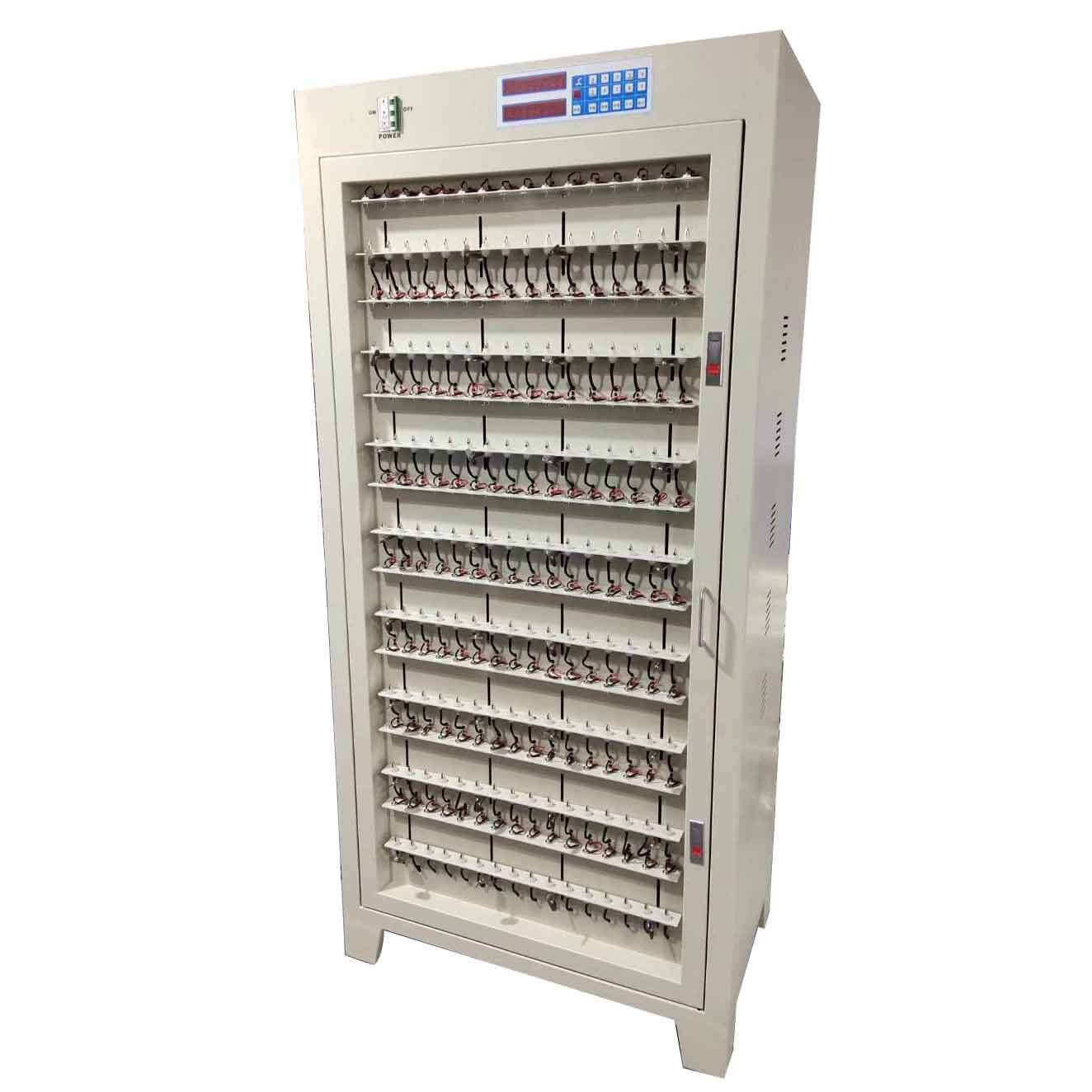

5V2A 256 Channel Cylindrical Lithium Battery Tester Machine for Laboratory Research
Features
This equipment
is mainly composed of the computer system, communication interface, control
software, and battery detecting cabinet. Battery detecting cabinet comprises a
fixture and placed the plate body of the fixture, charging, constant current
and constant voltage source discharge constant current source, storage
control circuit, current sampling circuit, voltage sampling circuit, the main
control CPU, data memory, microcontroller programming and control panel.
Specifications
Number of device channels |
The whole machine has 256 channels in total |
Workflow control mode |
Whole cabinet control |
Charging mode |
Constant current and constant voltage |
Charging cut-off conditions |
Voltage, current, time, capacity |
Discharge mode |
Constant current |
Discharge cut-off conditions |
Voltage, time and capacity |
Sampling inspection cycle |
≤10s |
Voltage measurement range |
0~5V, Resolution: 1mV |
Battery voltage range |
Charge:0~4.5V, Discharge:4.5~2.5V |
Constant voltage range |
3~4.5V |
Voltage accuracy |
±(0.05%RD+0.1%FS) |
Current range |
Charge: 0.010-2A, Discharge: 0.010-2A, Resolution: 1mA |
Current accuracy |
±(0.1%RD+0.1%FS) |
Time frame |
Any setting within 0 ~ 30000 minutes, the time unit is min |
Time accuracy |
≤±0.1% |

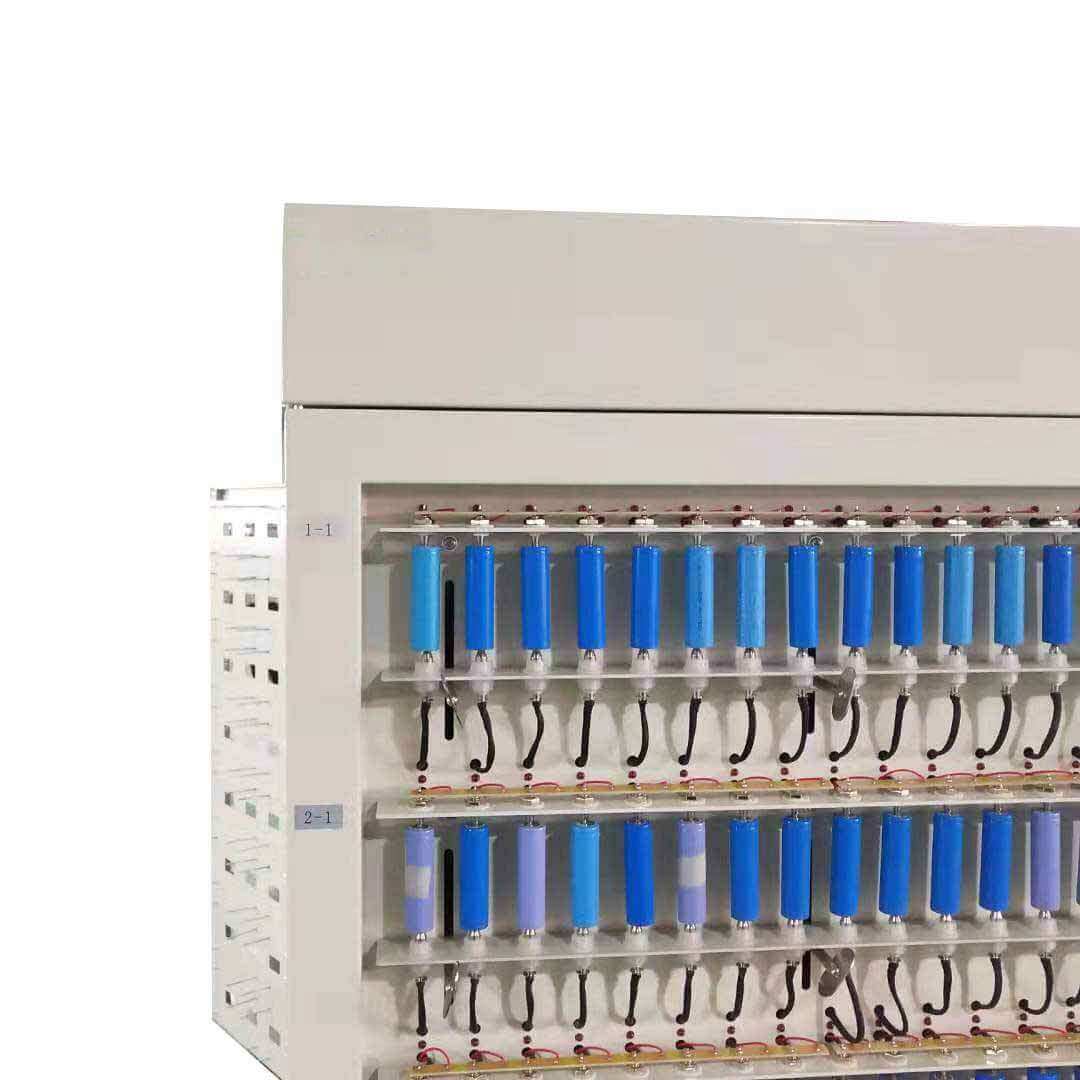

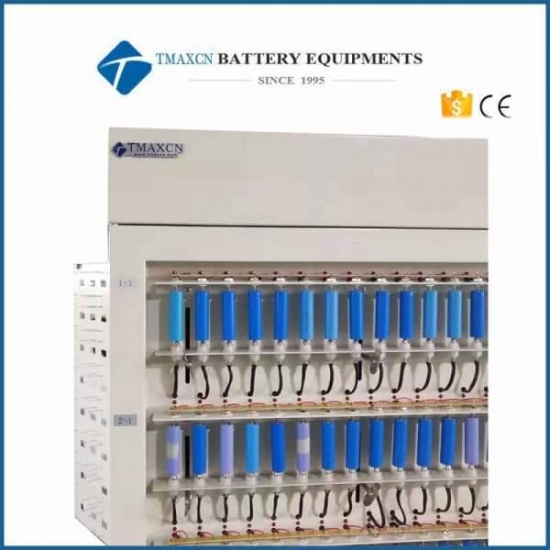

Fixture type |
Four wire fixture |
Fixture adjustable height |
10mm-90mm |
Support battery |
Prismatic cell/cylindrical battery |
Working power supply |
AC380V±10%, 50HZ, Power consumption: 4.5KW(three-phase four wire system) |
Communication mode |
RS485,Baud rate 57600 |
Overall dimension |
720mm(L)×500mm(W)×1840mm(H) |
work environment |
Temperature:0-40℃,relative temperature≤85% |
Full load operating current |
The maximum phase line: 15A, The maximum zero line: 3A |
Equipment starting current |
The closing moment of air switch is about 60A |
Machine weight |
About 100KG |
