High Precision Tester Instrument For Mobile Phone
Model Number:
TMAX-V-125Dimension(L*W*H):
290*270*100mmNet Weight:
5kgCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5V20mA Lab Battery Tester for Coin Cell Battery Testing EquipmentNext:
High Accuracy Battery Internal Resistance Tester For Lab R&D

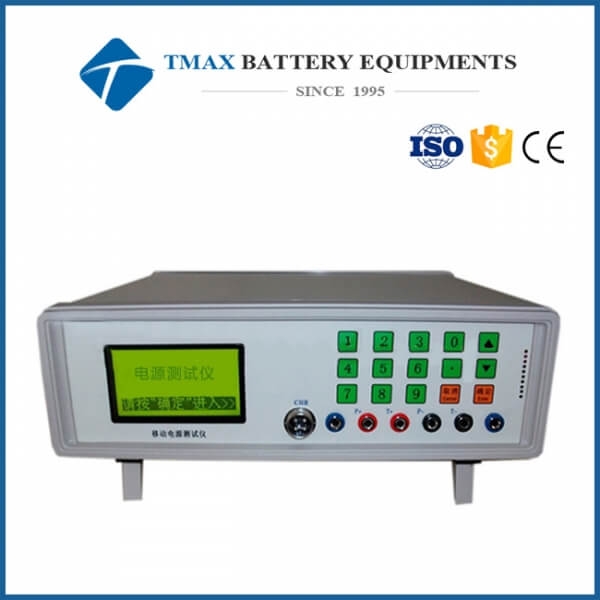

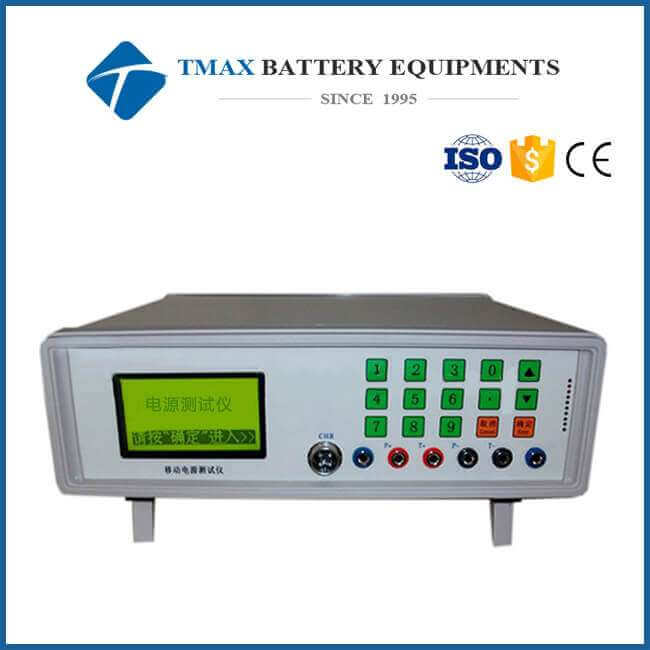

High Precision Tester Instrument For Mobile Phone
SPECIFICATIONS
1 Mobile power supply tester TMAX-V125 is designed high
precision tester instrument for mobile phone (mobile power supply charging PO)
production and research.
2 The power bank tester can test power supply
load voltage, charge and discharge current, the protection function,USB
discharge end voltage etc. performance parameters to filter the power bank.
3 It is very suitable for mobile power bank
supplier assembly line mass rapid detection.
4 The power bank tester can also suitable for
power bank wholesaler to detect the power bank quality.
Machine model |
Power bank tester test voltage current capacity TMAX-V125 |
Open circuit voltage V1 |
Output voltage of the power of the no load condition. Range : 0-10V |
Min load voltage V2 |
A voltage with a relatively small load current power supply. Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V |
Middle load voltage V3 |
A voltage with a relative moderate load current power supply Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V |
Max load voltage V4 |
A voltage with a relatively large load current power supply Range : Current : 50-5000mA, Time : 0-5000mS, Voltage : 0-10V |
Charge current |
Test the charge current for the power bank on a set voltage. Range : Current : 50-5000mA, Time : 0-9999mS, Voltage : 0-10V |
Short circuit protection time |
In the case of short circuit, reaction time of power bank on short circuit protection function.
Range : Time : 0-9999mS |
Short circuit recovery |
Power on short circuit protection within the prescribed period of time whether to have the function of recovery voltage. |
Auto test mode |
Suitable for power bank can output voltage automatically |
Manual test mode |
Suitable for power bank power output voltage needing press switch |
A B Test mode |
Suitable for power bank with two output. |
Over discharge current |
Protect current. Range : 0-10A |
Dimension |
290*270*100mm |
Weight |
5kg |
Warranty |
One Year limited warranty with lifetime support |
