Hot Hydraulic Press

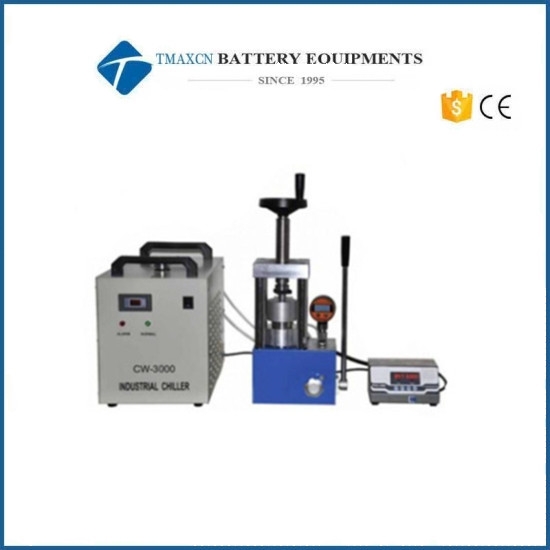

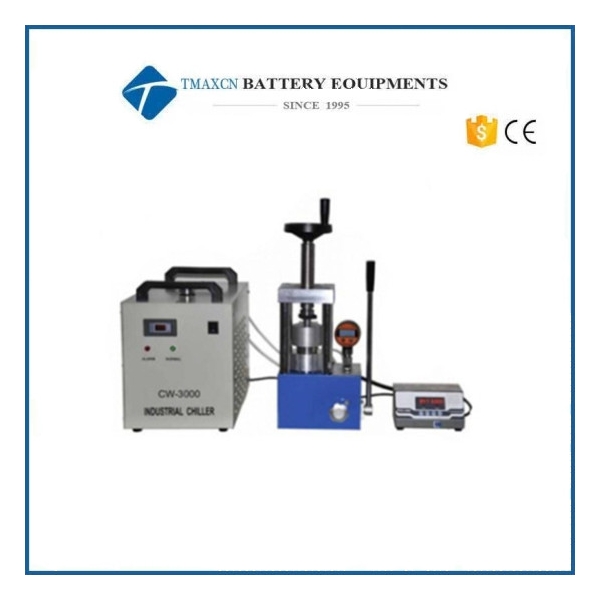

300C 500C Lab Manual Cylindrical-electric Hydraulic Hot Pellet Press

  • Model Number:

    TMAX-RYJ-600A
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

300C 500C Lab Manual Cylindrical-electric Hydraulic Hot Pellet Press

Features

The RYJ-600A/B series manual heat press is suitable for users who need to fix the shape and size of the sample. It is more common for some powder samples, granular samples, polymer samples and other samples in a hot pressing environment ( Cylindrical, square) sample preparation for scientific analysis and research.


In a short, the machine is actually a manual powder tablet press with a set of hot pressing molds (the default configuration is cylindrical, and the specifications are optional). According to the needs of the experiment, electric or automatic tablet presses can also be purchased, and It can be used for multiple purposes in one machine, equipped with specific molds, and can also be used as an ordinary tablet press.




Main technical parameters

Product name

RYJ-600A

RYJ-600AG

RYJ-600B

RYJ-600BG

Pressure range

0-24T(0-34Mpa)

0-40T(0-30Mpa)

Pressure conversion

1T=1.41Mpa

1T=0.75Mpa

Piston diameter

Dia95 Chrome plated cylinders

Dia130 Chrome plated cylinders

Maximum piston stroke

30mm

50mm

Pressure gauge type

Pointer type, pressure and pressure double scale display, measuring range 0-40mpa, accuracy 1M

Pressure/supplement mode

Manual pressure/manual supplementary pressure

Thermostat type

XNNETS PLC Programmed temperature controller

Temperature range of thermostat

Rt-600°C, accuracy 0.1°C

Heating mold type

CylindricalΦ3-Φ20mm/set

CylindricalΦ21-Φ40mm/set

Temperature of heating plate

RT-300°C

RT-500°C

RT-300°C

RT-500°C

Power

220V/300W

220V/500W

Machine size

245*175*415mm

295*215*500mm

Machine weight

45kg

80kg

Equipment insulation method

Imported insulation board

Heating plate cooling method

Stainless steel water-cooled circulating heat insulation board (optional, used with water chiller)

Standard configuration

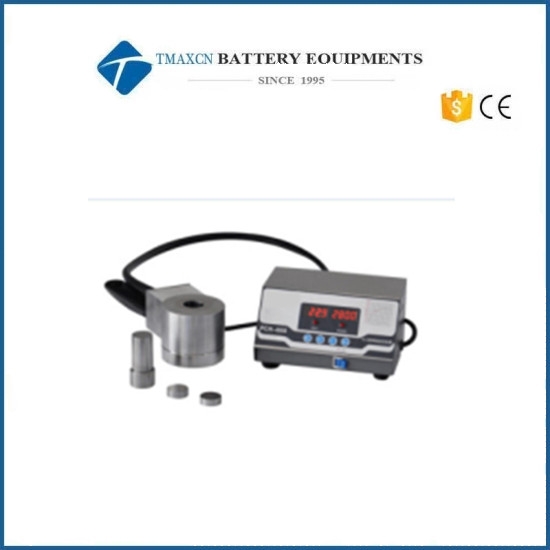

One tablet press, one hot press mold, one thermostat (water cooler optional)
