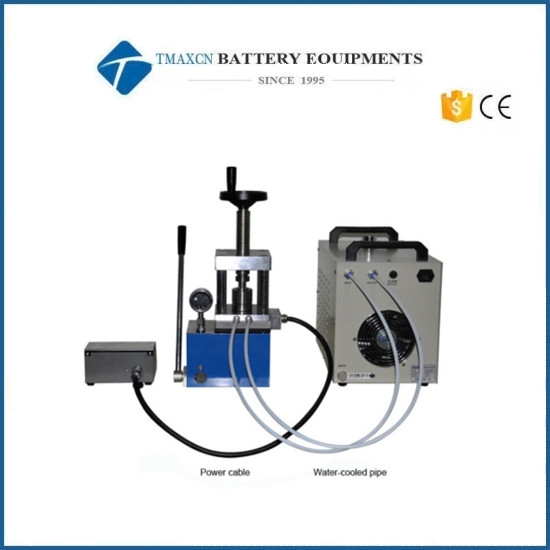

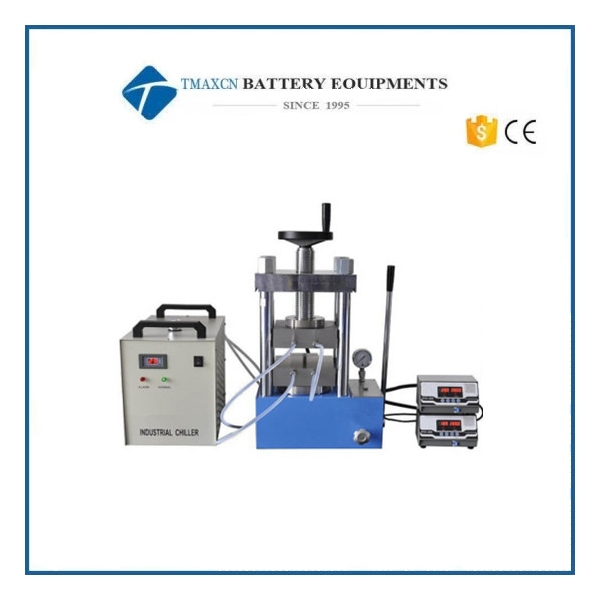

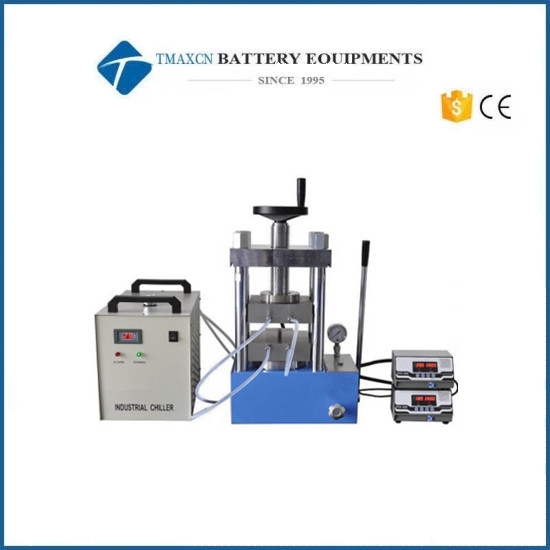

300C 500C 24T Lab Manual Flat Heat Hydraulic Press with Double Heating Die
Model Number:
TMAX-SYP-600Compliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13174506016
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
15T 30T Mini Four Column Manual Powder Tablet Hydraulic PressNext:
300C 500C Lab Manual Cylindrical-electric Hydraulic Hot Pellet Press
300C 500C 24T Lab Manual Flat Heat Hydraulic Press with Double Heating Die
Features
The new RYJ-600C series
RYJ-600C series manual hot press adopts double plate (polishing surface) design, equipped with two temperature controller, can separately control the temperature of two plates to heat, the thickness of the film can reach 50um-500um, suitable for polymer materials, plastic film and rubber products and other materials of experimental research, can also be used as a small plate vulcanization instrument.
Main technical parameters
Product Name |
RYJ-600C |
RYJ-600CG |
Pressure range |
0-24T(0-34MPa) |
|
Pressure conversion |
1t-1.41Mpa |
|
Piston diameter |
Dia95mm chrome plating cylinder |
|
Maximum piston stroke |
30mm |
|
Type of pressure gauge |
Pointer; Pressure, pressure double scale display; the range 0 to 40 mpa; accuracy of 1 Mpa |
|
Pressure mode |
Manual pressure |
|

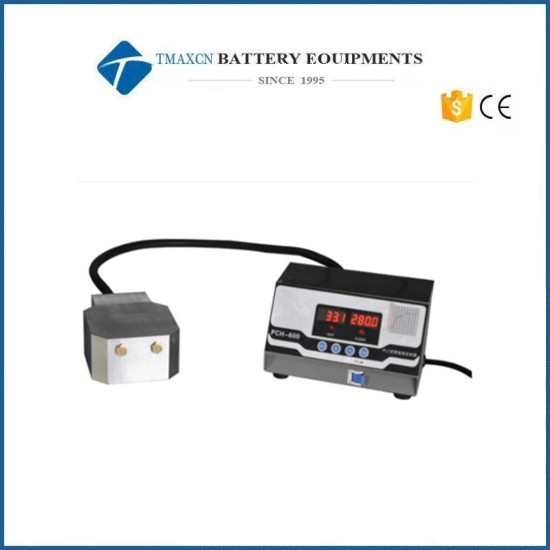

Temperature controller type |
PLC programmed temperature controller (double temperature controller) |
|
Temperature control range |
RT-600.0℃/0.1℃ |
|

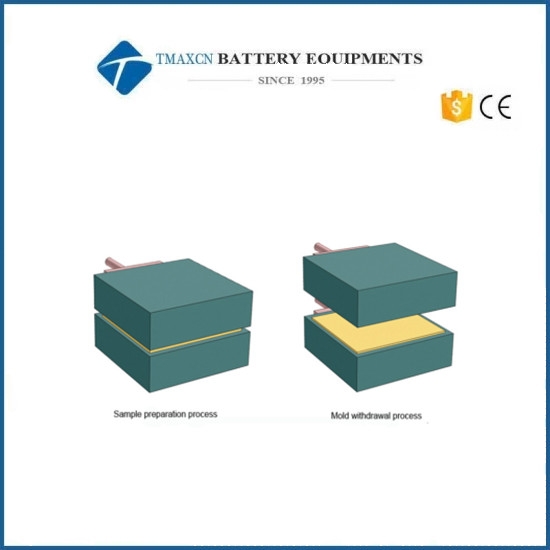

Type of hot pressing die |
Double die heating up and down (polished surface) |
|
Heating die size |
100*100mm |
|
Temperature of hot pressing die |
RT-300℃ |
RT-500℃ |
Heating die cooling method |
Cooling by natural or water cooler
|
|
Equipment insulation Mode |
Imported heat shield |
Imported heat insulation board + stainless steel water cooling cycle heat insulation board |
Power |
220V/600W |
220V/1000W |
Overall structure |
Split structure |
|
Size of the machine |
245*175*500mm(The weight of the water cooler is not included) |
|
Weight |
About 50-60kg |
|
Model specification |
Water cooling machine (optional) Digital pressure gauge (optional), accuracy of 0.01Mpa, more accurate pressure control |
