Manual Flat Hydraulic Hot Pellet Press with Double Plate 300C or 500C
Model Number:
TMAX-RYJ-600DCompliance:
CE CertifiedWarranty:
One year limited standard warrantyPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
300C 500C Lab Manual Cylindrical-electric Hydraulic Hot Pellet PressNext:
500℃ 12T Electric Compact Lamination Hot Press with Double Heating Plate

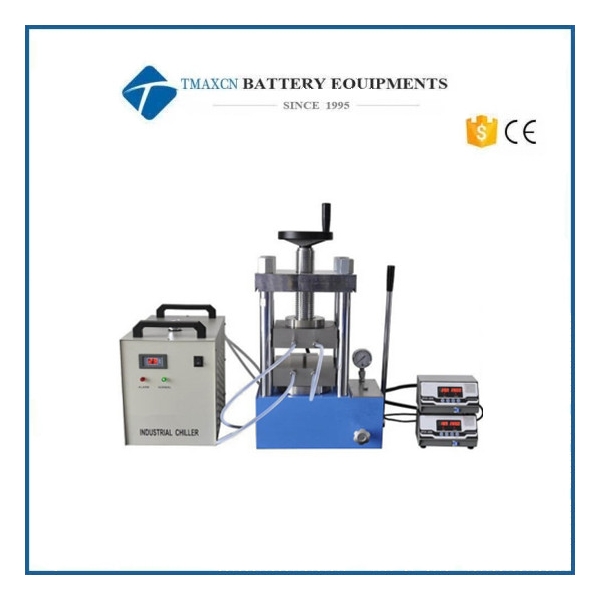

Manual Flat Hydraulic Hot Pellet Press with Double Plate 300C or 500C
Features
New RYJ-600D series double plate hot pressing machine compared with RYJ-600C series the biggest difference this machine adopts widened panel design, can meet the hot pressing experiment of larger samples, equipped with two temperature controllers, can separately control the temperature of two plates heating, pressing film thickness up to 50um-500um, suitable for polymer materials, Plastic film and rubber products and other materials of experimental research, can also be used as a small flat vulcanizing instrument, suitable for rubber, plastic, leather, chemical, pigment, electronic appliances, textiles, hardware and other fields.
Main technical parameters
Product Name |
RYJ-600D1 |
RYJ-600D2 |
RYJ-600DG1 |
RYJ-600DG2 |
Pressure range |
0-30T(0-31.5Mpa) |
|||
Pressure conversion |
1t-1.05Mpa/1Mpa=0.95t |
|||
Piston diameter |
ɸ110mm chrome plating cylinder |
|||
Maximum piston stroke |
40mm |
|||
Type of pressure gauge |
Pointer; Pressure, pressure double scale display; the range 0 to 40 mpa; accuracy of 1 mpa |
|||
Pressure mode |
Manual pressure |
|||

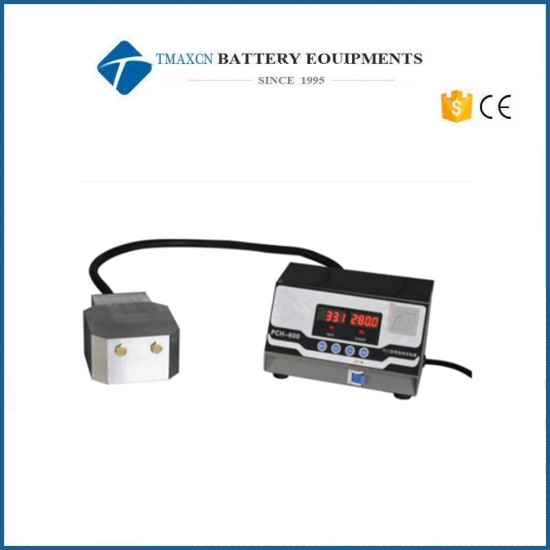

Temperature controller type |
PLCprogrammedtemperaturecontroller(doubletemperature controller) |
|||
Temperature control range |
RT-600.0℃/0.1℃ |
|||
Type of hot pressing die |

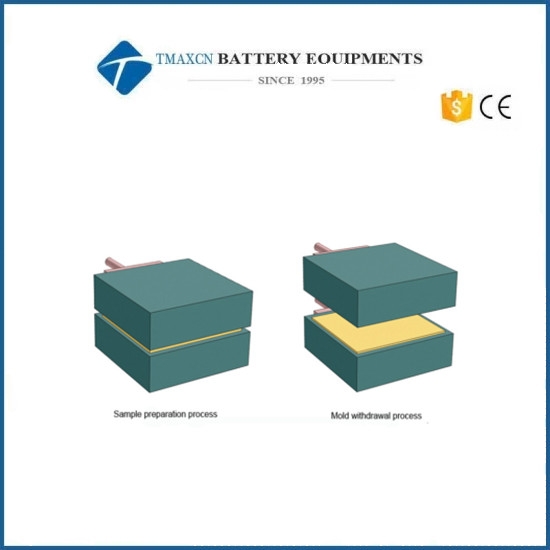

Double die heating up and down (polished surface) |
|||
Heating die size |
180*180mm |
200*200mm |
180*180mm |
200*200mm |
Temperature of hot pressing die |
RT-300℃ |
RT-500℃ |
||
Heating die cooling method |
Cooling by natural or water cooler |
Cooling by natural or water cooler |
||
Equipment insulation Mode |
Imported heat shield |
Imported heat insulation board + stainless steel water cooling cycle heat insulation board |
||
Power |
220V/1000W |
220V/2000W |
||
Overall structure |
Split structure |
|||
Size of the machine |
405*260*525mm(The weight of the water cooler is not included) |
|||
Weight |
About 80-200kg |
|||
Model specification |
Water cooling machine (optional) Digital pressure gauge (optional), accuracy of 0.01Mpa, more accurate pressure control |
