spot Metal Welding Machine

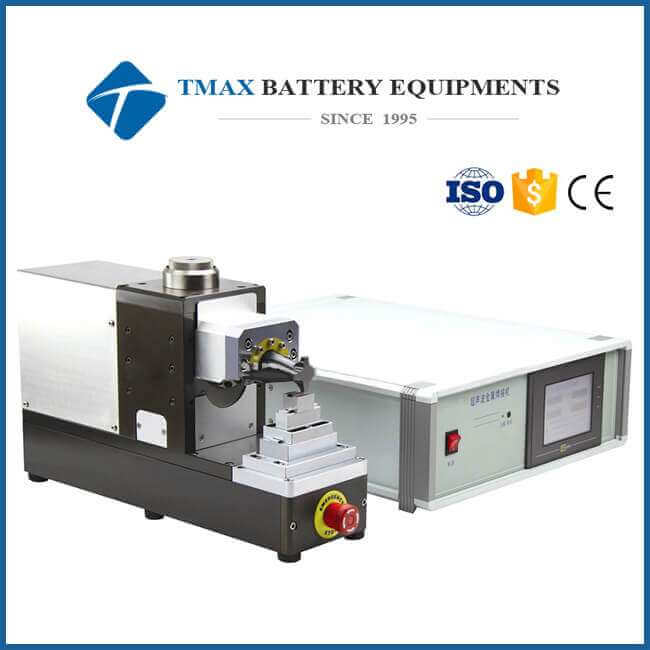

Ultrasonic spot Metal Welding Machine With Touch-screen Controller

  • Model Number:

    TMAX-CX-20DA
  • Input Power:

    3600W
  • Dimension(L*W*H):

    150x560x350mm
  • Net Weight:

    45KG
  • Compliance:

    CE Certified/NRTL Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

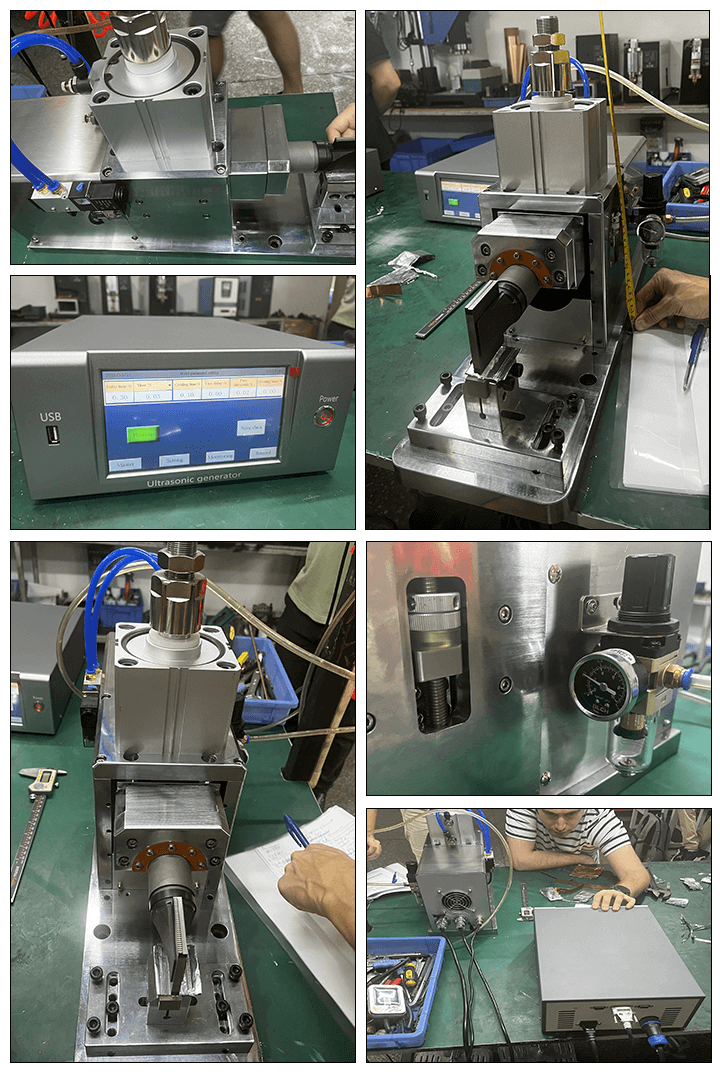

Ultrasonic spot Metal Welding Machine With Touch-screen Controller


1. TMAX-CX-20DA  Ultrasonic Metal Welding Machine has a generator with frequency automatic tracking technology, high quality transducers, highly

wear resistant welding head.
 2. Equipment is number position model, pressure, amplitude, welding time etc. parameters use all digital set and regulation;
 3.The use of energy, time, highly welding control mode;
 4.Welding energy real time data acquisition, digital display, builtin electronic scale, highly accurate measurement of welding height.
 5.All these operations are done on the touch screen.

 6. Equipment operation accurate, stable and process control is very simple.

We will continue to  provide better Ultrasonic Welding Machine for you.


SPECIFICATIONS:

Weight

45KG

Case size

480x600x180mm

Rack Dimensions

150x560x350mm

Power

220 V (single-phase)

Air supply requirements

be equal or greater than 5 .0kgf / cm²

Operating frequency

20KHZ (automatic tracking, without adjustment)

Nominal power

                3600W (actual power capacity 4.5KW);

 maximum pressure: 3000N

Other:

   1,5.7 inch touch screen all digital control (including energy, altitude,time of three control modes;

pneumatic NC;100 kinds of parameters are stored call is very convenient.);

   2,Multiple protection functions (over current, frequency protection),boot automatic detection;

   3,Digital stepless amplitude modulation (20~40μm half wave amplitude is continuously adjustable to

 adapt to a variety of materials and specifications).
