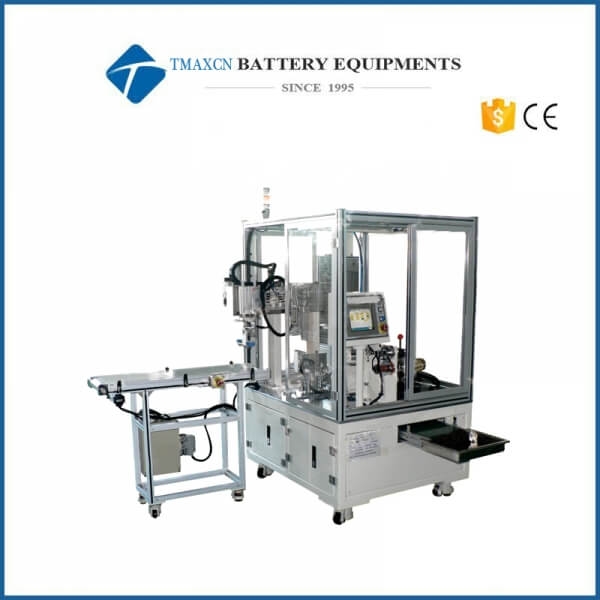

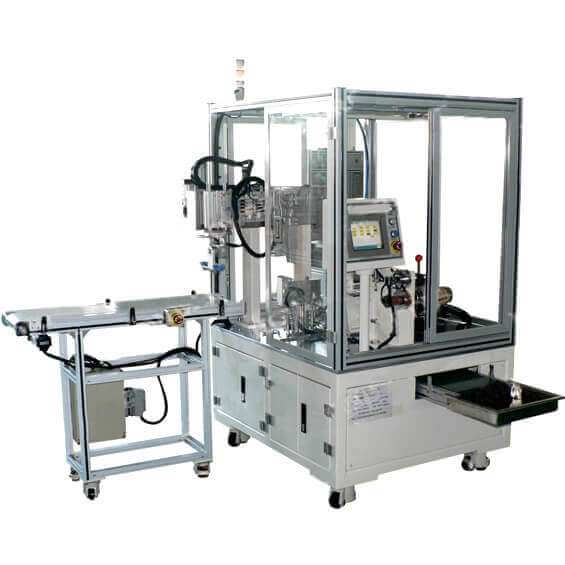

U type sticking film machine

Functions
● This equipment is suitable for the flexible packaging lithium batteries PP surface protective film.

Features
● Servo fixed-length puller, floating roller automatic tensioning.
● Drawstring to bring in and out, step by step control of roller coated.
● Vertical gas rose axis roll type feeding.
● PLC control, touch screen to adjust parameters.

Technical Parameters(for reference)：

ITEM	HBDCS200(single station)	TMQ200(double stations)
Measure	1960*1000*2000mm(L*W*H)	2100*1950*2000mm(L*W*H)
Weight	About 0.8T	About 1.2T
Power	AC220V/50HZ, 2.5KW	AC220V/50HZ, 3KW
Air source	≧0.6Mpa,40L/Min	≧0.6Mpa,40L/Min
Vacuum source	≤-0.095Mpa,80L/Min	≤-0.095Mpa,80L/Min
Applicable range	H:50-200mm*W:60-200mm*T:2.5-10mm	H:50-200mm*W:60-200mm*T:2.5-10mm
Capacity	10EA/Min	20EA/Min
Action	≧99%	≧99%
