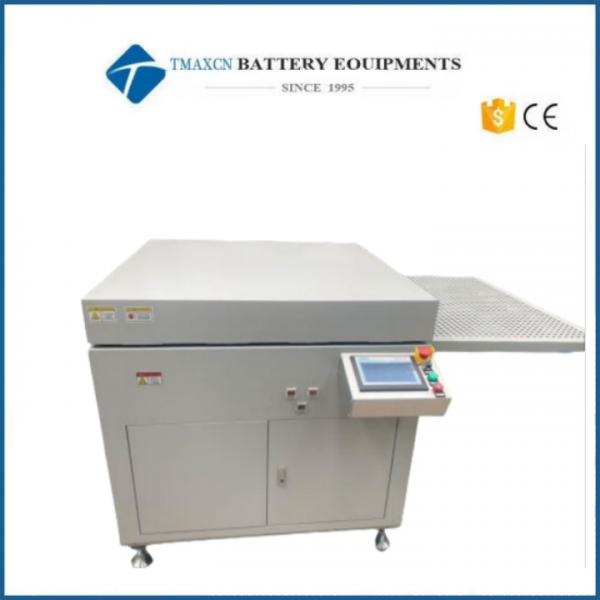

Touch Screen Type Vacuum Hot Compression Sealing Machine with Special Aluminum Heating Plate for Perovskite Synthesis

Touch Screen Type Vacuum Hot Compression Sealing Machine with Special Aluminum Heating Plate for Perovskite Synthesis

Main equipment configuration:

1) PLC: Siemens PLC is adopted

2) Vacuum pressure switch: Japan SMC pressure controller

3) Vacuum pump: Quiet vacuum pump

4) Touch screen: Siemens touch screen

5) Control appliance: Schneider

6) No leakage point, full coverage chassis heating design, heating more uniform, faster heating.

7) Unique safety limit design, during the switch cover, the hand leaves the touch screen, the machine immediately stops.

8) Imported Siemens PLC, Siemens touch screen, simple engineering mode: Can display the number of lamination, can set the operator password, can independently design heating temperature, heating time, lamination pressure.

9) Control system: Using Siemens PLC, can automatically record the number of lamination, Chinese and English operation interface.

10) Outer frame structure: The outer frame of the machine is welded with Q235B steel plate.

11) Heating plate structure: The heating plate is made of Q235B 25mm thick plate after processing.

12) Cover opening mode: Cover opening adopts pneumatic back opening type, Yadke cylinder.

13) Heating method: Using electric heating plate heating method.

Equipment features:

1) A newly developed laboratory special equipment, small size and small footprint. Touch one button operation, easy to operate.

2) with foldable cooling sample table, programmed pressure.

3) Special aluminum heating plate, good heat conduction effect, heating surface temperature is more uniform. Heating plate edge special temperature insulation protection strip to ensure that the heat is not lost.
