1200C Tube Furnace

Single-Zone 1200°C 50mm OD Split Tube Furnace with Quartz Tube

  • Model Number:

    TMAX-50mmfurnace

  • Dimension(L*W*H):

    50mm OD x 700mm length

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited warranty with lifetime technical support

  • Shipping Port:

    Xiamen

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

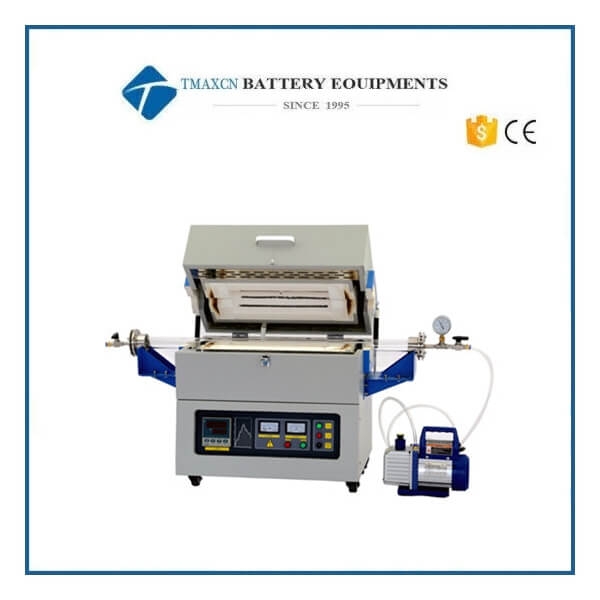

Single-Zone 1200°C 50mm OD Split Tube Furnace with Quartz Tube




TMAX-50mmfurnace portable split tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.


split tube furnaces



Features

    1.Compact, portable and lightweight design.
      2.Split furnace chamber for fast and easy tube access.
        3.Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
          4.Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
            5.Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

            6.Long life type K thermocouple.


              Safety

              1.Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

                2.Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

                  Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

                   Tube size

                   50mm OD x 700mm length
                   It can be customized

                   Maximum working temperature

                   1200°C

                   Constant working temperature

                   1100°C

                   Minimum working temperature

                   Ambient

                   Constant working temperature under vacuum

                   1000°C

                   Rated vacuum pressure

                   0.001 Pa / 0.0075 millitorr / 0.00001 mbar

                   Rated positive pressure

                   0.02 MPa / 150 torr / 3 psi

                   Heating element type

                   Resistance coil wire

                   Thermo couple type

                   K

                   Refractory lining

                   Mitsubishi (Japan) 1500 grade fiber alumina

                   Temperature controller

                   Single PID, 30 segments

                   Maximum heating & cooling rate

                   < 30°C / min

                   Heating zone length

                   8"

                   Constant temperature zone length

                   3"

                   Temperature controller precision

                   +/- 1°C

                   Vacuum sealing flange kit

                   Stainless steel vacuum sealing flanges with one vacuum gauge,
                  two valves and four thermal ceramic blocks.

                   Electrical requirements

                   110VAC,  50/60 Hz single phase, 1500 watts

                   Gas inlet/outlet

                   1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)

                   Unit dimensions

                   27 x 13 x 16" (WxDxH)

                   Unit weight

                   55 Lb

                   CE compliance

                   Yes


                  Standard package

                  Part description

                  Quantity

                   Part image

                    split tube furnace

                   1 pc



                   Quartz tube 50mm OD x 700mm L

                   2 pcs

                   Stainless steel vacuum sealing flanges w/ pressure meter

                   1 set



                   Stainless steel hook

                   1 pc



                   Alumina ceramic thermal block

                  4 pcs



                   Spare fuse

                  2 pcs

                   Thermal gloves

                   1 pair

                   tube furnace
