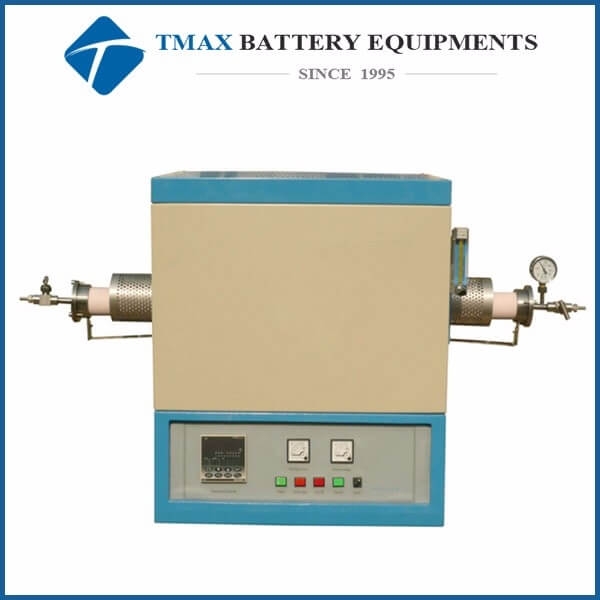

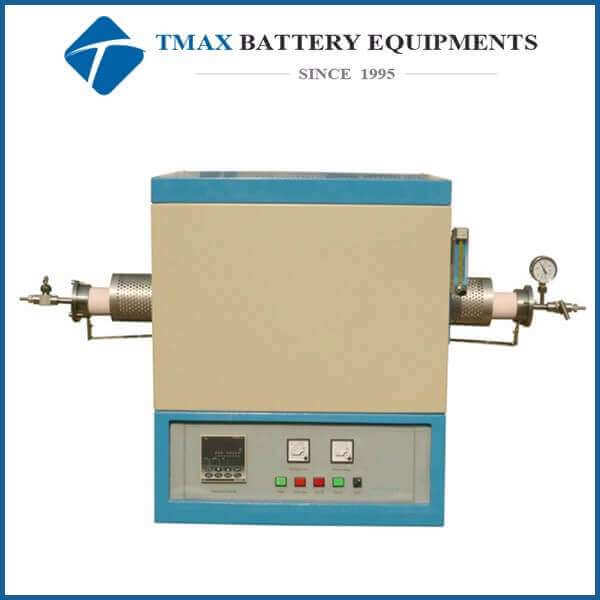

Model

KTL1400-I

KTL1400-II

KTL1400-III

KTL1400-IV

Power

Tube Size

60mm O.D x 1000mm L

Product Dimensions (mm)

Heating Zone length

Voltage

·         AC 220 Single Phase, 50/60 Hz

Temperature range

Max. Heating Rate

Temperature Controllers

·         Digital controllers with 40 programmable segments for precise control of heating rate, cooling rate and dwell time.

·         Built in PID Auto-Tune function with overheating & broken thermocouple protection.

·         Over temperature protection and alarm allows for operation without attendant(s).

·         +/- 1 ºC temperature accuracy.

·         Two K-type thermocouples (one for each zone).

·         RS485 Communications Port.

Thermal Couples

·         K type

Temperature Accuracy

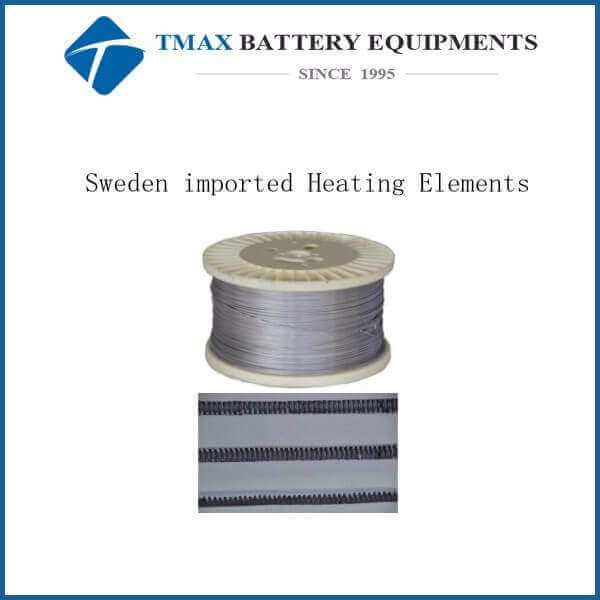

Heating Element

Vacuum Flange & Fitting Ports

·         One pair of SS 304 vacuum flange with double high-temperature silicone O-rings are Included

·         One Vacuum pressure gauge is installed, one digital vacuum gauge is available upon request at extra cost

·         The flange set has two 1/4'' Bard fittings, two needle valve, one set of KF25 quick clamp, one blank flange fitting, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port.

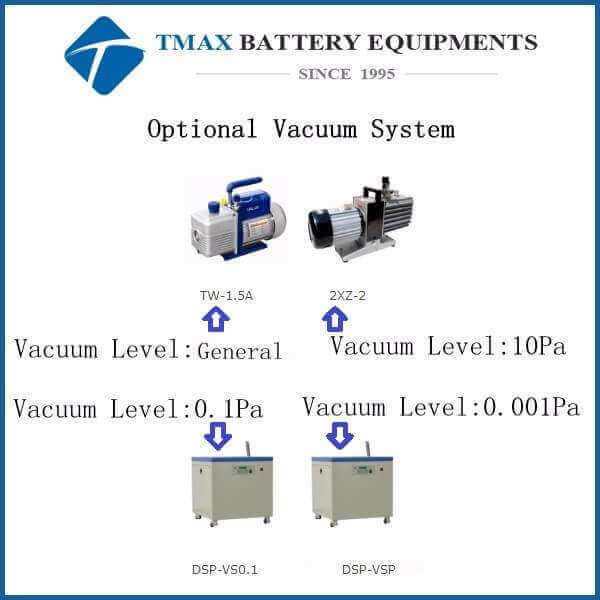

·         Vacuum level can reach 10^-2 torr by quality mechanical vacuum pump and 10^-5 torr by molecular pump

·         Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.Vacuum pressure may only be safely used up to 1000°C. The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube.

·         Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation.

Warranty

One year limited warranty with lifetime support.

Compliance

CE
