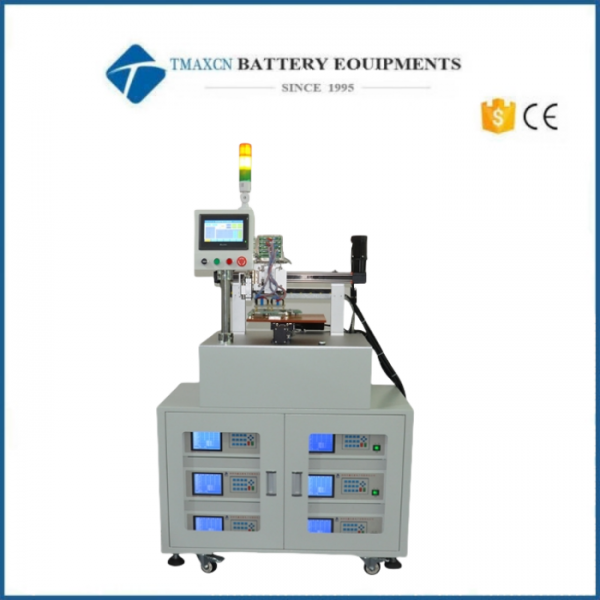

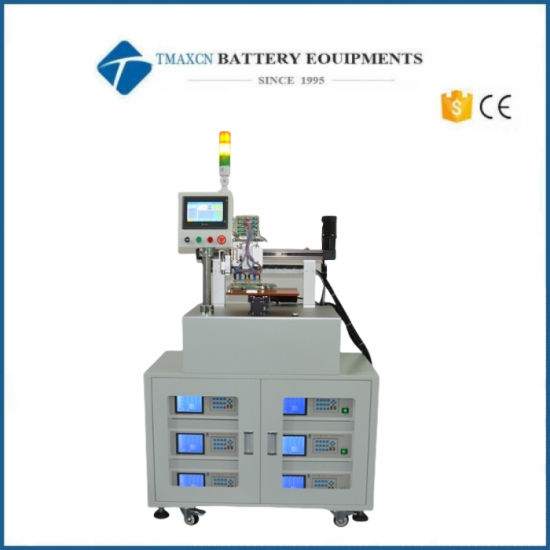

Semi-Automatic Protection Board BMS Tester
Model Number:
TMAX-1-6-PBTS/PBTS(MCompliance:
CE CertifiedWarranty:
One year limited warranty and lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
30 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
10/16/20/24 Series Protection Board BMS Test SystemNext:
Fully Automatic Protection Board BMS Tester

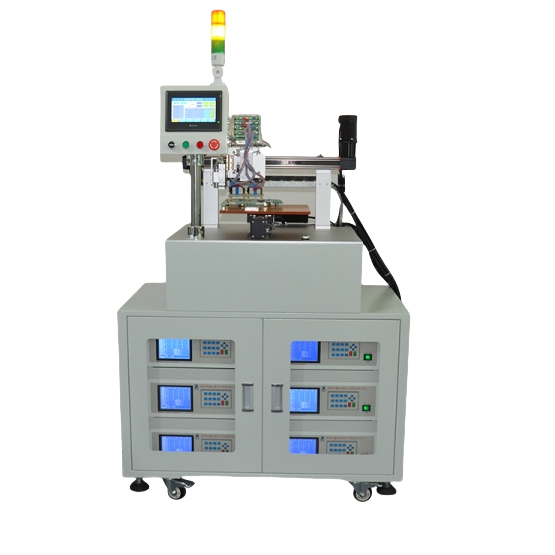

Semi-Automatic Protection Board BMS Tester
Ⅰ、Introduction
The semi-automatic testing platform is equipped with 1-6 PBTS/PBTS (M) protection board testers. Customers can replace the testing platform fixtures to achieve a single person board loading, start testing, automatically mark error points on the platform after testing is completed, and manually take and replace the board cycle testing process. It can easily achieve the effect of single person control of 20 protective board testers, saving labor and ensuring detection accuracy.
Ⅱ、Product Description and Parameters
Assembly size |
Test scope |
Supports maximum board width |
300mm |
Supports maximum board length |
300mm |
Support maximum number of board rows |
1-10 |
Support maximum number of board columns |
1-10 |
Customized splicing for special sizes |
|
Ⅲ、Equipment parameter description
Item |
Test scope |
Resolution ratio |
Device channel |
1-6 optional |
|
Test string count |
1-24 optional |
|
Reference voltage |
0.5-5V adjustable |
|
Overcharge protection voltage |
0.5-5V |
1mV |
Overcharge protection released |
0.5-5V |
1mV |
Overdischarge protection voltage |
0.5-5V |
1mV |
Release of over discharge protection |
0.5-5V |
1mV |
Overcharge/Over discharge protection delay |
0-20S |
1ms |
Overdischarge current protection value |
3-60A |
0.1A |
Overcharge current protection value |
3-40A |
0.1A |
Overcurrent protection delay |
0-10S |
1ms |
Balanced opening voltage |
0.5-5V |
5mV |
Balanced opening current |
0-200mA |
1mA |
Self consumption |
0-500uA/0.5-200mA |
1uA/1mA |
Loop resistance test |
0-200mΩ |
1mΩ |
Online settings |
USB-RS232 serial port |
|
