BMS Tester

Fully Automatic Protection Board BMS Tester

  • Model Number:

    TMAX-PBTS(A)04-06-60

  • Type:

    Automatic

  • Compliance:

    CE Certified

  • Warranty:

    One year limited warranty and lifetime support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    30 days
Product Details

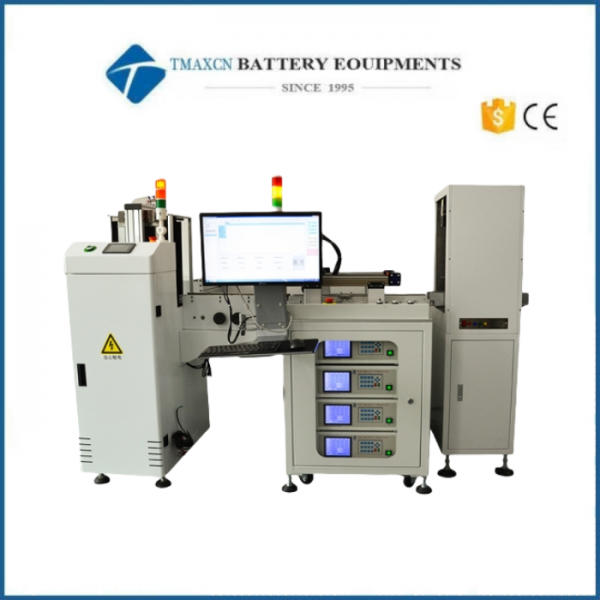

Fully Automatic Protection Board BMS Tester



Ⅰ、Introduction

Applied to the automatic loading, testing, marking after testing, and automatic unmanned testing process of protective board assembly, the equipment includes three parts: loading machine, testing automation platform, and collecting machine.

Board loading machine: compatible with market standard board loading machines;

Test automation platform: 1-4 PBTS (M) protection board tests+automation platform;

Plate harvester: Adapted to market standard plate harvesters.


Ⅱ、Equipment environmental requirements and technical parameters

2.1 Power supply: AC voltage 220V ± 10%, frequency: 50Hz ± 10%;

2.2 Environmental temperature: -10~45 ℃;

2.3 The environment should be free from strong vibrations, corrosive gases, and flammable and explosive gases.


Product model

PBTS (A) 04-06-60 Protection Board Tester

Basic function

Internal resistance test



Individual overcharging and discharging voltage



Single cell overcharge and discharge recovery voltage



Overcharge/Over discharge protection delay



Charging/discharging protection current



Charge discharge overcurrent delay



Balanced current and balanced opening voltage testing

Unique test items

It can support simultaneous loading of two components to improve testing efficiency



Equipment can be tested repeatedly to avoid false testing caused by poor contact of fixtures



Test qualified mark+test error mark



Test panel statistics, monitor test output and pass rate statistics

Protection board type

Tested ternary materials, lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, titanium oxide and other lithium battery protection boards

Ⅲ、Test assembly parameters

Assembly size

Start waiting test bit

Prohibit waiting for test bit

Board width

80mm-230mm

80mm-230mm

Board length

0mm-180mm

0mm-300mm

Number of board rows

1-10

1-10

Number of board

column

1-10

1-10

Support customized special size splicing



Ⅳ、Equipment parameter description

Project type

Test scope

Resolution ratio

Device channel

1-4



Test string count

1-6



Reference voltage

0.5-5V

1mV

Overcharge protection voltage

0.5-5V

1mV

Overcharge protection released

0.5-5V

1mV

Overdischarge protection voltage

0.5-5V

1mV

Release of over discharge protection

0.5-5V

1mV

Overcharge/Over discharge protection delay

0-20S

1ms

Overdischarge current protection value

3-60A

0.1A

Overcharge current protection value

3-40A

0.1A

Overcurrent protection delay

0-10S

1ms

Balanced opening voltage

0.5-5V

5mV

Balanced opening current

0-200mA

1mA

Self consumption

0-500uA/0.5-200mA

1uA/1mA

Loop resistance test

0-200mΩ

1mΩ

Online settings

USB-RS232 serial port







              Full BMS Tester
