Roll to Roll System

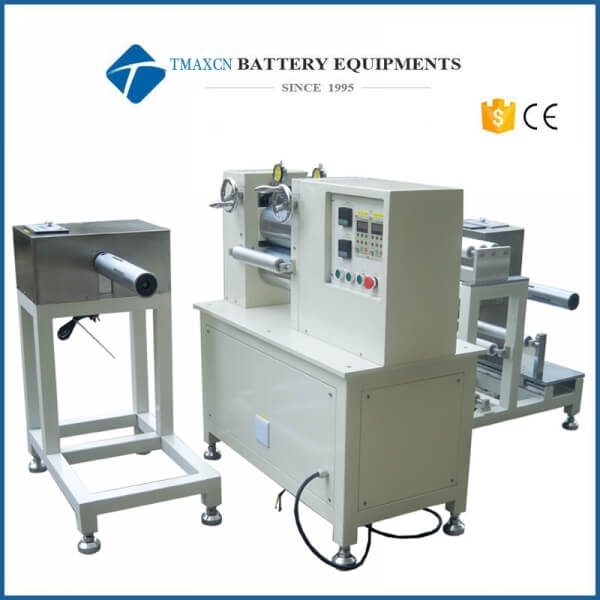

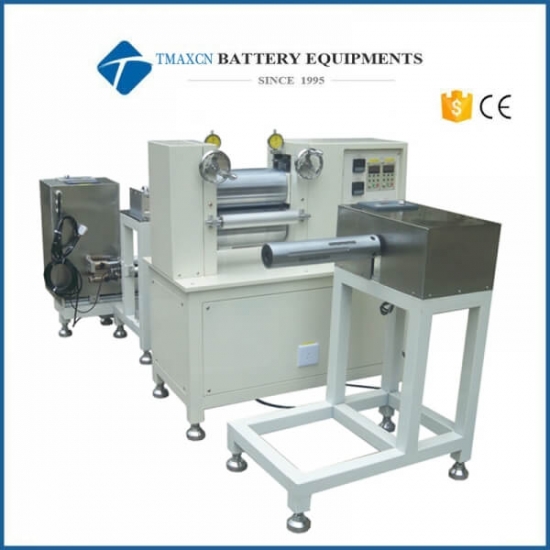

Roll To Roll System Rolling Press Machine Upto 200 Mm Width

  • Model Number:

    TMAX-Roll200
  • Dimension(L*W*H):

    200mm(W)
  • Net Weight:

    350 kg
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    5 days
Product Details

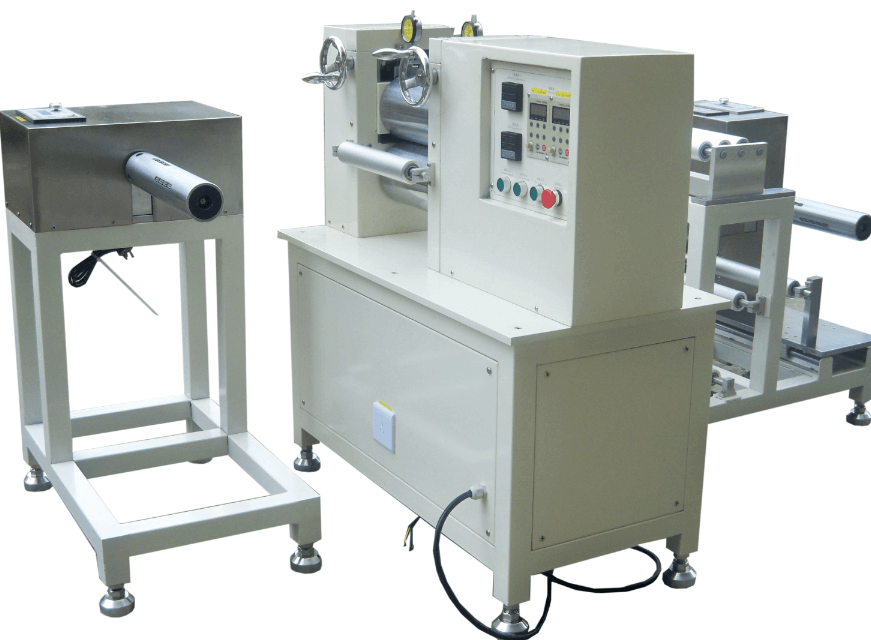

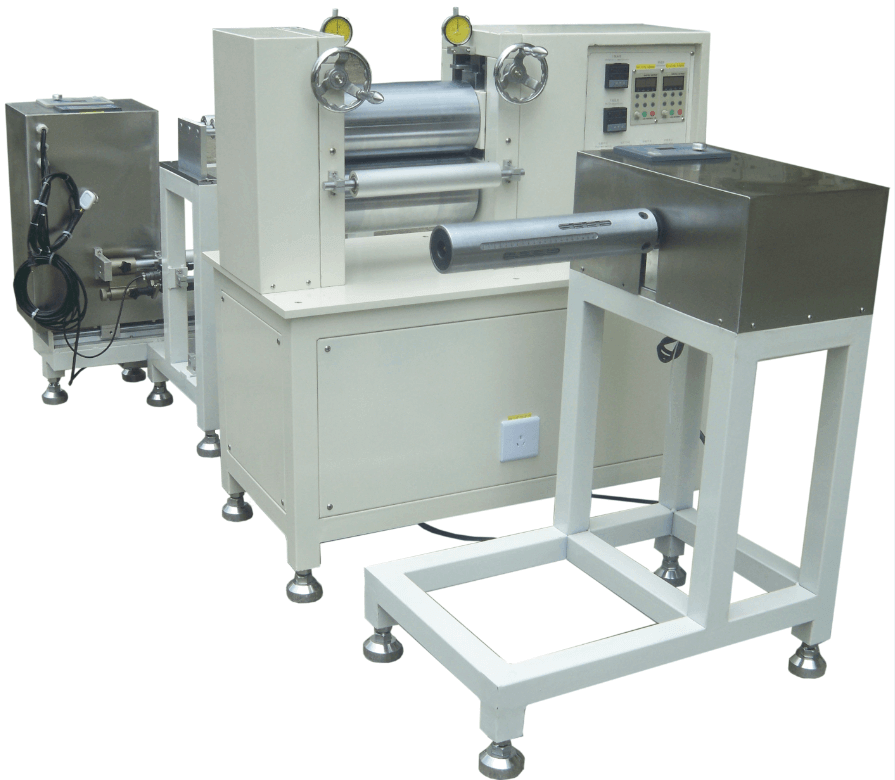

Roll To Roll System Rolling Press Machine Upto 200 Mm Width



TMAX-roll250  is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials less than 250mm wide. It enables the automatic R2R film calendering on


SPECIFICATIONS:

Working Voltage

208 - 240 VAC, 50/60Hz, Single Phase

110V -220V AC Power plug is not included

Max. Power Consumption

300W

Front Panel & Tension Control

Infinite switch for various tension control 0~20N

Tension adjustable torque motor for active reeling

Friction resistant passive unreeling

Motor Type

The use of brushless motor ensures no sparking in the Ar gas environment

Reeling Width

< 200mm width for flexible substrate material

Traverse Speed

The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min

Roller's O.D

3 inches

Reeling/Unreeling Roll Diameter

Max. 300mm

Compliance

CE certified

Warranty

Two years limited warranty with lifetime support

Net Weight

350kg
