Electric press Machine

Lithium Battery 100C High Temperature Lab Heat Roller Press Machine

  • Model Number:

    TMAX-GY1
  • Dimension(L*W*H):

    Diameter 100/200
  • Net Weight:

    110kg
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

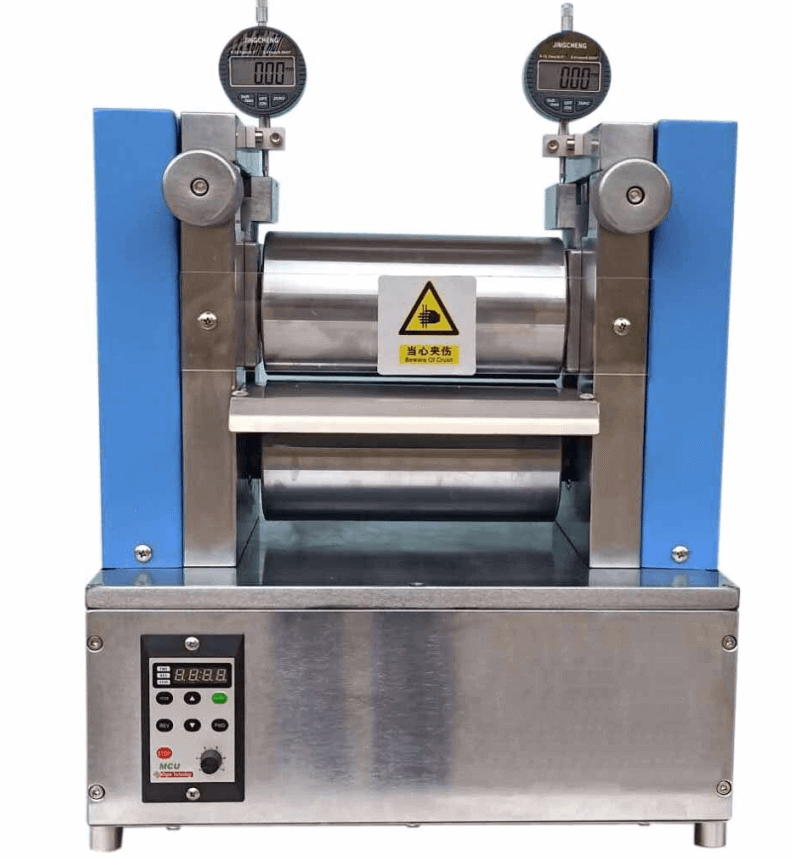

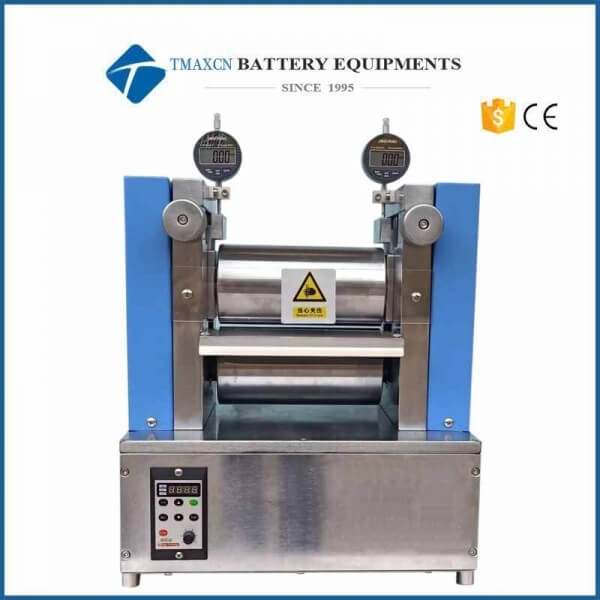

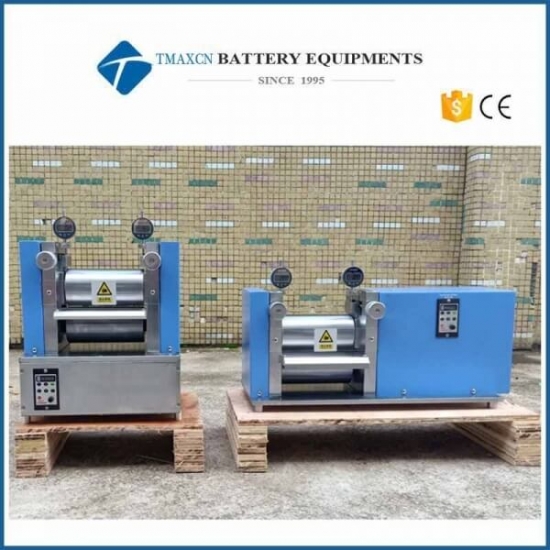

 Lithium Battery 100C High Temperature Lab Heat Roller Press Machine


1. TMAX-heat100C is compact Hot Rolling Cylinder Press with max. working temperature of 100°C, which is designed for preparing battery electrode for both inside or outside glove-box.  High torgue DC moter is Ar gas compatible.   It serves well in the application such as increasing active material density of the electrode in Li-ion batteries research after coating. It has a pair of steel rollers with a heating capacity of 100°C max.

2. TMAX-heat100C is equipped with 24V DC motor for a safe operation under Ar gas environment.


We will also constantly developing heat calender for you!

SPECIFICATIONS:

Model

 JS100

 JS150

 JS200

  JS300

  JS400

Roller Size

100mm(Dia.) x 100mm(W)

100mm(Dia.) x 150mm(W)

100mm(Dia.) x 200mm(W)

100mm(Dia.) x 300mm(W)

100mm(Dia.) x 400mm(W)

Effective Cylinder Width

100mm-200mm  It can be customized

Product Thickness

0~1.8 mm adjustable   It can be customized

Dial Gauge Accuracy

0.01mm

Minimum Thickness

Depending on the electrode's material and thickness, typically:
A 0.16mm thick electrode coated on copper can be pressed into a minimum thickness of 0.1 mm
A 0.06mm thick electrode coated on copper can be pressed into a minimum thickness of 0.04 mm
A 0.33mm thick silver/gold can be pressed into a minimum thickness of 0.03 mm

Heating Temperature

100°C maximum
Recommended Heating Rate: 1.3°C/minute
Power of Heating Element: 700W
Temperature Control :
Precision temperature controller with +/-1°C Accuracy

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

Roller

1. Roller diameter tolerance: 0.004mm
2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
3. Rolling speed: 0~60 mm /sec

Roller Surface Hardness

62 HRC
Never roll materials with hardness > 50HRC

Compliance

CE Certificate

Warranty

 Two Years limited warranty with lifetime support

Warnings

1. Do not touch the surface of the rolling part of the machine when the rollers are heated up or running.
2. Never roll materials with hardness > 50HRC
3. In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
4. Clean roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion.
5. This rolling machine can be used under Ar gas.
