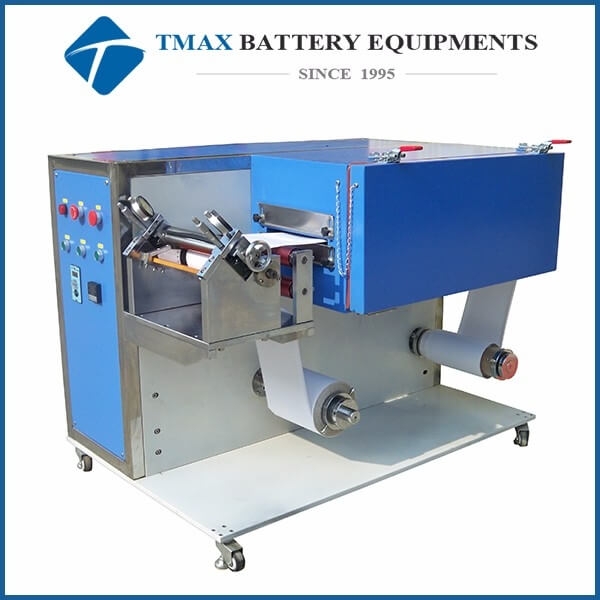

Roll to Roll Continuous Electrode Coater for Coating Battery Electrode Sheets
Model Number:
TMAX-TB300Net Weight:
400 kg (882 lbs)Compliance:
CE CertifiedWarranty:
One-year warranty and lifetime maintenancePayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
200*300 mm Electrode Roller Press Machine for 18650 Battery ResearchNext:
5V5A 18650 Li Ion Battery Discharge Tester With 512 Channel

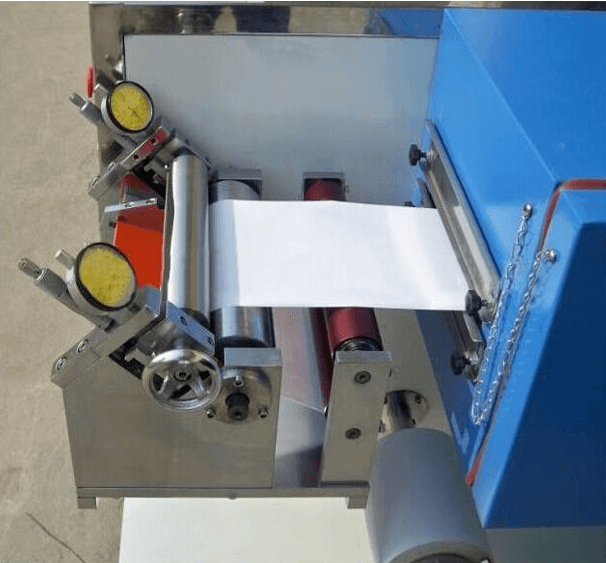

Roll to Roll Continuous Electrode Coater for Coating Battery Electrode Sheets
Overview of laboratory coating machine equipment
Laboratory roll to roll coating machine is a new laboratory instrument developed in recent years. It is a successful innovation combining electrical control and mechanical organic. In the field of coating production, it can save a lot of raw materials and improve production technology. The key is to greatly improve the reproducibility of coating on the basis of experiments. It is specially designed and manufactured for the research and development and material inspection of battery materials in universities, research institutes and enterprise laboratories.
The equipment is mainly suitable for the coating process of positive and negative electrodes of lithium iron phosphate, lithium cobalt oxide and lithium manganate.
Specifications:
The thickness of the running substrate |
aluminum foil 11 ~ 30um; copper foil 8 ~ 30um; |
The maximum width of coating |
280mm |
The maximum speed of mechanical transport |
5m / min; Speed accuracy ± 0.1m / min |
Coating speed |
>5m/min |
Suitable for slurry viscosity |
1500~15000 Cps Suitable for coating single-sided dry thickness 30~200μm |
Coating accuracy |
dry and thick double-sided precision error : <±0.004mm; dry thickness single-sided precision <±0.002mm |
Coating alignment error on the front and back sides |
<±0.5mm Average length error ≤±0.5mm |
Coating roller accuracy |
<±0.001mm, scraper is comma knife |
Core diameter |
3 inch shaft |
Oven temperature control accuracy |
< ± 3 ° C, drying oven temperature independent PID adjustable |
Power |
5.5 (KW) |
Coating method |
continuous coating |
Can move |
with 4 universal wheels |
The weight |
450KG |
