Roller Press Machine

200*300 mm Electrode Roller Press Machine for 18650 Battery Research

  • Model Number:

    TMAX-GYJ-200-300
  • Dimension(L*W*H):

    1050 (L)X500(W)X1060(H)mm
  • Net Weight:

    approx 320kg
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

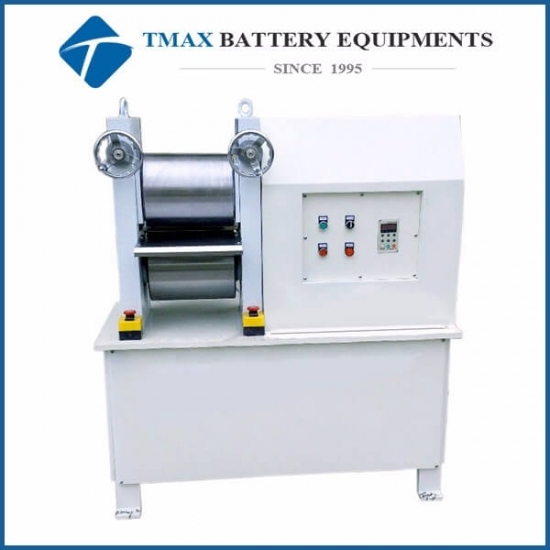

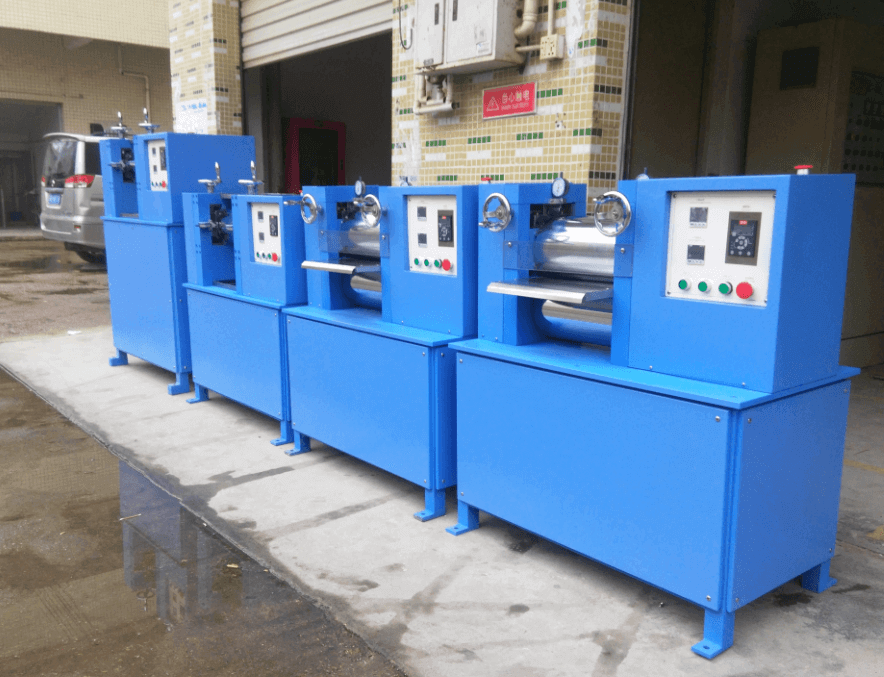

200*300 mm Electrode Roller Press Machine for 18650 Battery Research


The roller is a UL/CSA ready electric rolling press with variable speed 24DC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers and is an ideal rolling press for preparing electrode sheet for Li-Ion batteries research after coating and drying.  Discover the best electrode press here.

Specifications:

Roller Dimensions

TMAX-GYJ-200-300   200mm(Dia.) x 300mm(W)

Working Voltage

110V - 240V AC, 50/60Hz, automatic switch for worldwide use

Structure

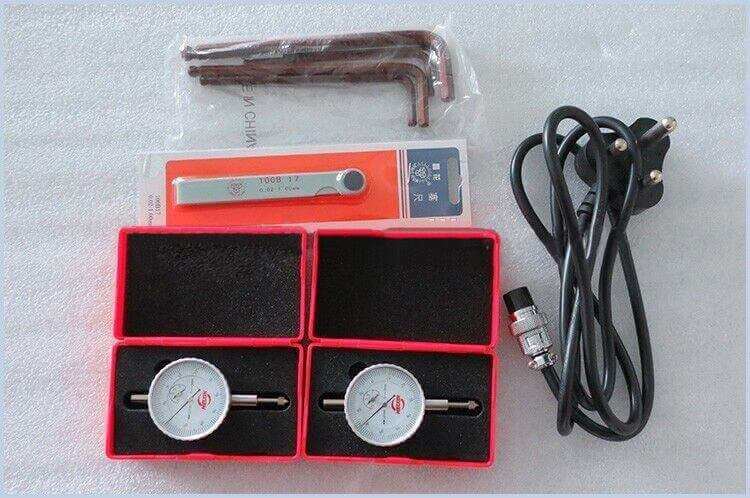

Dual micrometer for accurate thickness adjustment in the range 0 - 3 mm Maximum

Roller

2. Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating

3. Rolling Speed: 0-108mm/s adjustable

4.It can be 200°C maximum 5. two independent temperature controllers, enable dual-zone temperature control for the upper and lower rollers at the same time.

Roller Surface Hardness

Never roll materials with hardness > 50HRC

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Warnings

5. This rolling machine can be used under Ar gas.



heat roller



Rolling Press Machine

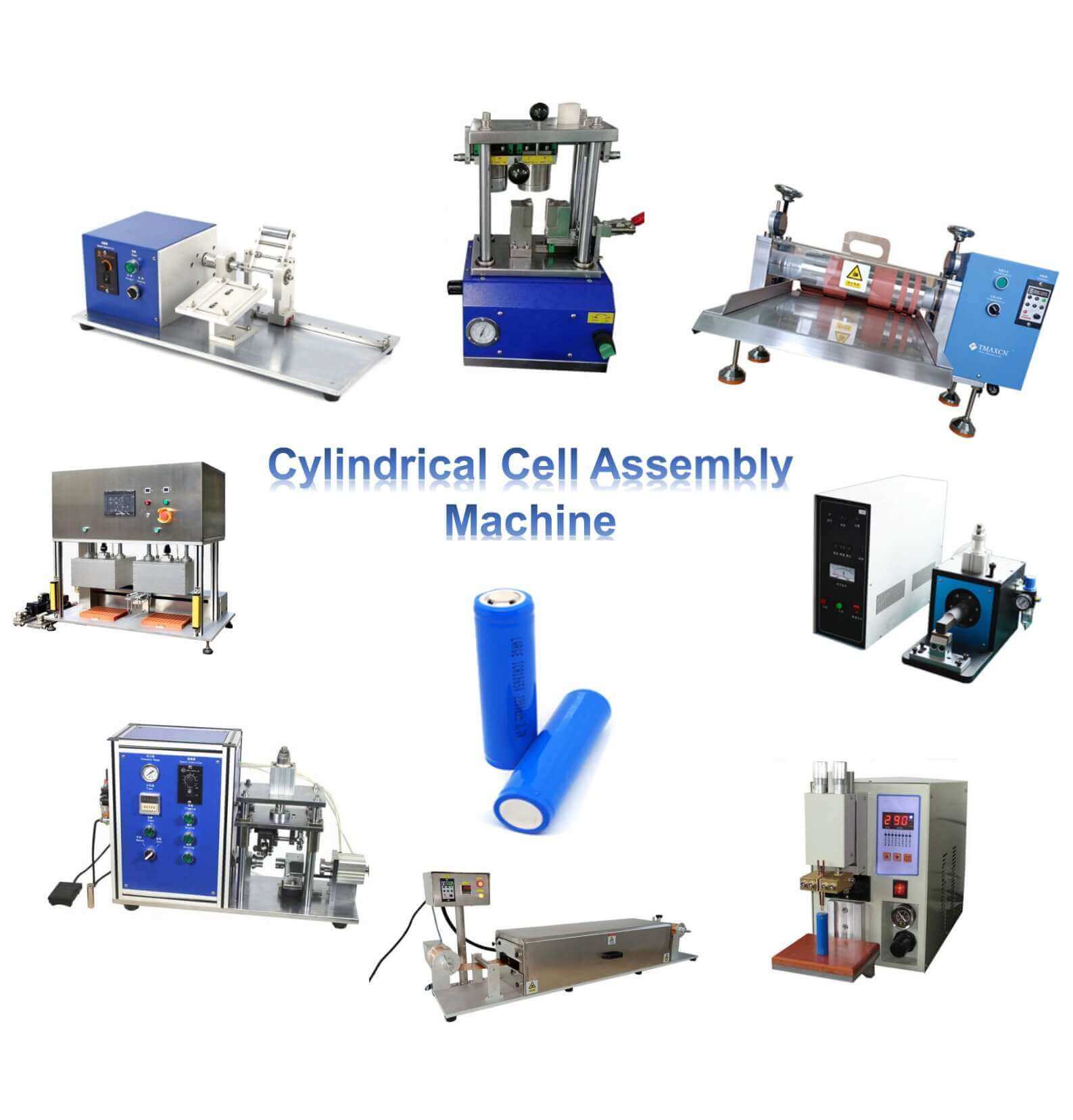

Cylindrical Cell Preparation
