Electric Crimping Machine

Pressure Adjustable Electric Crimping Machine for CR20XX Button Cells(NRTL Ready & Ar Gas Compatible)- MSK-E110

  • Model Number:

    MSK-E110
  • Dimension(L*W*H):

    228 x 176 x 310mm
  • Net Weight:

    30kg
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

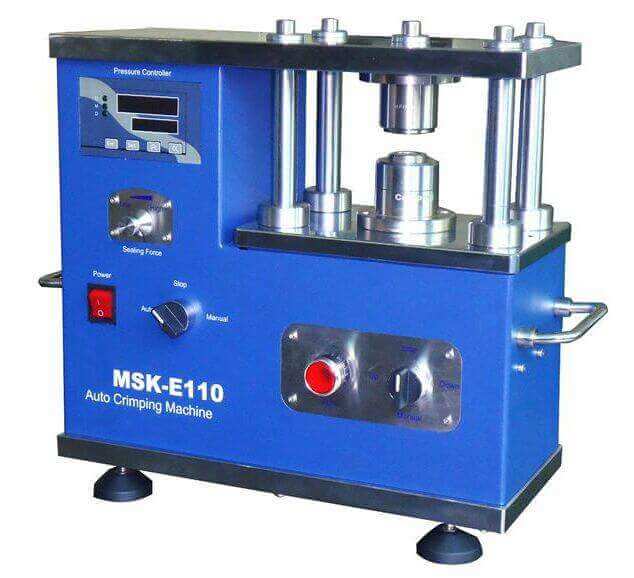

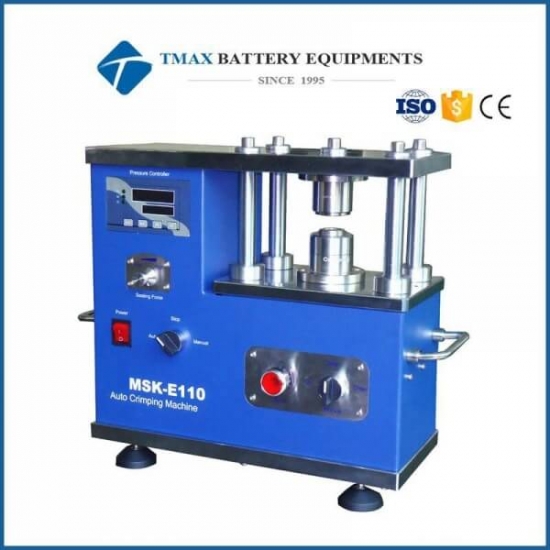

Pressure Adjustable Electric Crimping Machine for CR20XX Button Cells(NRTL Ready & Ar Gas Compatible)- MSK-E110


MSK-E110 is a CE Certified auto crimper for various types of coin cells, such as CR2016, CR2025 and CR2032. It is an ideal tool to be operated both inside and outside of a glove box. The pressure applied on coin cells is adjustable in order to meet various sealing requirements.  (updated from 8/28/2015. DC motor voltage is reduced to 60VDC, which can be used under Ar gas ). We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!


SPECIFICATIONS:

Voltage

Single Phase, 50/60Hz , AC 110V or 220V ±10%  Selectable  by built-in switch

Power Consumption

<= 50W

Die Set Material

Hardened Steel

Electric Motor

DC 60V, which can be used under Ar gas

Crimping Die & Compatibility

  • Assembling dies for CR2016, CR2025 & CR2032 coin cells
  • Optional: Crimping die for CR2450 coin cell is available upon request, please contact us for details
  • 100 pcs Coin cell cases are included in the package for testing and immediate use
  • Spare die and other size coin cell die ( Cr1200, CR2450 etc  are available by click picture below

Assembling Preasure

  • A load cell is built in the machine with digital display
  • Crimping pressure is adjustable according to cell size
  • Recommended assembling pressure for CR20XX coin cells is 500kg~800kg;
  • Max. pressure can be applied: 1200kg

Measurement Accuracy

±0.5%FS

Structure

Heavy Duty Chrome Steel Platform

Product Dimensions

228mm(L) x 176mm(W) x 310mm(H)

Compliance

CE Certified

Warranty

One Year limited warranty with lifetime support (Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)

Application Notes

  • Electrolytes are highly corrosive materials, and therefore the dies must be cleaned with alcohol after each use to avoid corrosion and deformation.
  • The best crimper with the most pressure consistent is compresses air driven crimper, please click picture below to see specs, which can be used under Ar gas
  • Please use vacuum pen to pick round electrode disk to make assembling at easy.

Net Weight

30 kg
