precision disc cutter

Compact & Precision Disc Cutter with Standard 16, 19, 20 (Optional Sizes of 3 - 24mm Available) Diameter Cutting Die

  • Model Number:

    TMAX-T-10
  • Dimension(L*W*H):

    209x 120x 394mm
  • Net Weight:

    10 kg (22 lbs)
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Compact & Precision Disc Cutter with Standard 16, 19, 20 (Optional Sizes of 3 - 24mm Available) Diameter Cutting Die

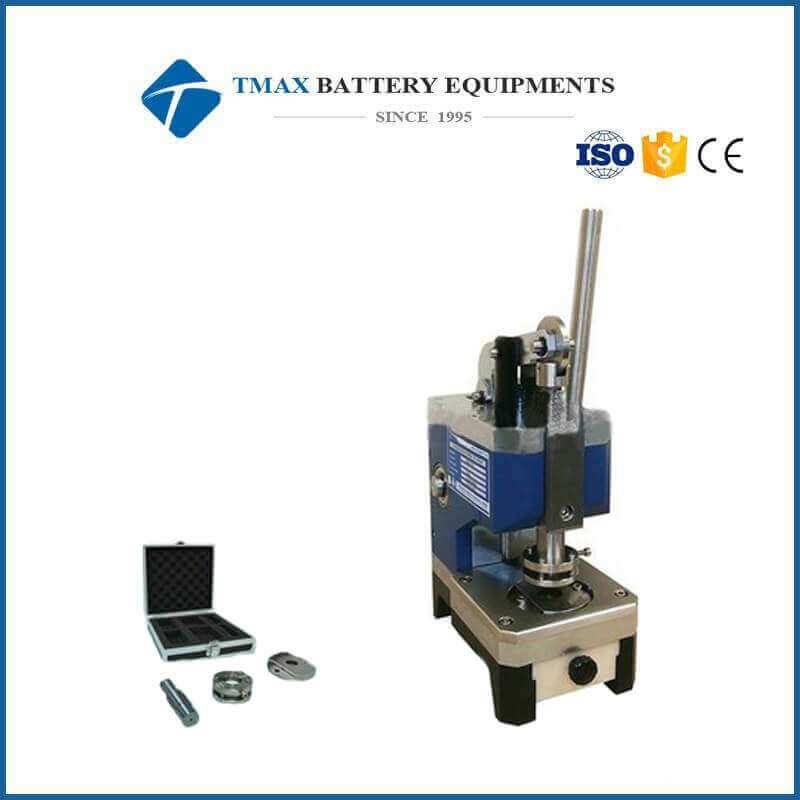

T-10 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil (< 0.5 mm) or separator film (<30um).  The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches as well as TEM sample preparation. We are dedicated to providing quality coin cell disc punching for you.


ITEM

Data

Structure

Major structural material: Cr Plated Steel

Cutting Die

16, 19, and 20mm precision dies are included in standard package

Optional 3 - 24mm customized dies are available upon request

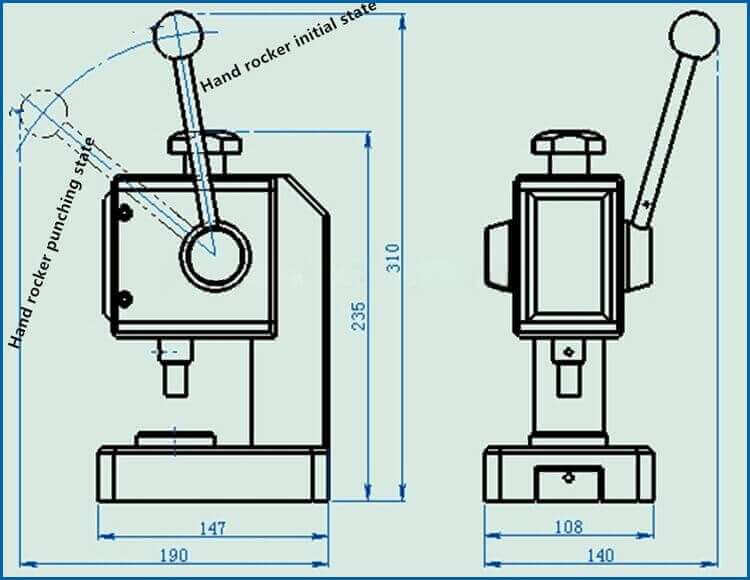

Product Dimensions

209mm(L) x 120mm(W) x 394mm(H)

Compact size which can be put into glovebox through air lock chamber

Warranty

One year limited manufacture warranty with lifetime support

Application Notes

If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies:

16mm (for negative side case, which is 16.5mm in diameter)

19mm (for positive side case, which is 20mm in diameter)
20 mm (for separator to fully separate the electrodes in both negative and positive cases)
For CR2450 coin cells, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die can be used for cutting either electrode discs or separator discs (the 24mm cutting die can be purchased as optional die

Separator discs must be large enough to fully separate the cathode and anode electrodes to avoid short-circuit inside the coin cells

Net Weight

10 kg (22 lbs)
