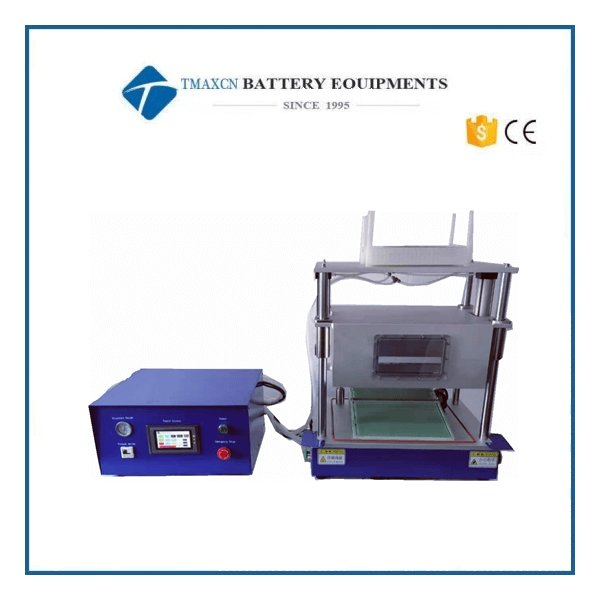

Pouch Cell 3 in 1 Vacuum Sealing Machine For Battery Making

Introduction

This equipment is mainly suitable for pre-sealing and standing of soft-packaged lithium batteries

Main feature

*The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;

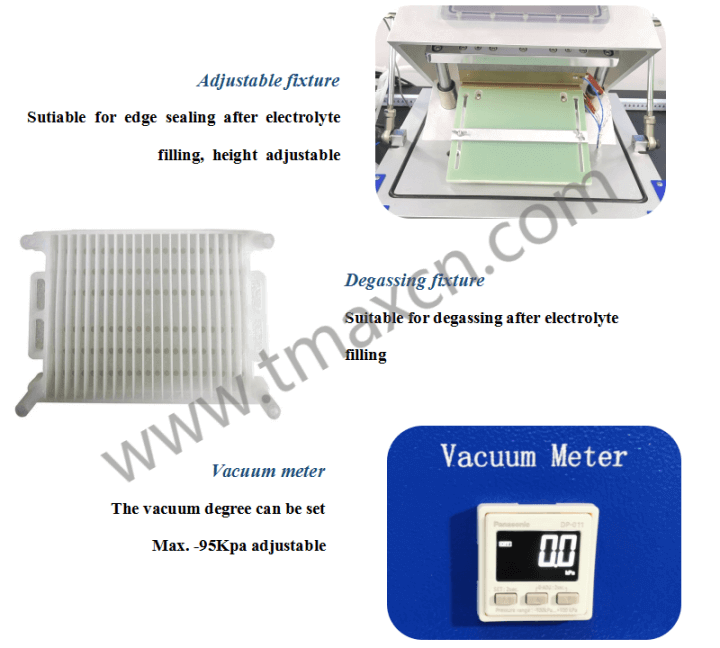

*Various functions such as vacuum pre-sealing and vacuum diffusion and degassing;

*The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;

*The upper and lower heads are driven by air cylinders and guided by two linear guide sleeves, which are flexible up and down and guided accurately

Ensure the parallelism requirements of the product after edge sealing;

* Through the perspective window, you can observe the changes in the cavity while working.

*The cover cavity is driven by an air cylinder and guided by a rotating guide sleeve, which can move up and down flexibly, and the guiding is accurate to ensure the product's tightness requirements.

*It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

*The main unit and the control box are separated design, so that the machine can work in the glove box or on the assembly line.

*Easy to operate, beautiful appearance, small size and light weight.

Technical parameter

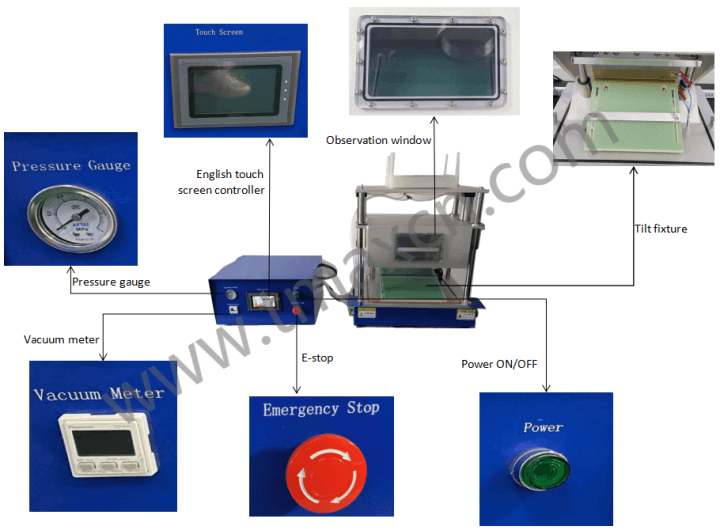

Equipment composition

This machine consists of the following parts

1. Mechanical part: lower template mechanism, vacuum chamber mechanism, driving mechanism, guide mechanism, base mechanism, electric box control part, etc.

2. Electrical part: pneumatic components, solid state relays, solenoid valves, photoelectric switches, etc.
