Battery Making Dry Room

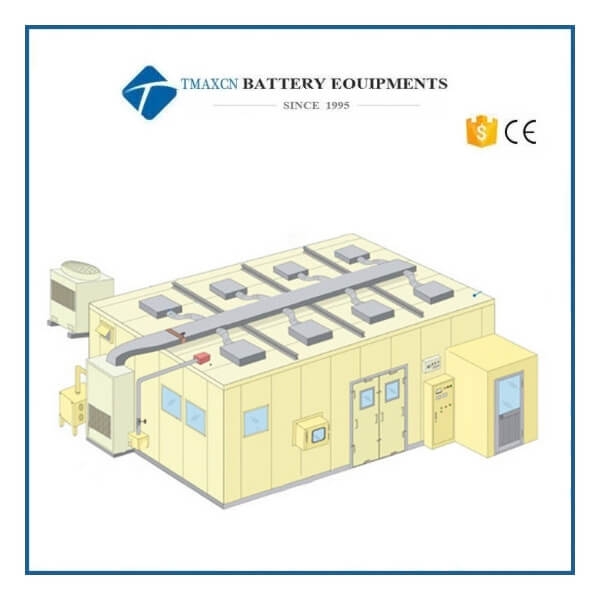

Customized Dry Room For Battery Making

  • Model Number:

    TMAX-IDR

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

Customized Dry Room For Battery Making


1.1. Purification requirements of each section:

Dehumidification area

Area(㎡)

Height(m)

Volume(㎥)

Temperature(℃)

Dew point(℃)

Person

Dry room

18

2.1

37.8

25±3

≤-40

3



1.2 Site requirements

1. The user provides water, electricity and air source to the unit connection as required. The user is responsible for the primary power distribution to the distribution cabinet of the dehumidification unit, ceiling air conditioning unit, refrigeration unit and water pump. The tap water is connected to the make-up point of the equipment, and the pipeline (supply air, exhaust air, return air, chilled cooling water) is connected to the interface of the dehumidification air conditioning unit and the water chiller.

2. The user is responsible for the production of cement foundation of the equipment.


2. List of dehumidification and temperature control equipment:

2.1 list of regional equipment specifications

NO.

Equipment name

Supply air volume(m³/h)

Unit model

Qty.

Area used

AHU-1

Rotary dehumidifier unit

3700

TMAX-3700SCH

1

Drying room


3. Calculation basis for selection design:

3.1. Design parameters of fresh air for users in summer: in order to improve the stability of the system, the outdoor design parameters are taken as the parameters of bad working conditions, the dry bulb temperature is 35 ℃, the relative wet bulb temperature is 75%, and the absolute moisture content is 27g / kg;

3.2. System load: light labor intensity produces heat (80-100w/h. person); the comprehensive heat load of the enclosure structure is calculated at 60-110 w/m2 according to the system layout and indoor heat source, with a height correction factor of 2%, equipment The heat load is calculated by 10%-20% of the installed power according to the type;

3.3. Humidity production: when the temperature is 23℃, the humidity production of personnel with light labor intensity is (80-100g/h.person); the ventilation and humidity load of the air-conditioned room is calculated according to the air-conditioning room's 0.1-0.2 air exchange permeability; return air The moisture penetration load is calculated based on the return air volume 1%-3% of the ventilation penetration volume; the ventilation moisture load of the low-humidity dry room is calculated based on the moisture production volume of 2-5g/m2 in the air-conditioned room;

3.4. System air volume: fresh air volume (20-50m3/h. person) and maintaining positive pressure in the room require 5-10 Pa in the drying room; ensure the humidity gradient of the drying system.


4. Unit selection parameter table and system flow chart:

4.1 air conditioning system selection design calculation table scheme:

1. Main equipment type selection design calculation table: (see the description of technical proposal for design basis)

No.

Regional classification

Constant temperature and humidity area

0

Dehumidification unit no

AHU-1

1

Name of workshop

Drying room

2

Area (M2)

18

3

Ceiling height (m)

2.1

4

Volume (M3)

37.8

5

Temperature and humidity requirements

T≤25℃  dew point≤-40℃

6

Infiltration load of ventilation system (g)

261

7

Enclosure heat load of drying room (W)

3102

8

Design air volume

3700

9

Equipment model

JD-3700SCH

10

Design ventilation rate

97.9

11

Design dehumidification capacity (g / h)

261

12

Design heat removal (W)

3102

13

Supply air temperature and dew point

13℃

14

Air volume

CMH

Fresh air volume (CMH)

600

Dehumidification air volume of runner

4200

Regeneration air volume (CMH)

500

Supply air volume (CMH)

3700

15

Equipment energy consumption

KW

 

Regenerative heating power (kw)

25

Regeneration fan power (kw)

0.75

Treatment fan power (kw)

3

Motor power of runner drive (kw)

0.13

Total power in summer (kw)

29

16

Cooling load (kw)

41.7

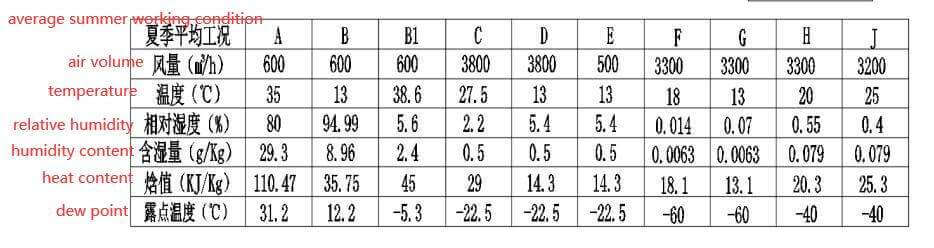

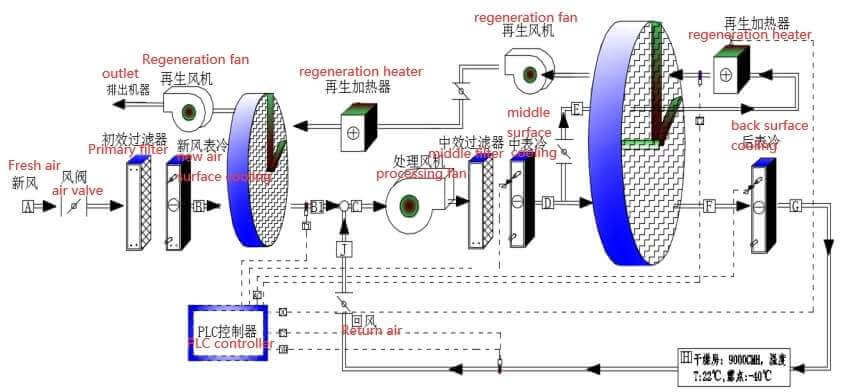

4.2. System flow chart:

AHU-1 selects the TMAX-3700SCH system flow chart of the runner dehumidification unit:

Note: The runner dehumidification unit is composed of: primary filter section, front stage cooling section, runner dehumidification section, rear cooling section, blower section, regeneration system, control system and refrigeration system.

dry room

dry room

6. Parts list

6.1. List of main components of the rotary dehumidification unit:

Unit parts

Material introduction

Brand

Specification

Imported dehumidification runner

Adopting Swedish PROFLUTE and American high-quality silica gel molecular sieve or molecular sieve composite runner; the runner has a hygroscopic agent sizing rate of up to 82%, strong moisture absorption capacity in a low temperature and low humidity environment, high temperature resistance strength, and long service life.

custom made

Front runner silica gel / rear runner silica gel molecular sieve

Unit box, frame

Adopting the internationally popular modular anti-cold bridge design, high-quality double-layer color steel plate filled with polyurethane one-time foaming and shaping. Aluminum alloy profile frame, beautiful appearance, compact, excellent temperature and humidity insulation effect, no condensation.

Yizhong Aluminum

Box board inner and outer board 0.5mm color steel plate / box board insulation layer 30mm polyurethane

Surface cooler

The use of seamless copper tubes to expand and connect the clear water film corrugated aluminum fins has high heat exchange efficiency, low air resistance, and durable and reliable use.

TMAX custom watch cooler (a set of fresh air/medium/rear cooler)

15.88 copper pipe*0.5mm

Regenerative electric heating tube

U-shaped winding sheet stainless steel electric heating rod

TMAX

2KW input power

filter

It can be washed repeatedly and has a long service life. One use one preparation

TMAX

Primary effect filter plate type G4/medium effect bag type F6

Centrifugal fan

Centrifugal fan, high efficiency, low vibration, low noise, stable and reliable performance, insulation class F, protection class IP54. With overheat protection device

Zhaoqing Detong or equivalent

6-35 series

Runner gear motor

Accurate gear engagement, no noise, long service life, with temperature control protection device.

Taiwan Dongli or equivalent

5IK series

Runner chain

Automatic deviation correction, automatic adjustment of tension

TMAX

/

Electrical control

The electric control adopts the original Siemens Schneider Electric. The system is equipped with multiple protections such as regenerative fan, runner motor, interlocking protection of runner stall and regenerative heating, and regenerative heating over-temperature protection; the cable is selected from the Jinlongyu brand. Integrated control, measurement, signal, protection, adjustment and other functions.

Kunlun Coast/Siemens

S7-200CN PLC/MCGS color display/3TB/F Siemens contactor/IC65 Schneider air switch

Internal structure

Cold rolled plate baking paint/spraying process production, corrosion resistance, aging resistance

/Schneider

2mm galvanized steel sheet baking paint

Bottom surface water receiving device

304 stainless steel plate

TMAX

2mm stainless steel

Water retaining device

Low resistance, light weight, corrosion resistance, aging resistance

TMAX

100mm hydrophobic wet curtain

Runner seal

The regeneration heating adopts VITRON high temperature resistant silicon fluorine rubber, and the circular arc seal of the runner adopts silicon rubber wear-resistant seal. The pressure difference between the treatment zone and the regeneration zone can reach 1200Pa to ensure the tightness.

TMAX

Red silicone sealing strip (12CMX2.3MM)

Unit chassis

14/6 channel steel welding, two asphalt paint spraying process

TMAX

14 / 6 channel steel
