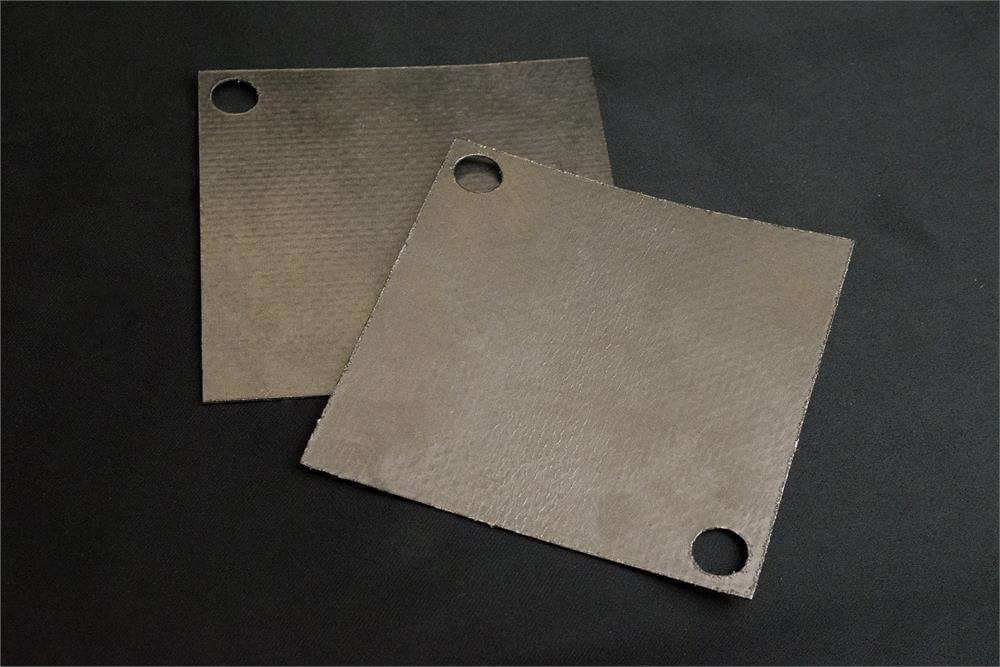

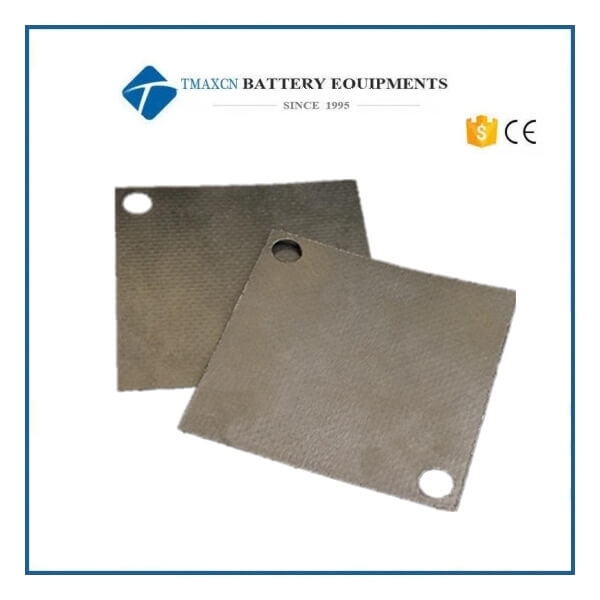

Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, 2pcs/Pack

Features

· High electrical conductivity, chemical resistance, and high mechanical strength for toughness required when cells are clamped and stacked.

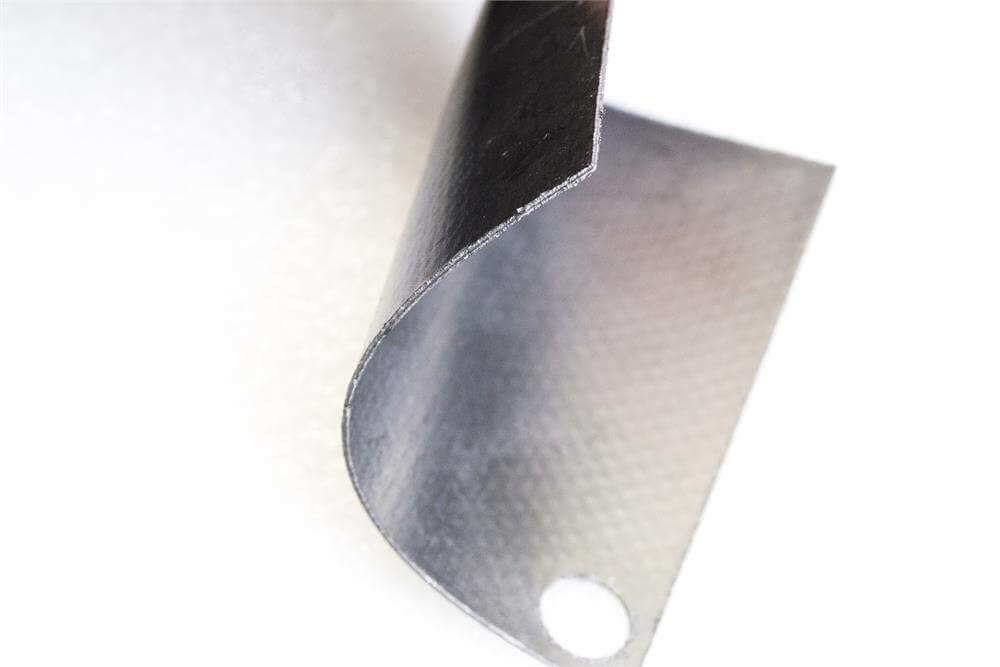

· These highly flexible plates (polymer composite based) have similar performance compared to conventional graphite plates BUT offer excellent resistance to breakage and have less defects.

· Only ~0.7mm in thickness, this helps minimize the volume and weight of cells when stacked (compared to graphite plates which are porous and brittle in nature; hence needs to be thick structurally).

Size

Two szes available (Please choose the correct plate size from product options above)

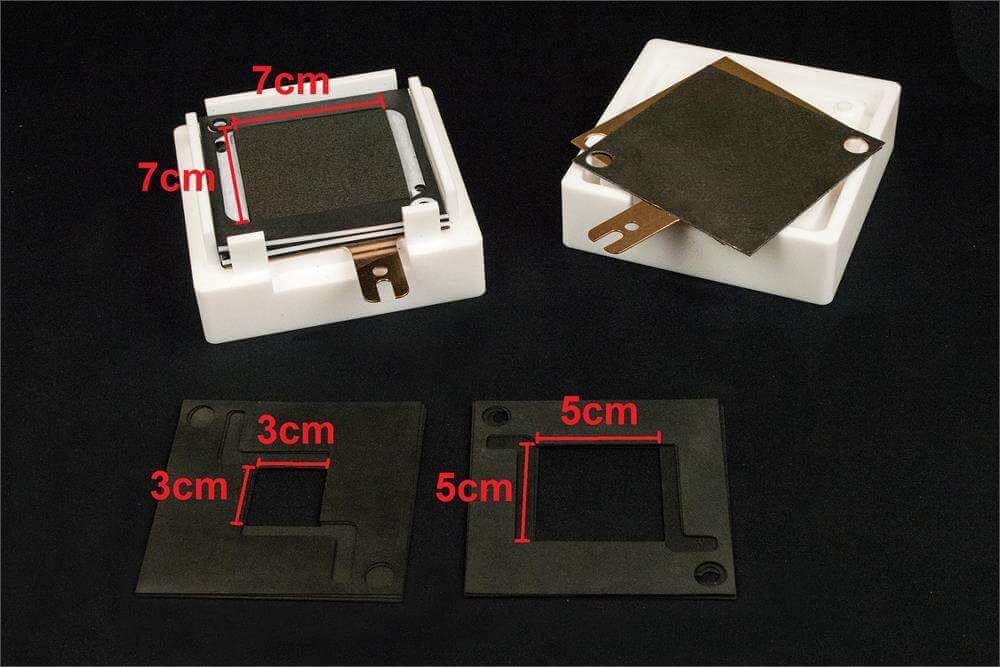

· 100mm x 100mm -- for flow cells that use 7x7 cm, 5x5 cm, and 3x3 cm reactive areas (please click right picture to verify)

· 60mm x 60mm -- for flow cells that use ONLY 3x3 cmreactive area (please click right picture to verify)

Application Note

Replacement of plates is recommended for every 5 tests or 50 hours of test time ( with immediate replacement if physical damage is present).
