Iron Foam

Open Cell Porous Iron Foam Fe Metal Foam 1mm to 20mm Thickness and PPI can be Customized

  • Model Number:

    TMAX-Iron-Foam5

  • Compliance:

    CE Certified

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    1 days
Product Details


Open Cell Porous Iron Foam Fe Metal Foam 1mm to 20mm Thickness and PPI can be Customized



Quantity Discount is Available: ＞5pcs, 15% OFF

Quantity Discount is Available: ＞10pcs, 25% OFF and Free Shipping

For more product information and ordering detail, please contact: David@tmaxcn.com


Introduction

Iron foam containing the foamed pores has a higher porosity and a larger pore size of up to 10 mm than the generally sintered porous metal.

1. Sound absorption: porous structure has a wide frequency absorption characteristics.

2. Sound insulation: through additional treatment, a high noise can be intercepted, and the sound insulation effect is good.
3. Electronic wave shielding: About 90dB electronic wave shielding.
4. Processability: it can cut, bend and simply stick.
5. Fire resistance: keep the shape stable, difficult to burn under high temperature, high temperature resistance.
6. Strong thermal conductivity.
7. It has good air permeability and filtration function, and the flow stability of gas and fluid is super strong.
8. High temperature resistance above 1100 ℃, uniform pore structure and fast heat transfer.


Specifications



Item

Producible specifications

Reference specifications

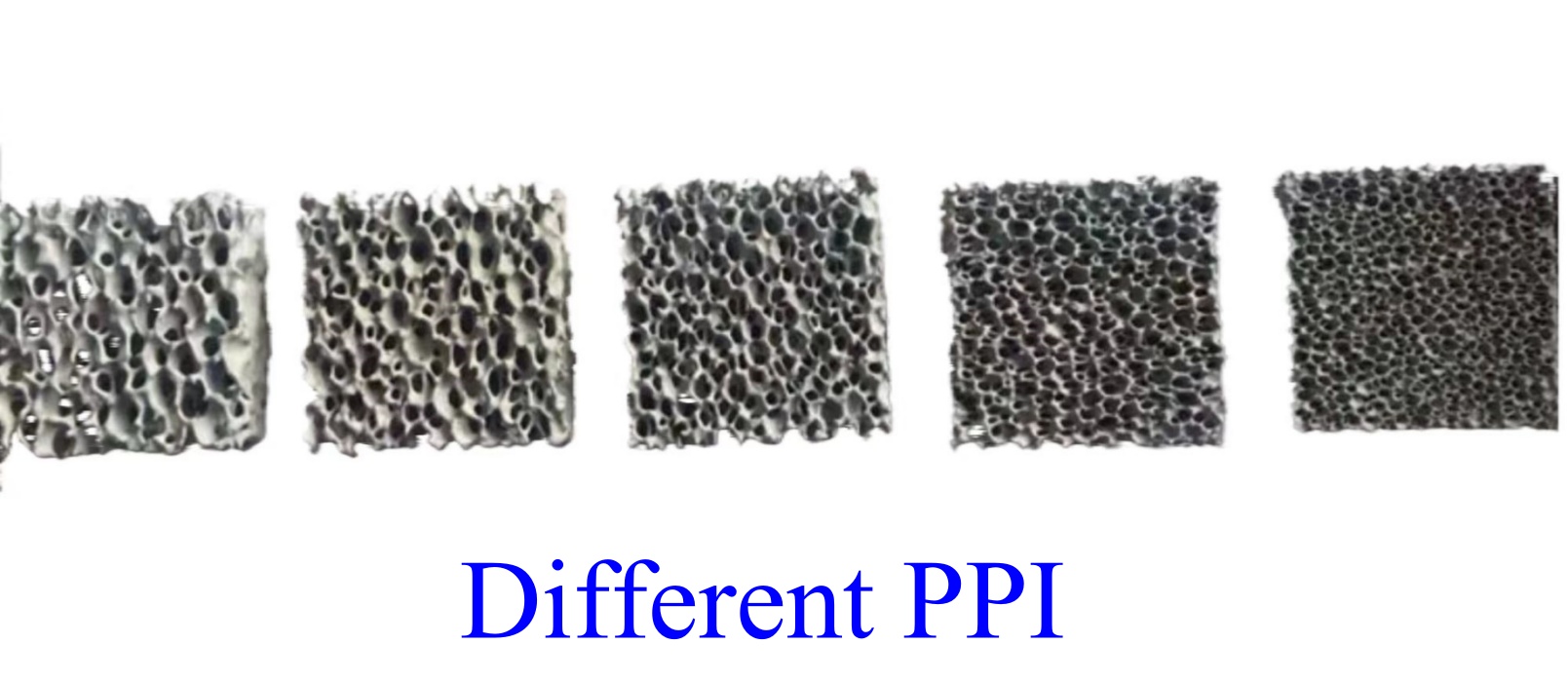

PPI

8-110(±2/5/10 ）

110±10

13±2

Surface density   (g/m2)

250-5000(±5% ）

380±25

2000±100

size （ mm)

20-1000(±0.5/1.0/2.0 ）

500±0.5

500±2

Appearance

Silver gray, without black spot, blind spot, through hole and crack

Chemical

Composition

Pure  Iron

(Fe):≤99.9%

(C):≤0.030%

(S):≤0.008%

(Si):0.005%

(Cu):≤0.005%


To customize various metal foams, please click the picture below for details：





Copper Foam



Nickel Foam

Ti Foam



Aluminum Foam


Iron Nickel Foam

Carbon Foam


Silver Foam

Stainless Steel Foam

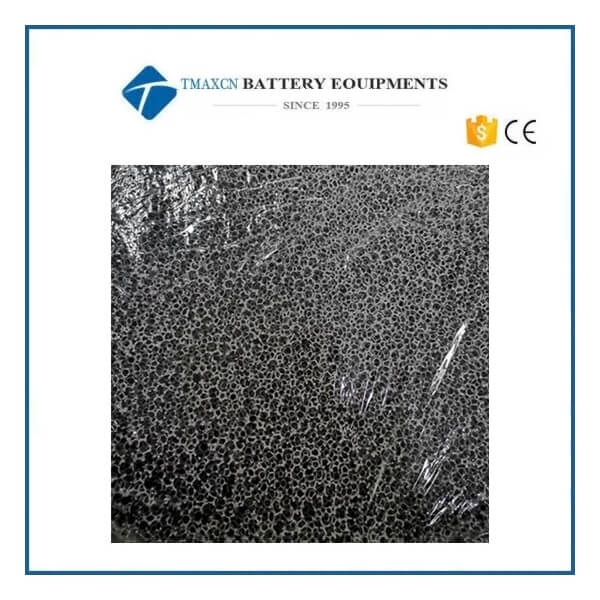

Iron foam

Fe Metal Foam

Iron foam

Iron foam
