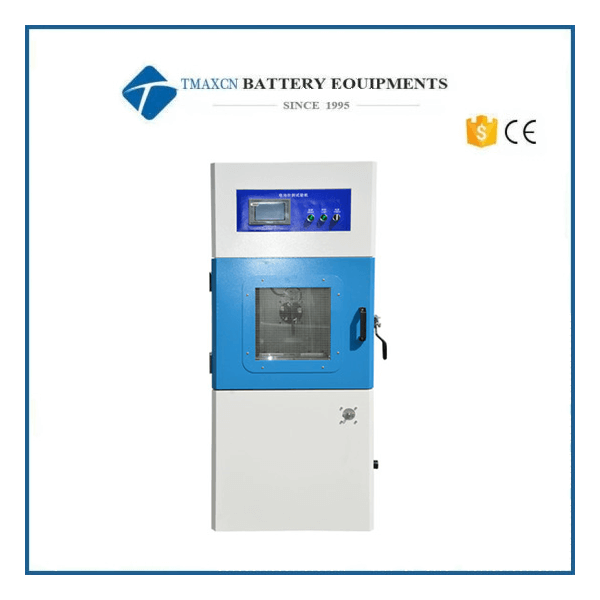

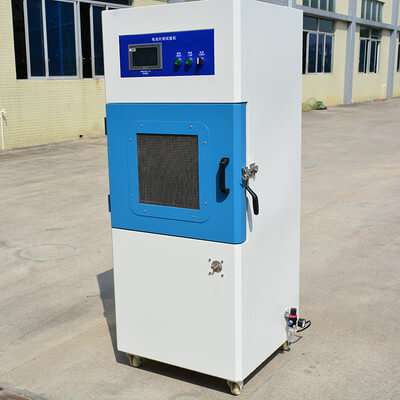

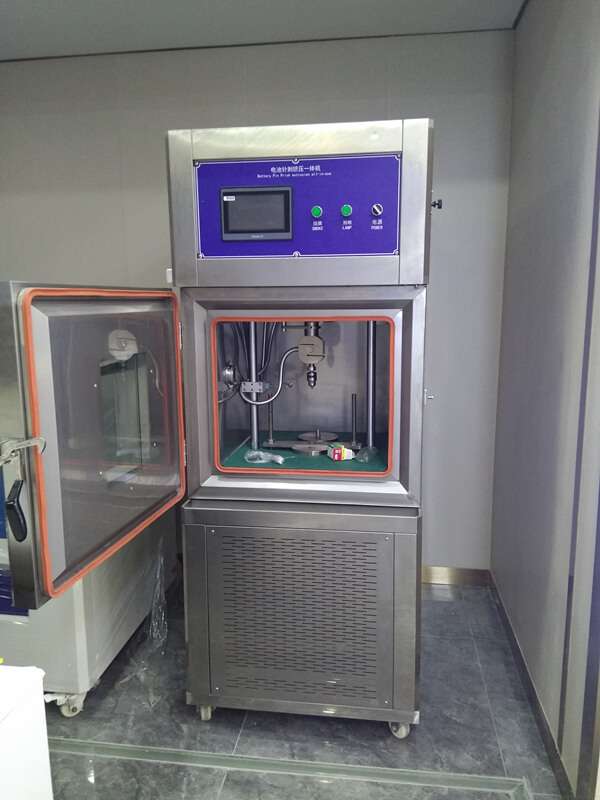

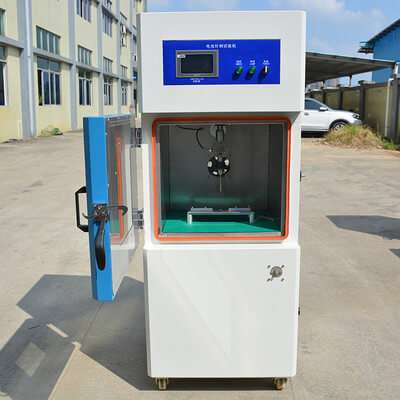

Nail Penetration Tester for Battery Safety Test
Model Number:
TMAX-NPTCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
5V100mA 8 Channel Battery Tester for Coin Cell Capacity Testing Coin Cell CyclerNext:
Tensile Strength Testing Machine
Nail Penetration Tester for Battery Safety Test
Feature
the test should be carried out at the ambient temperature of 20 ℃± 5 ℃. The battery connected with thermocouple (the contact of thermocouple is fixed on the large surface of battery) is placed in the fume hood, and a 2-8mm diameter stainless steel needle is used to pierce the center of the maximum surface of the battery at the speed of 10mm / s-40mm / s, and keep it for any time.
Applicable standards: MT/T 1051 SAE, QC/T473/744 and other test standards
Specifications
High temperature resistant steel needle |
ф2mm—ф8mm high temperature resistant steel needle, length 100mm |
Distance between needle tip and lower part |
200mm |
Clamping distance |
200mm |
Needling speed |
10-40mm/s, adjustable |
Needing force |
150~200kg |
Force display |
Pressure sensor, LCD display |
Travel distance |
200mm |
Driving mode |
Hydraulic drive |
Chamber features |
Fireproof, corrosion resistant and easy to clean. |
Chamber size |
520 * 500 * 445mm (W * H *D) |
Material of outer box |
Stainless steel |
Material of inner box |
Stainless steel box, high temperature resistance, corrosion resistance |
Power requirements |
220V/110V , 50HZ/60HZ |
